Product Description

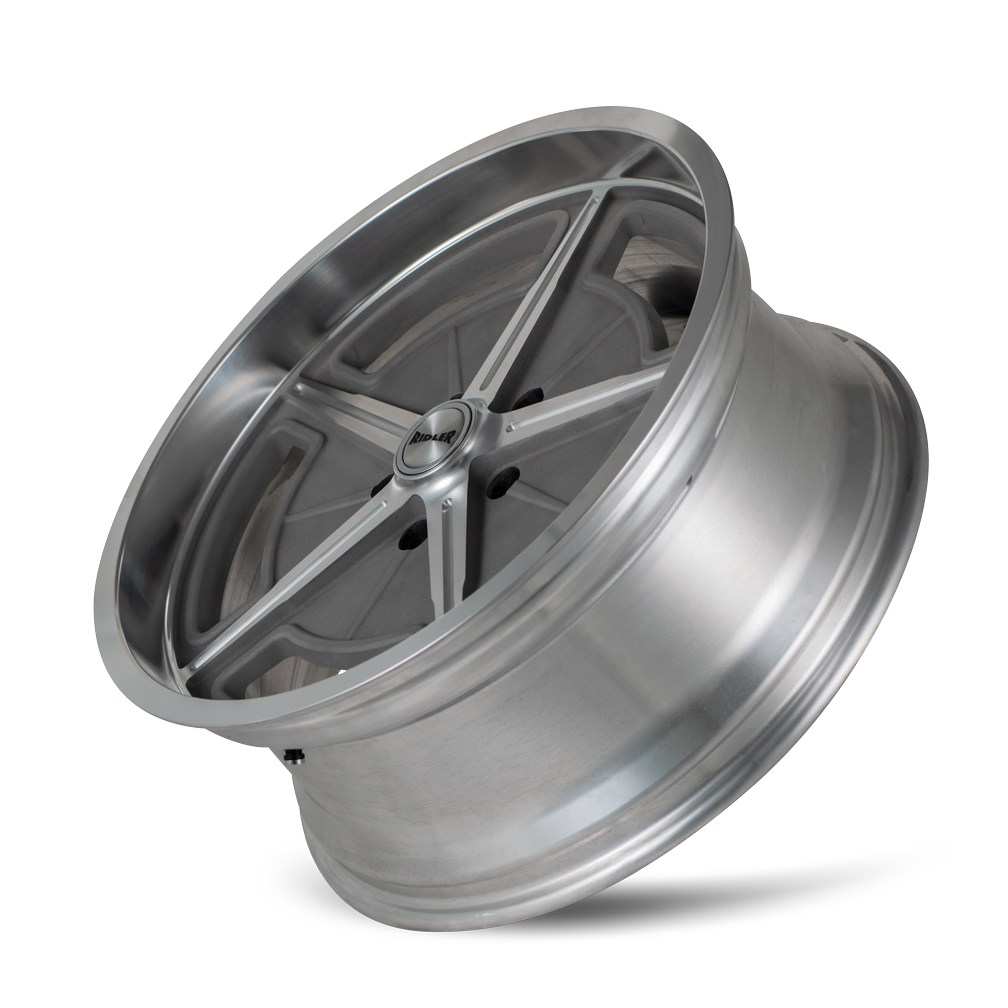

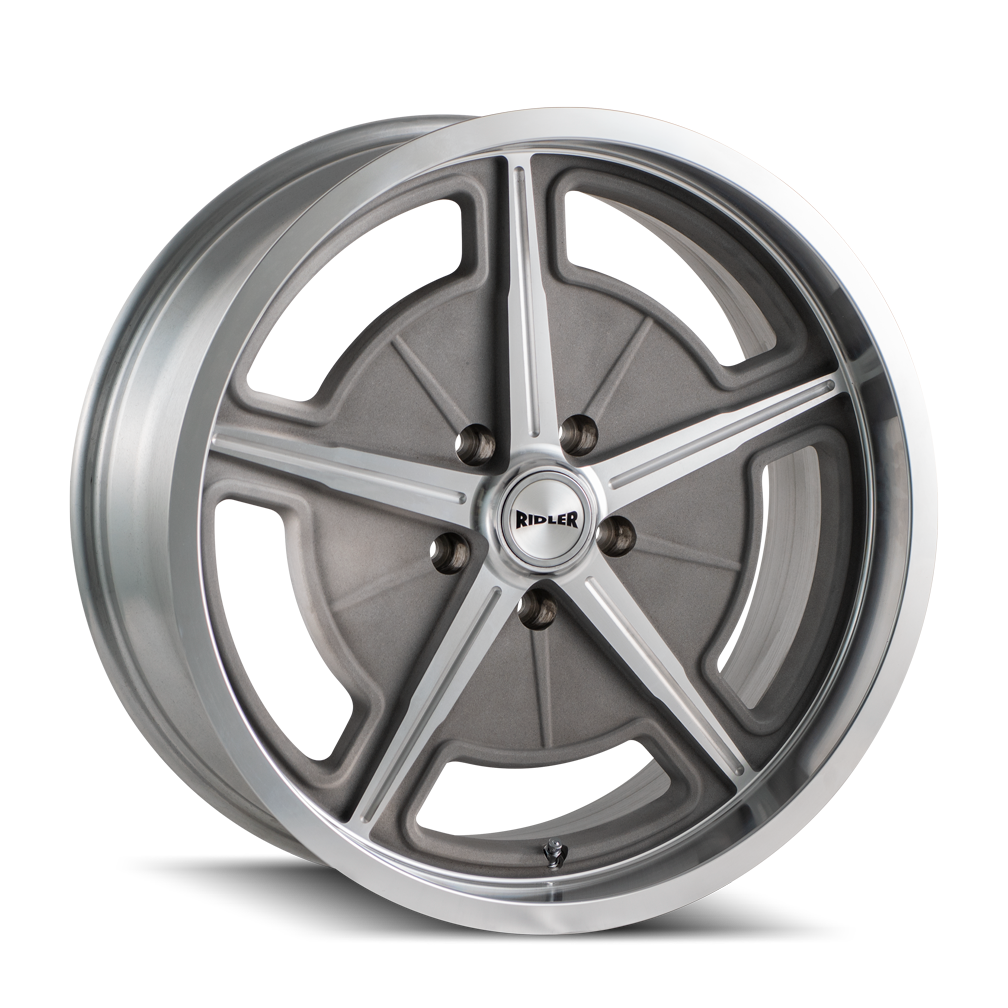

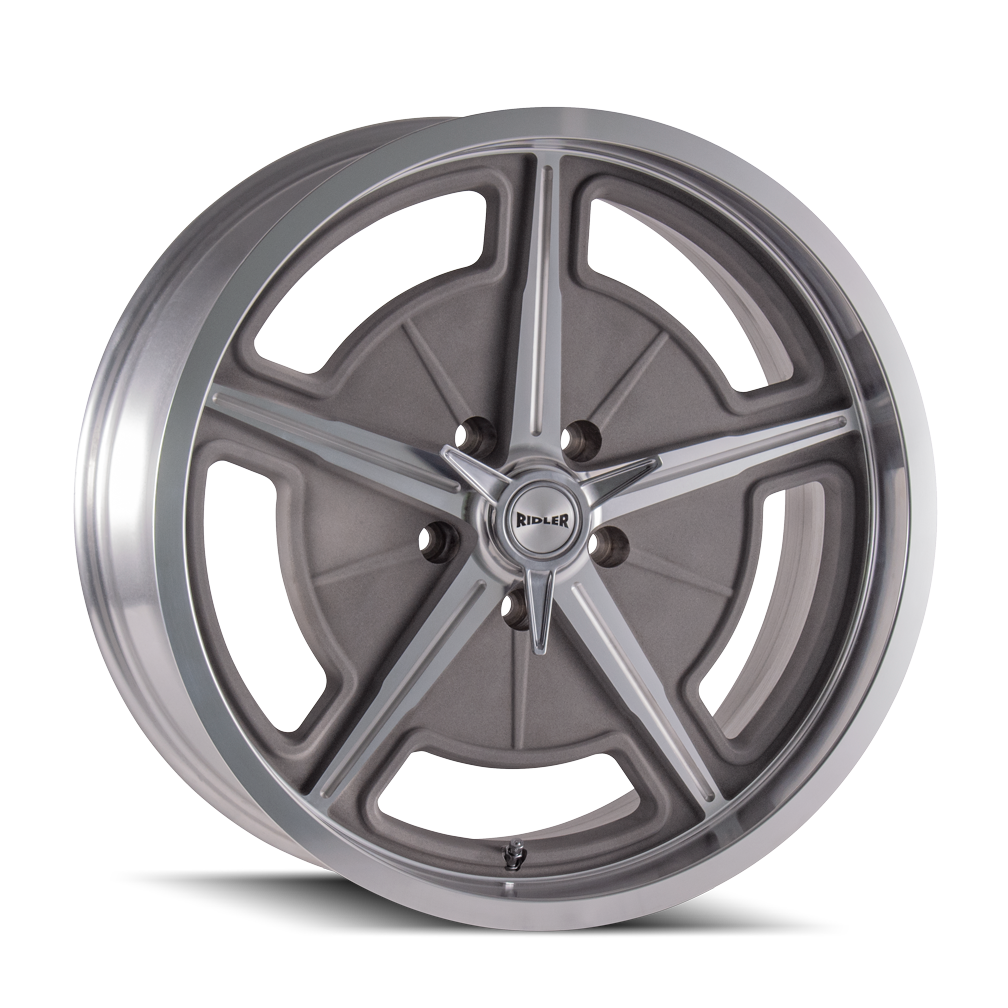

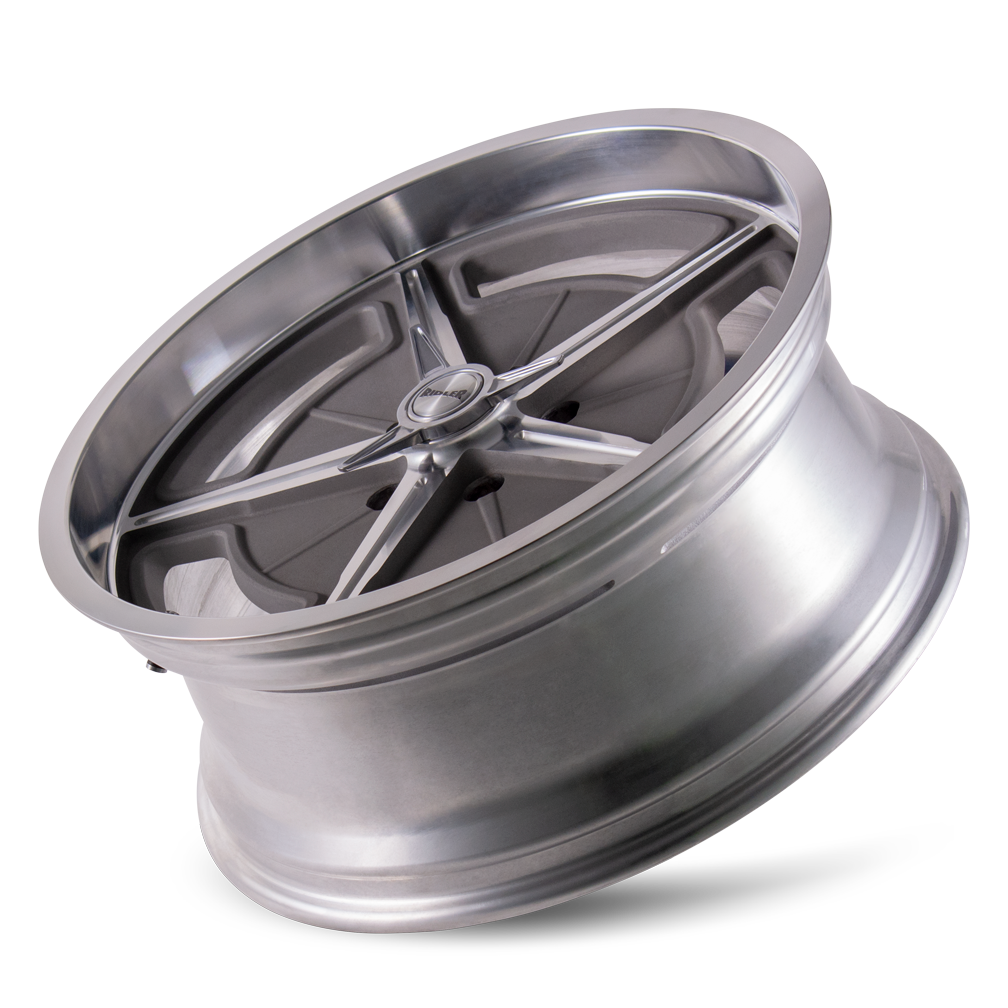

The Ridler 605 wheel in the As Cast w/ Machined Spokes & Lip finish is available in 17x7, 17x8, 18x8.00, 18x9.50, 20x10.00, 20x8.50 with 4 bolt patterns (5x120.65, 5x114.3, 5x127, 5x139.7). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, Ridler's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
605-7761GM 17x7 5x120.65 0 4.00 83.82 1600
605-7765GM 17x7 5x114.3 0 4.00 83.82 1600
605-7773GM 17x7 5x127 0 4.00 83.82 1600
605-7861GM 17x8 5x120.65 0 4.50 83.82 1600
605-7865GM 17x8 5x114.3 0 4.50 83.82 1600
605-7873GM 17x8 5x127 0 4.50 83.82 1600
605-8861GM 18x8.00 5x120.65 0 4.50 83.82 1600
605-8865GM 18x8.00 5x114.3 0 4.50 83.82 1600
605-8873GM 18x8.00 5x127 0 4.50 83.82 1600
605-8885GM 18x8.00 5x139.7 0 4.50 108.00 2200
605-8961GM 18x9.50 5x120.65 0 5.25 83.82 1600
605-8965GM 18x9.50 5x114.3 0 5.25 83.82 1600
605-8973GM 18x9.50 5x127 0 5.25 83.82 1600
605-8985GM 18x9.50 5x139.7 0 5.00 108.00 2200
605-2161GM 20x10.00 5x120.65 0 5.50 83.82 1600
605-2165GM 20x10.00 5x114.3 0 5.50 83.82 1600
605-2173GM 20x10.00 5x127 0 5.50 83.82 1600
605-2185GM 20x10.00 5x139.7 0 5.50 108.00 2200
605-2861GM 20x8.50 5x120.65 0 4.75 83.82 1600
605-2865GM 20x8.50 5x114.3 0 4.75 83.82 1600
605-2873GM 20x8.50 5x127 0 4.75 83.82 1600
605-2885GM 20x8.50 5x139.7 0 4.75 108.00 2200
