Product Description

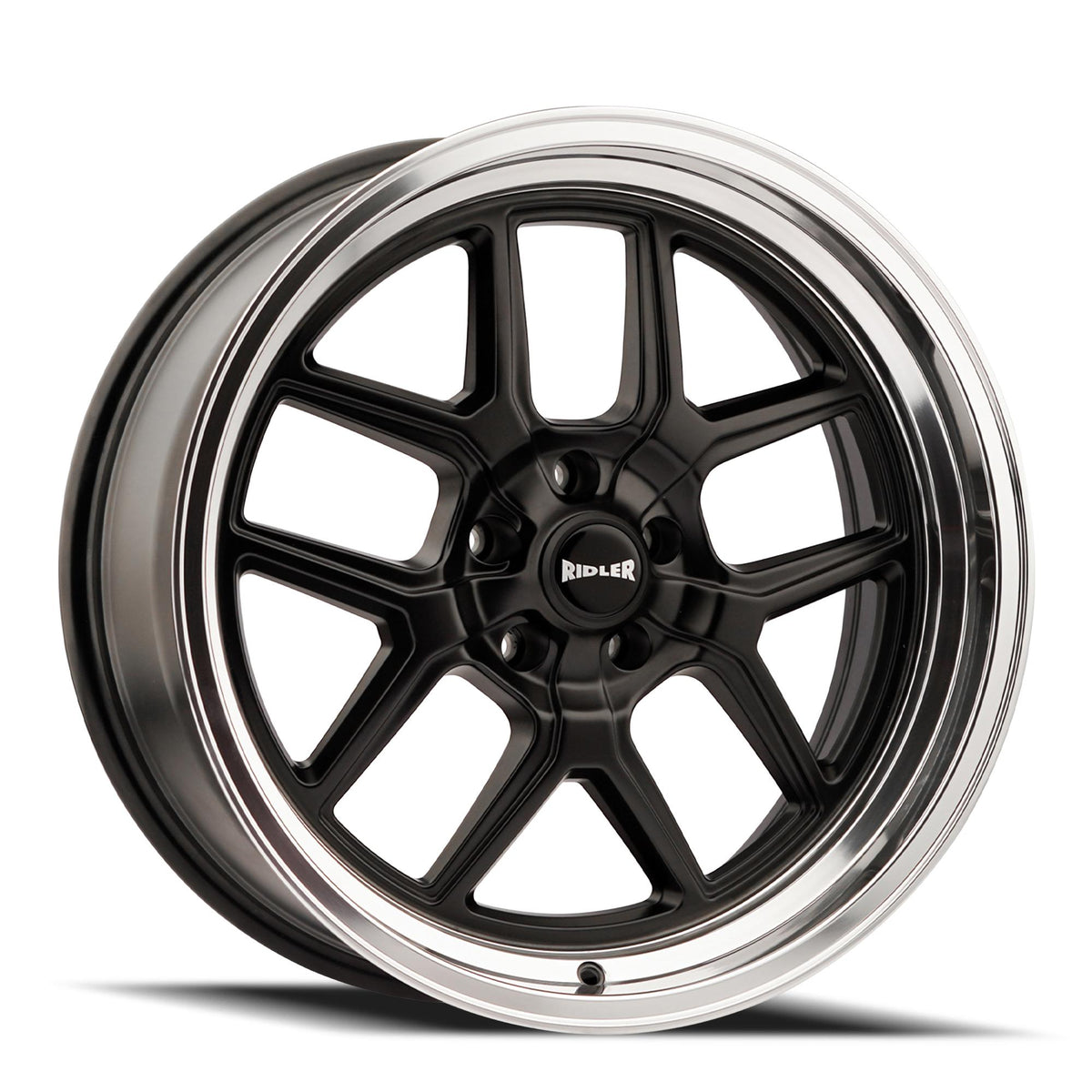

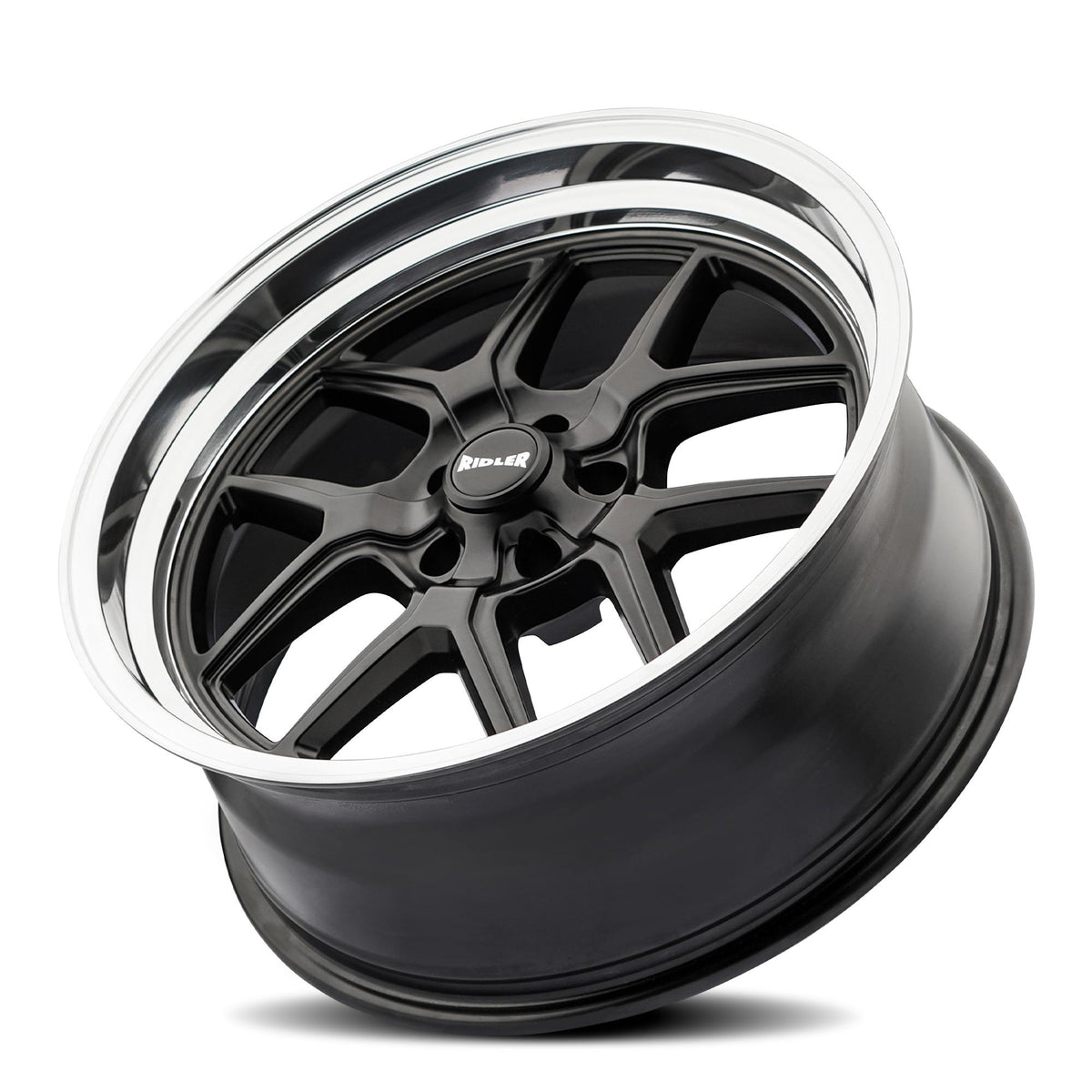

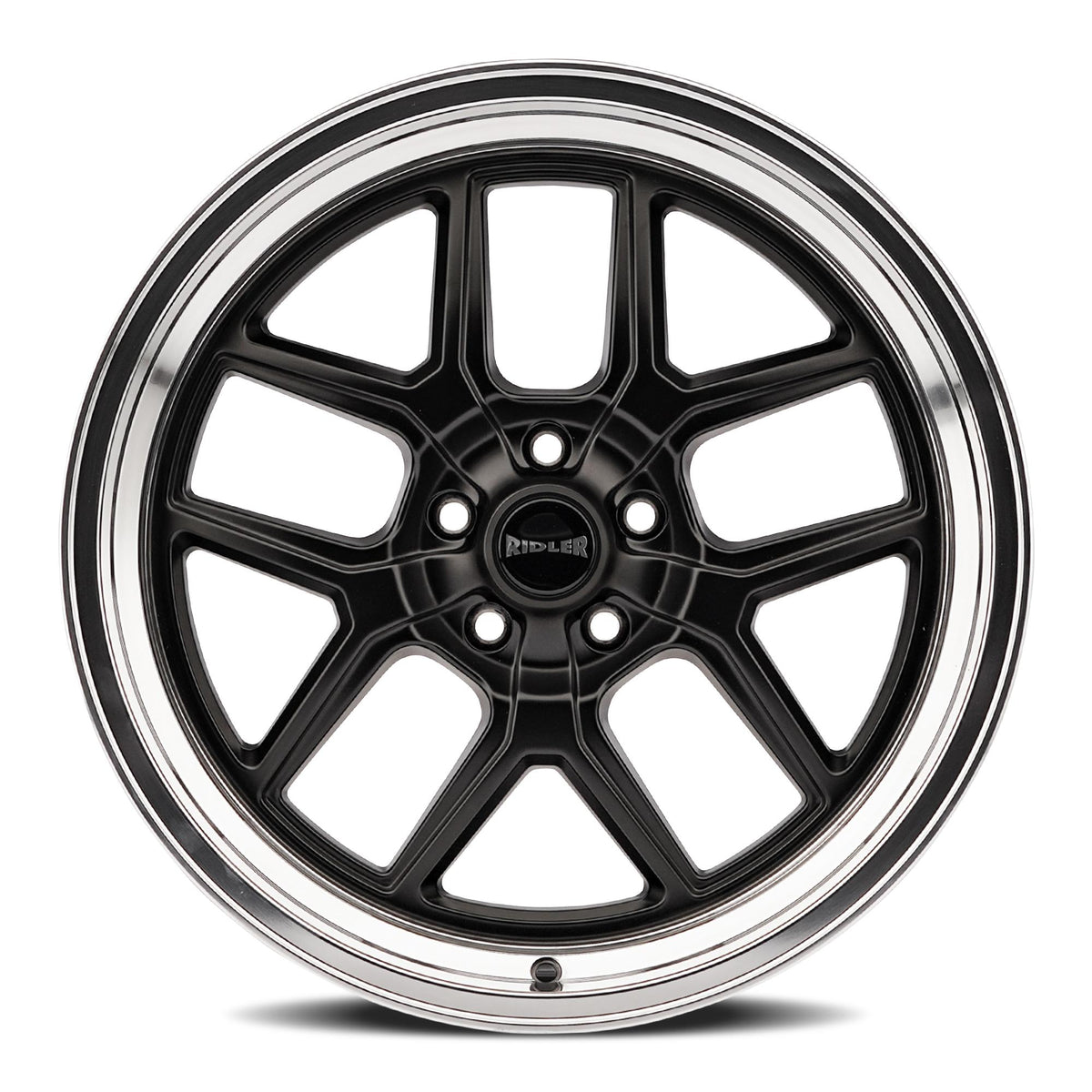

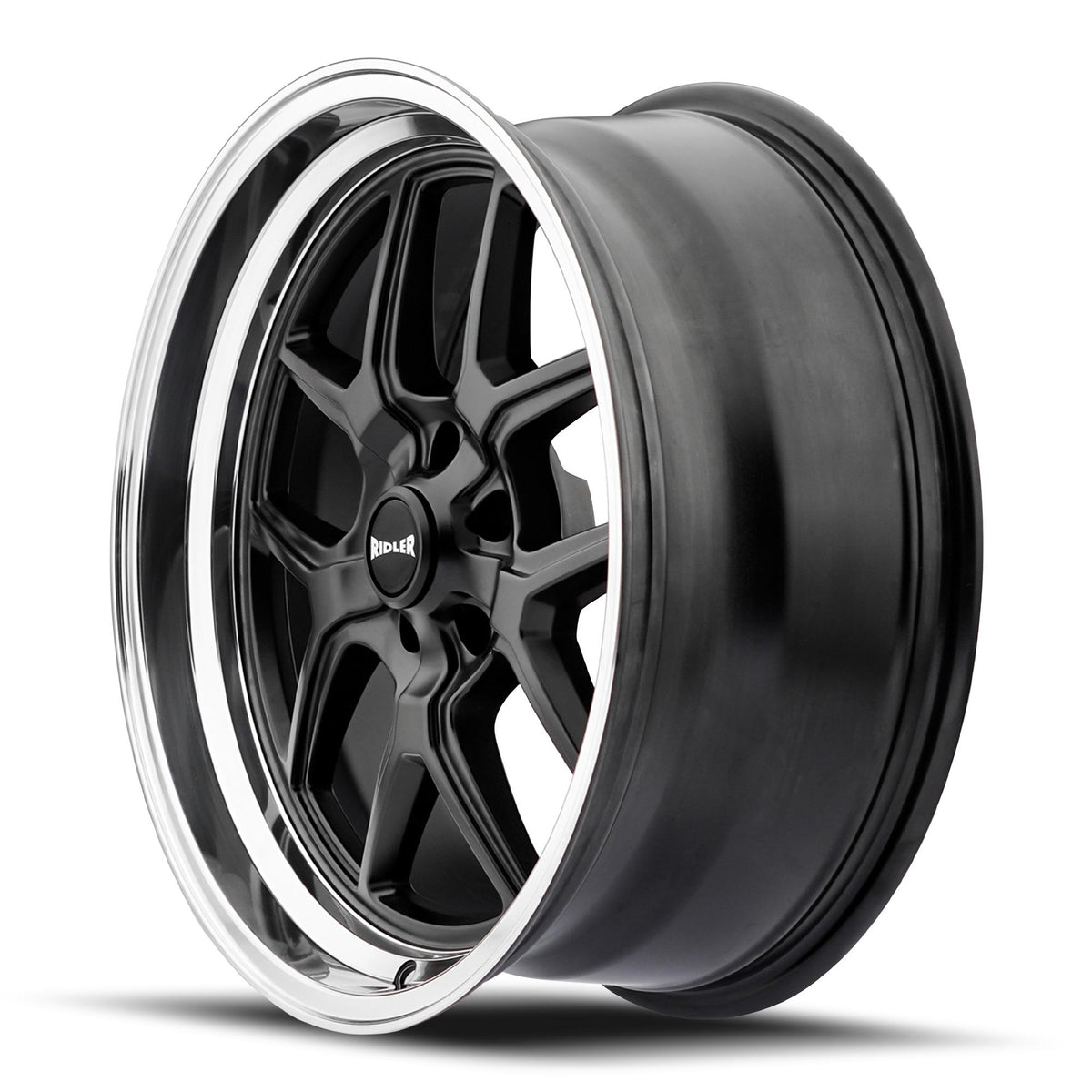

The Ridler 610 wheel in the Matte Black with Polished Lip finish is available in 17x7, 17x8, 20x8.5, 20x10 with 3 bolt patterns (5x114.3, 5x120.65, 5x127). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, Ridler's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
610-7765MB 17x7 5x114.3 LOW 4 83.82 1600
610-7761MB 17x7 5x120.65 LOW 4 83.82 1600
610-7773MB 17x7 5x127 LOW 4 83.82 1600
610-7865MB 17x8 5x114.3 LOW 4.5 83.82 1600
610-7861MB 17x8 5x120.65 LOW 4.5 83.82 1600
610-7873MB 17x8 5x127 LOW 4.5 83.82 1600
610-2865MB 20x8.5 5x114.3 LOW 4.75 83.82 1600
610-2861MB 20x8.5 5x120.65 LOW 4.75 83.82 1600
610-2873MB 20x8.5 5x127 LOW 4.75 83.82 1600
610-2165MB 20x10 5x114.3 LOW 5.50 83.82 1600
610-2161MB 20x10 5x120.65 LOW 5.50 83.82 1600
610-2173MB 20x10 5x127 LOW 5.50 83.82 1600
