Product Description

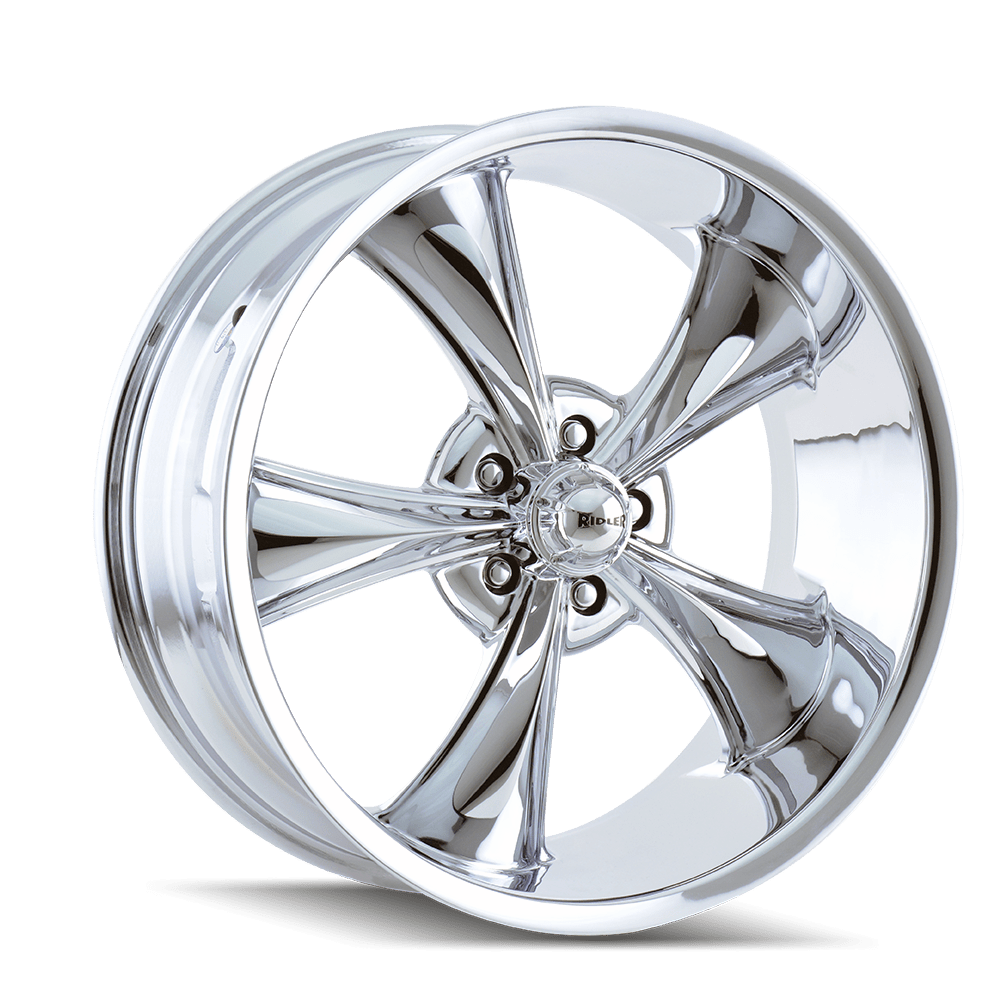

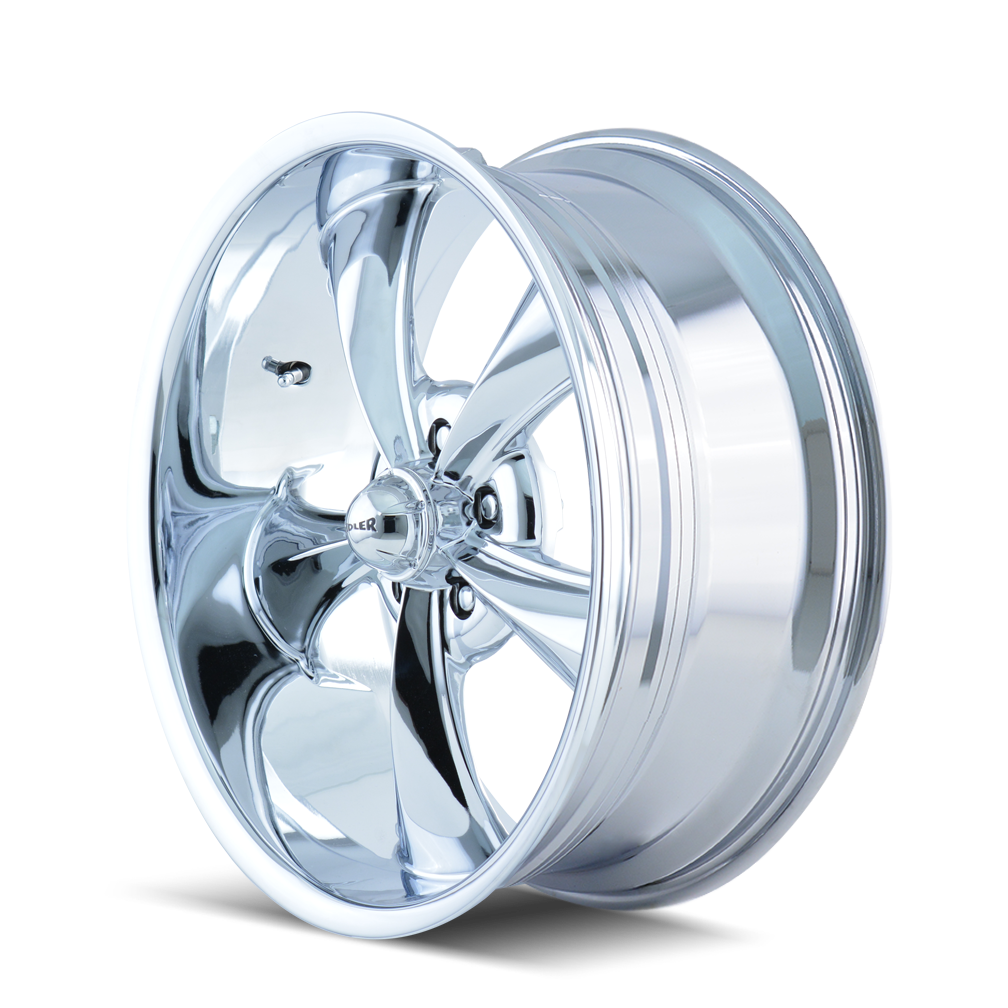

The Ridler 695 wheel in the Chrome finish is available in 17x7, 17x8, 18x8.00, 18x9.50, 20x10.00, 20x8.50, 22x10.50, 22x9.00 with 4 bolt patterns (5x120.65, 5x114.3, 5x127, 5x115). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, Ridler's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
695-7761C 17x7 5x120.65 0 4.00 83.82 2200
695-7765C 17x7 5x114.3 0 4.00 83.82 2200
695-7773C 17x7 5x127 0 4.00 83.82 2200
695-7861C 17x8 5x120.65 0 4.50 83.82 2200
695-7865C 17x8 5x114.3 0 4.50 83.82 2200
695-7873C 17x8 5x127 0 4.50 83.82 2200
695-8861C 18x8.00 5x120.65 0 4.50 83.82 1600
695-8865C 18x8.00 5x114.3 0 4.50 83.82 1600
695-8873C 18x8.00 5x127 0 4.50 83.82 1600
695-8961C 18x9.50 5x120.65 6 5.49 83.82 1600
695-8965C 18x9.50 5x114.3 6 5.49 83.82 1600
695-8973C 18x9.50 5x127 6 5.49 83.82 1600
695-2161C 20x10.00 5x120.65 0 5.50 83.82 1600
695-2165C 20x10.00 5x114.3 0 5.50 83.82 1600
695-2173C 20x10.00 5x127 0 5.50 83.82 1600
695-2861C 20x8.50 5x120.65 0 4.75 83.82 1600
695-2865C 20x8.50 5x114.3 0 4.75 83.82 1600
695-2873C 20x8.50 5x127 0 4.75 83.82 1600
695-22161C 22x10.50 5x120.65 0 5.75 83.82 2200
695-22164C18 22x10.50 5x115 18 6.46 83.82 2200
695-22173C 22x10.50 5x127 0 5.75 83.82 2200
695-22961C 22x9.00 5x120.65 0 5.00 83.82 2200
695-22964C15 22x9.00 5x115 15 5.59 83.82 2200
695-22973C 22x9.00 5x127 0 5.00 83.82 2200
