Product Description

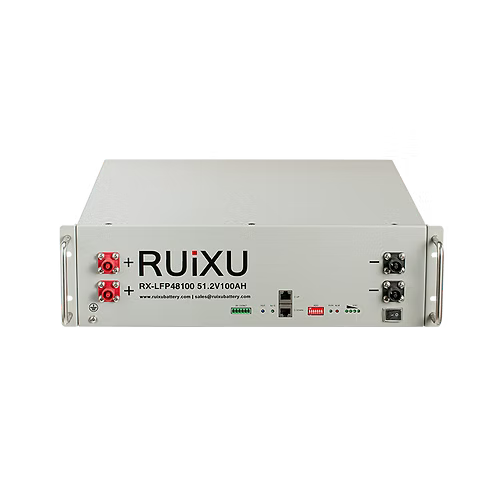

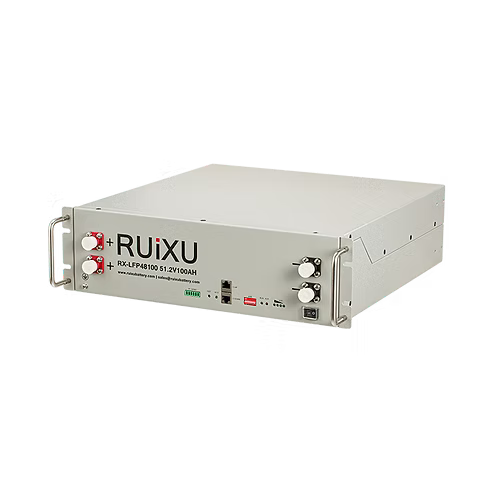

RX-LFP48100 48V 100Ah Rack-Mounted LiFePO4 Battery (5.12kWh)

Reliable and scalable energy storage solution designed for residential and commercial systems. This rack-mounted LiFePO4 battery delivers stable 51.2V output with 5.12kWh capacity, making it ideal for solar and backup power setups. Built with advanced safety certifications and wide inverter compatibility, it ensures efficient performance and seamless integration.

Key Features

  • 19" rack-mounted 3U design for easy installation
  • High-capacity 5.12kWh LiFePO4 battery
  • Supports up to 32 units in parallel (expandable up to 160kWh)
  • No external controller required for scaling
  • Adjustable inverter protocol via DIP switch
  • Wide inverter compatibility (CANbus & RS485)

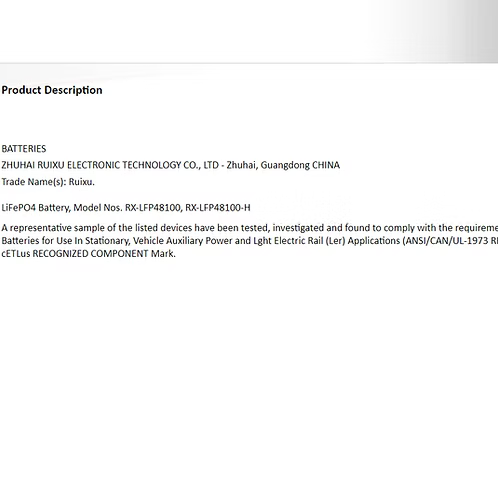

  • Certified for safety and performance (UL1973, UL9540A, CEC, SGIP)
  • Ideal for solar energy storage and backup systems
  • Ready to ship

Designed for flexibility and long-term reliability, the RX-LFP48100 battery supports modular expansion to meet growing energy demands. Its rack-mounted form factor allows for clean and organized installations, while built-in communication ports enable system monitoring and firmware updates via RS485. Whether for home energy storage or commercial backup applications, this battery delivers consistent and efficient performance.

Specifications

  • Model: RX-LFP48100
  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Minimum Capacity: 100Ah
  • Nominal Energy: 5120Wh (5.12kWh)
  • Dimensions (WĂ—DĂ—H): 482.6 Ă— 460 Ă— 133 mm
  • Weight: Approx. 47kg
  • Parallel Support: Up to 32 units
  • CANbus Compatibility: Victron, SMA, Studer, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, Luxpower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
  • RS485 Compatibility: MPP, Voltronic, RCT, Alpha Outback
  • Included: 1Ă— Battery Unit, 1Ă— RJ45/CAT5e Cable, 1Ă— Ground Cable, Parallel Cables
  • Cable Details: 300mm busbar cable, 250mm battery-to-battery cable
  • Additional: RS485 monitoring cable available (free), inverter cables sold separately

Upgrade your energy system today with a reliable, expandable, and high-performance battery solution built for modern power needs.

```
