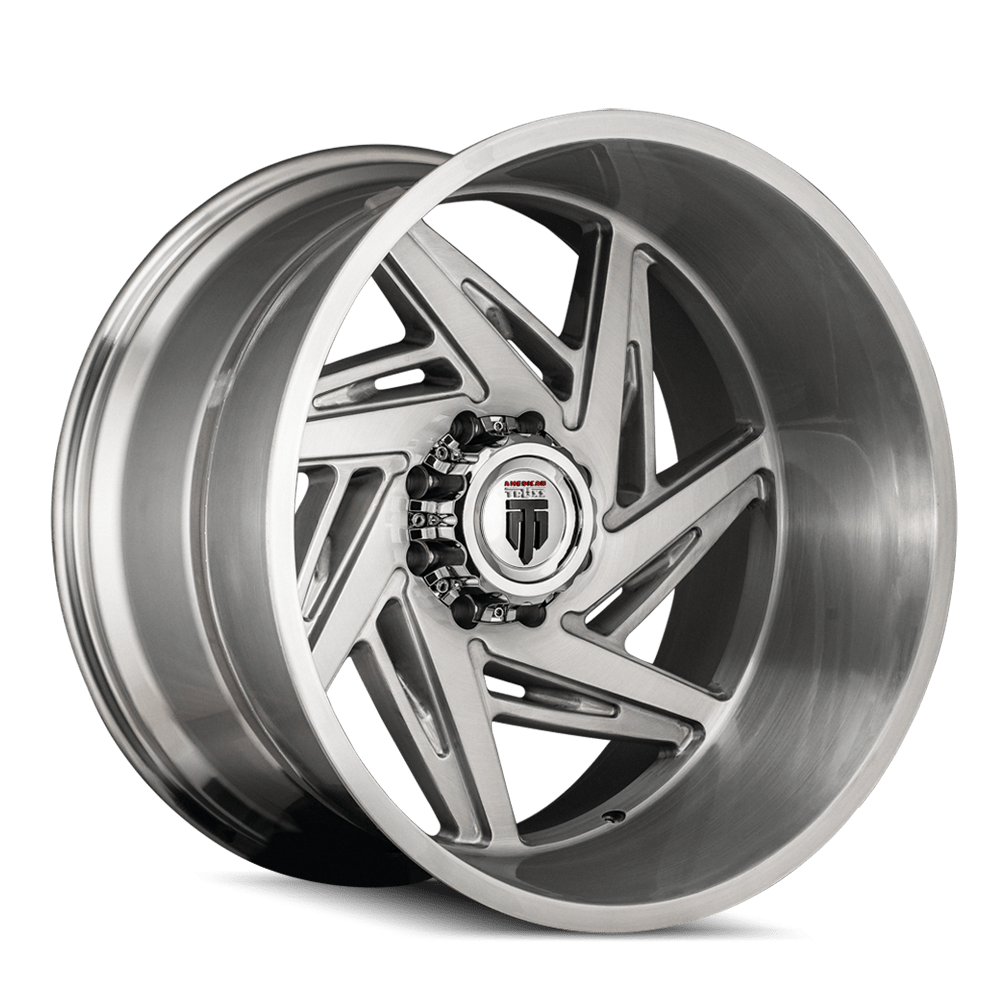

American Truxx Spiral AT1906 Wheel – Brushed

Product Description

The American Truxx Spiral AT1906 wheel in the Brushed finish is available in 22x12, 24x14 with 6 bolt patterns (5x150, 8x170, 5x127, 8x165.1, 6x139.7, 5x139.7). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, American Truxx's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
AT1906-22250BT-44 22x12 5x150 -44 4.77 110.50 2500
AT1906-22270BT-44 22x12 8x170 -44 4.77 125.20 3500
AT1906-22273BT-44 22x12 5x127 -44 4.77 78.10 2500
AT1906-22281BT-44 22x12 8x165.1 -44 4.77 125.20 3500
AT1906-22283BT-44 22x12 6x139.7 -44 4.77 106.10 2500
AT1906-22285BT-44 22x12 5x139.7 -44 4.77 87.10 2500
AT1906-24470BT-76 24x14 8x170 -76 4.51 125.20 3500
AT1906-24473BT-76 24x14 5x127 -76 4.51 78.10 2500
AT1906-24481BT-76 24x14 8x165.1 -76 4.51 125.20 3500
AT1906-24483BT-76 24x14 6x139.7 -76 4.51 106.10 2500
AT1906-24485BT-76 24x14 5x139.7 -76 4.51 87.10 2500
