Product Description

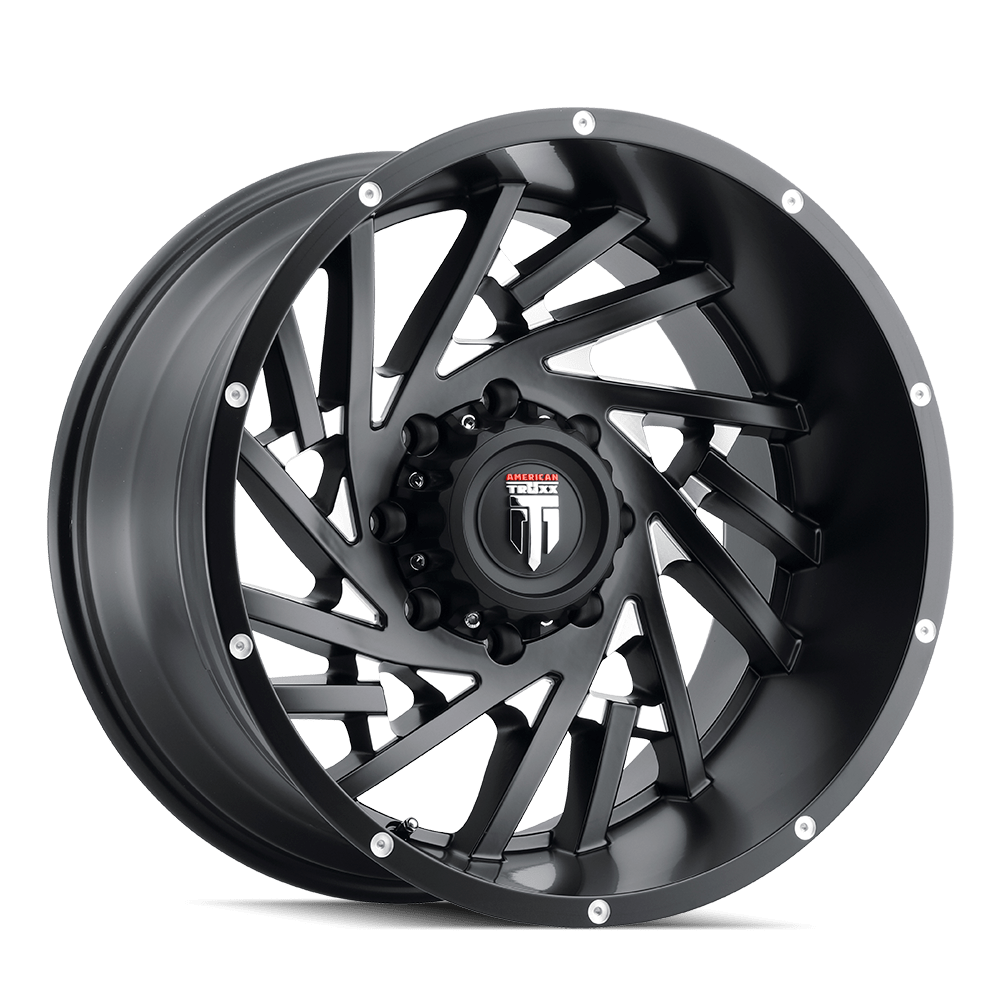

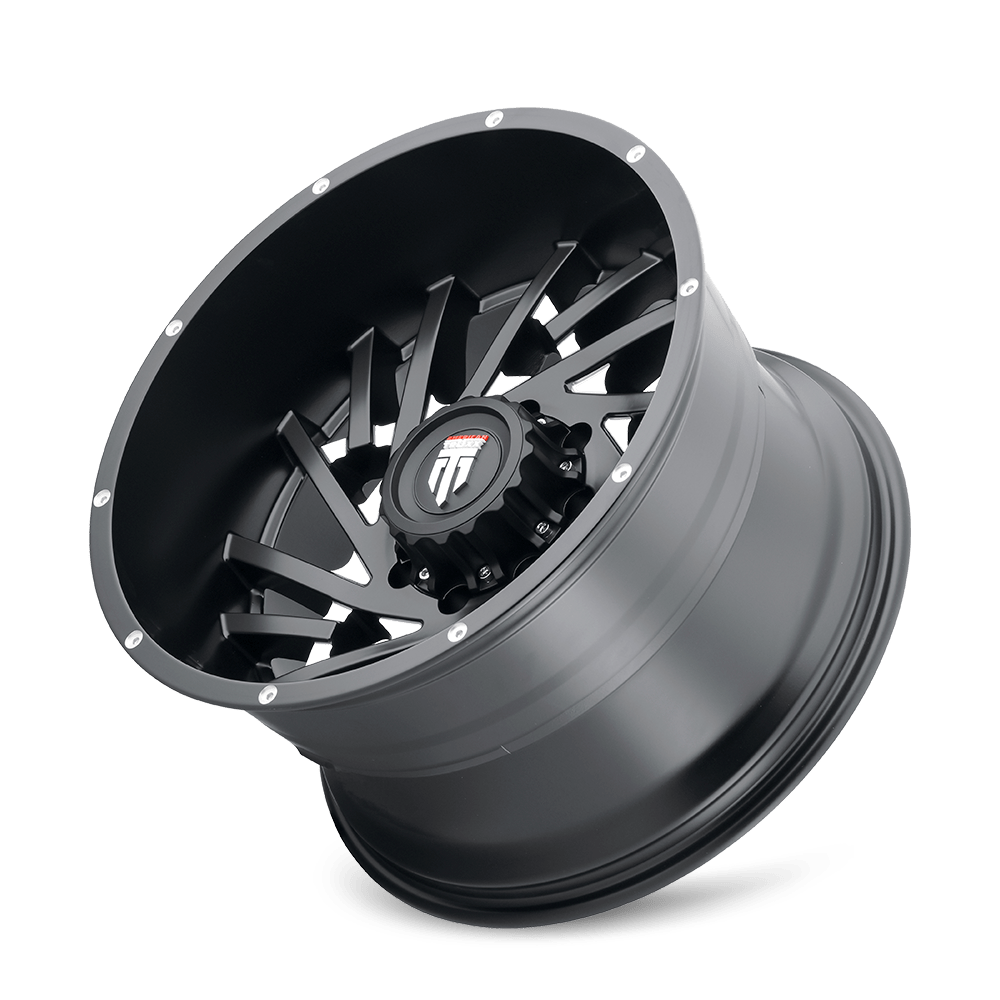

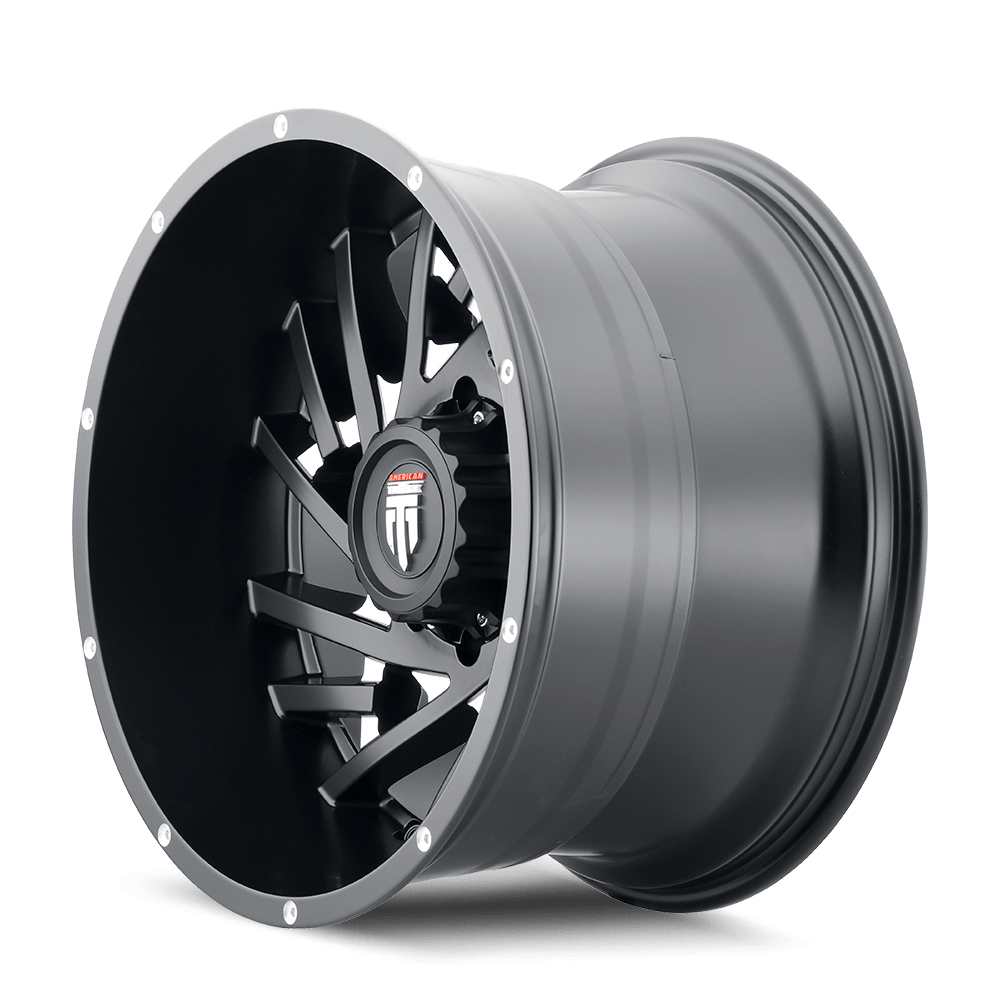

The American Truxx Web AT161 wheel in the Black Milled Spokes finish is available in 20x10, 20x12 with 8 bolt patterns (6x135, 5x150, 8x170, 5x127, 8x180, 8x165.1, 6x139.7, 5x139.7). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, American Truxx's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
AT161-2136M-24 20x10 6x135 -24 4.56 87.10 2500
AT161-2150M-24 20x10 5x150 -24 4.56 110.30 2500
AT161-2170M-24 20x10 8x170 -24 4.56 125.20 3500
AT161-2173M-24 20x10 5x127 -24 4.56 78.10 2500
AT161-2178M-24 20x10 8x180 -24 4.56 125.20 3500
AT161-2181M-24 20x10 8x165.1 -24 4.56 125.20 3500
AT161-2183M-24 20x10 6x139.7 -24 4.56 106.10 2500
AT161-2185M-24 20x10 5x139.7 -24 4.56 87.10 2500
AT161-2236M-44 20x12 6x135 -44 4.77 87.10 2500
AT161-2250M-44 20x12 5x150 -44 4.77 110.30 2500
AT161-2270M-44 20x12 8x170 -44 4.77 125.20 3500
AT161-2273M-44 20x12 5x127 -44 4.77 78.10 2500
AT161-2278M-44 20x12 8x180 -44 4.77 125.20 3500
AT161-2281M-44 20x12 8x165.1 -44 4.77 125.20 3500
AT161-2283M-44 20x12 6x139.7 -44 4.77 106.10 2500
AT161-2285M-44 20x12 5x139.7 -44 4.77 87.10 2500
