Product Description

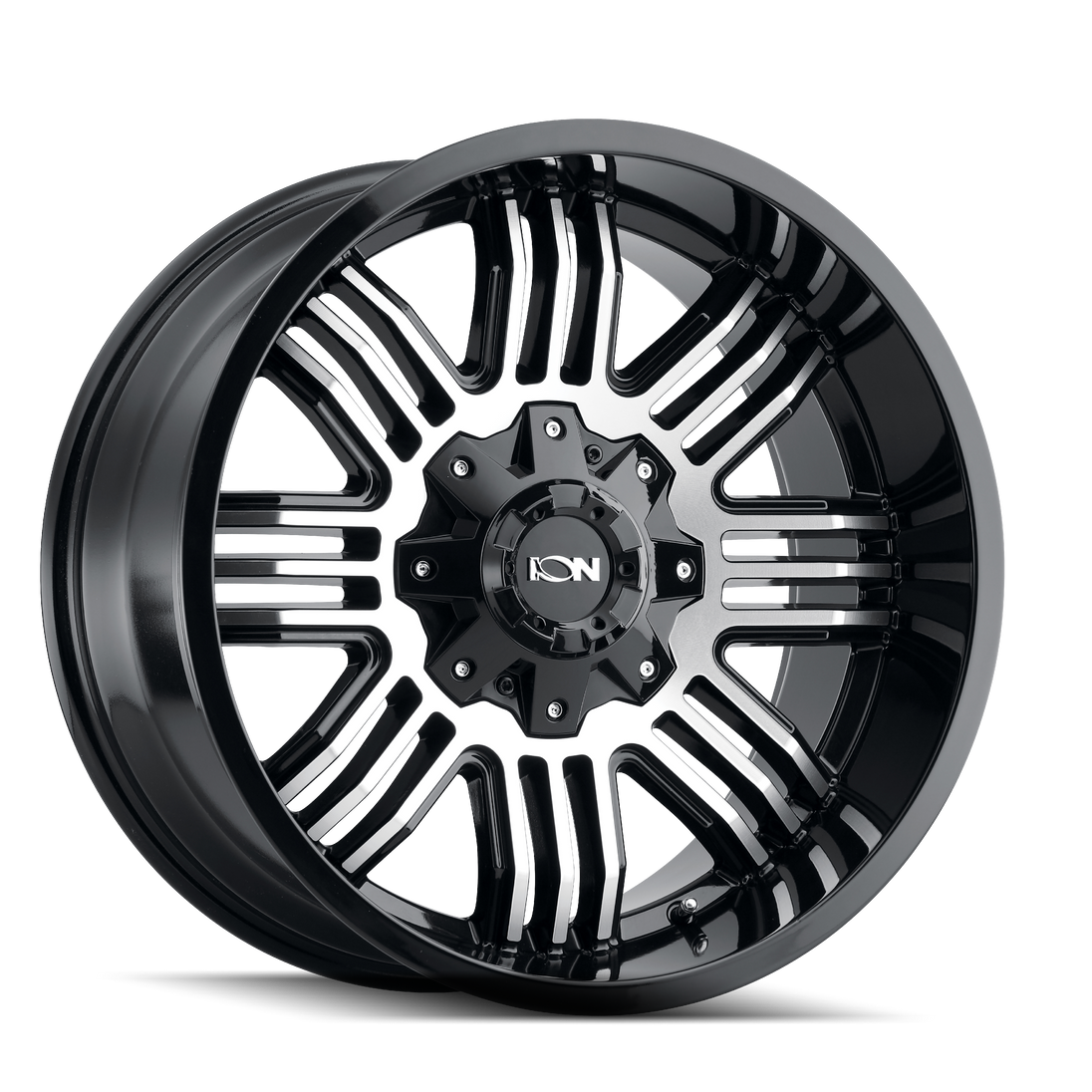

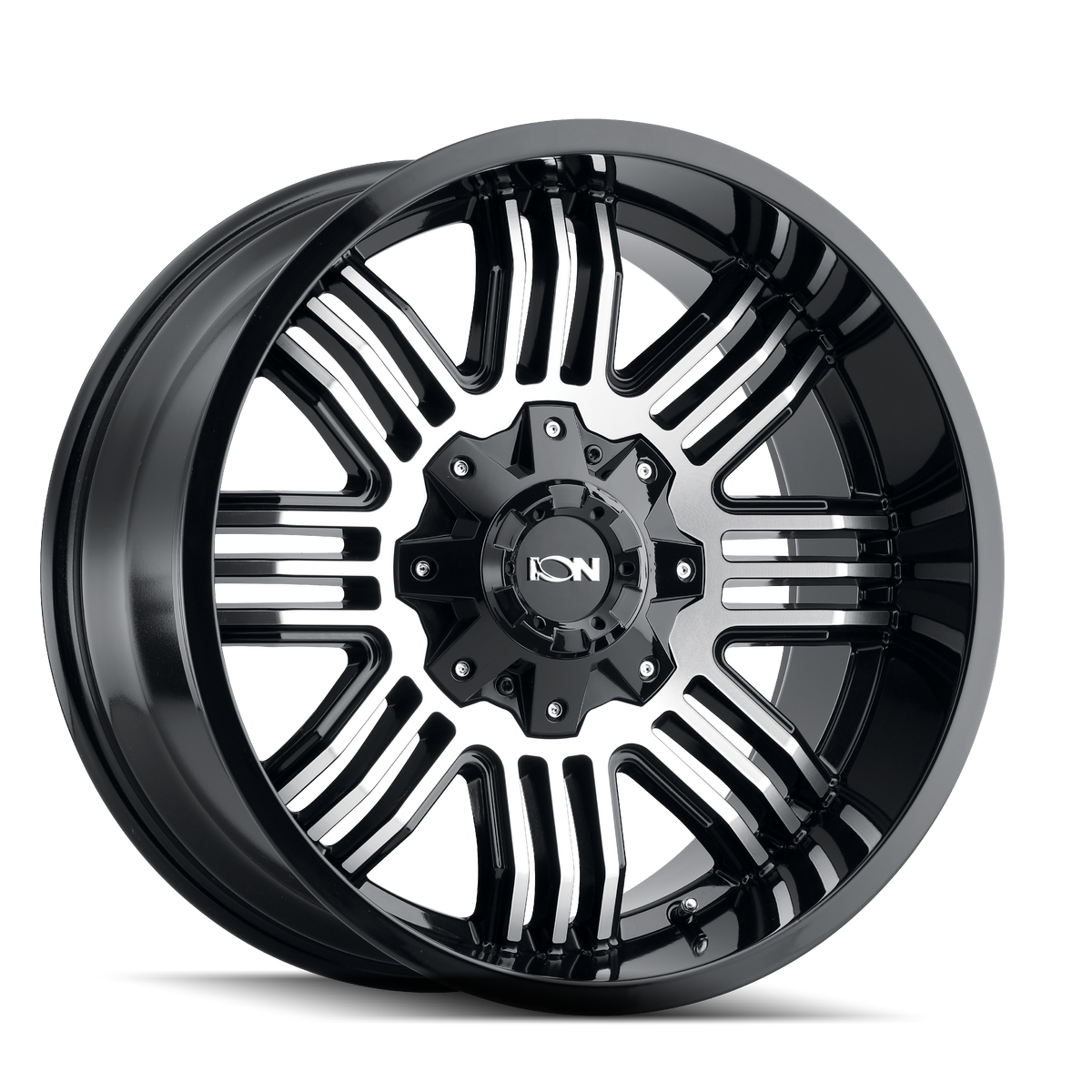

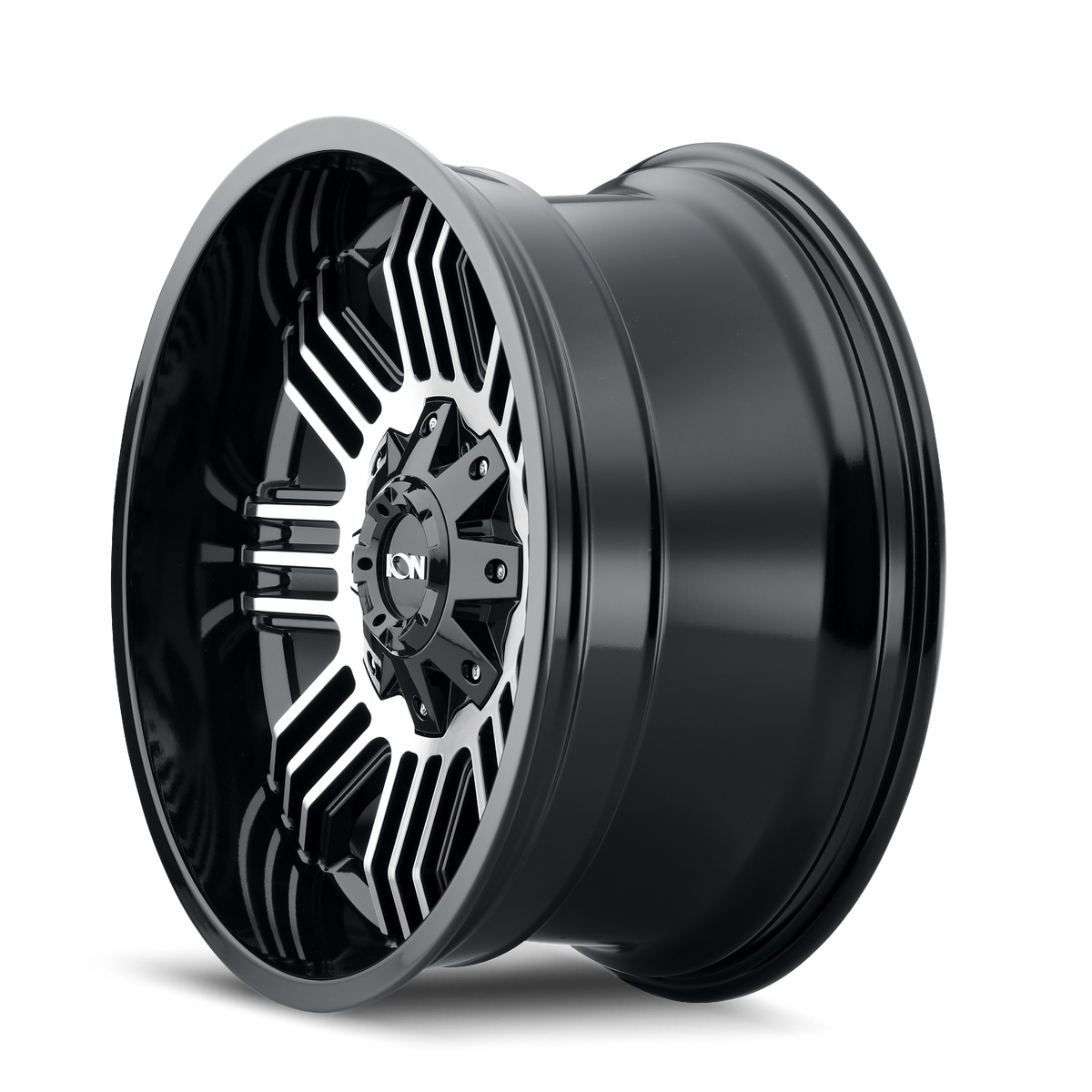

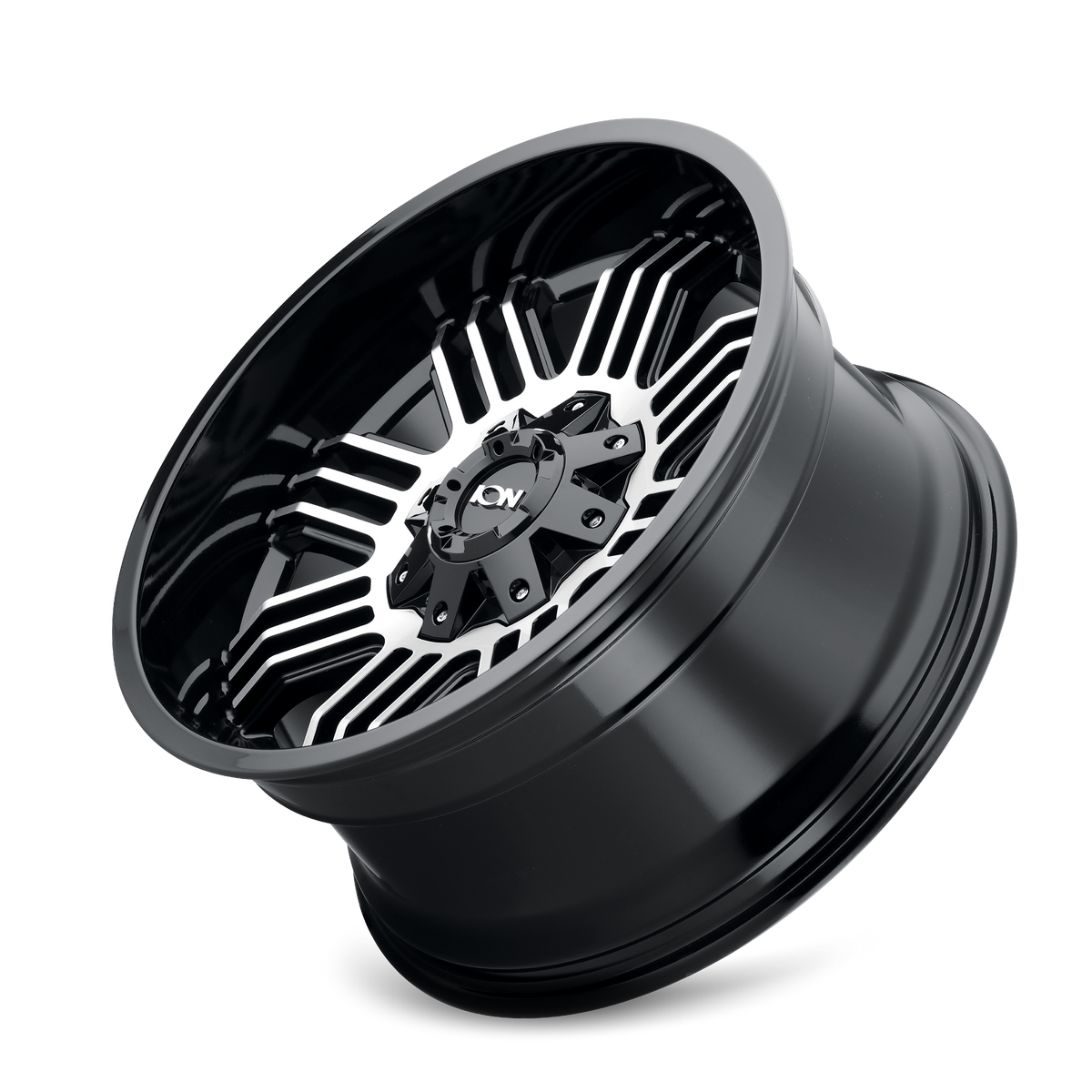

The ION Style 144 wheel in the Black w/ Machined Face finish is available in 17x9, 20x10, 20x9 with 7 bolt patterns (6x135, 6x139.7, 5x127, 5x139.7, 8x170, 8x165.1, 8x180). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, ION's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
144-7937B 17x9 6x135 / 6x139.7 -12.00 4.53 106.00 2500
144-7952B 17x9 5x127 / 5x139.7 -12.00 4.53 87.10 2500
144-7970B 17x9 8x170 -12.00 4.53 125.20 3640
144-7981B 17x9 8x165.1 -12.00 4.53 125.20 3640
144-2137B 20x10 6x135 / 6x139.7 -19.00 4.75 106.00 2500
144-2152B 20x10 5x127 / 5x139.7 -19.00 4.75 87.10 2500
144-2170B 20x10 8x170 -19.00 4.75 125.20 3640
144-2178B 20x10 8x180 -19.00 4.75 124.10 3640
144-2181B 20x10 8x165.1 -19.00 4.75 125.20 3640
144-2937B18 20x9 6x135 / 6x139.7 18.00 5.71 106.00 2500
144-2952B18 20x9 5x127 / 5x139.7 18.00 5.71 87.10 2500
144-2970B18 20x9 8x170 18.00 5.71 125.20 3640
144-2978B18 20x9 8x180 18.00 5.71 124.10 3640
144-2981B18 20x9 8x165.1 18.00 5.71 125.20 2500
