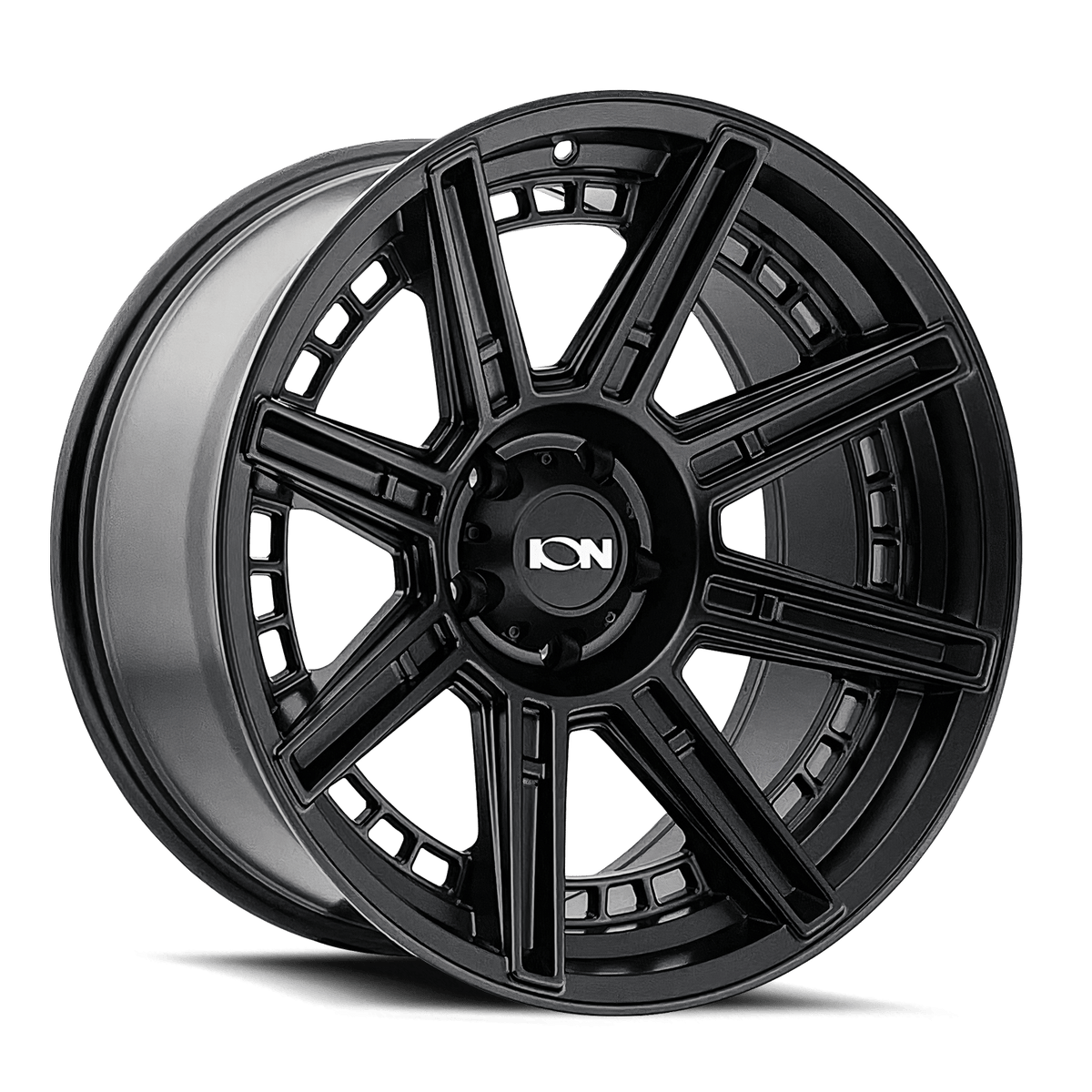

ION Style 149 Wheel – Matte Black

Product Description

The ION Style 149 wheel in the Matte Black finish is available in 20x9, 20x10 with 7 bolt patterns (5x127, 5x139.7, 6x135, 6x139.7, 8x165.1, 8x170, 8x180). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, ION's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
149-2973MB 20x9 5x127 -12.00 4.53 78.10 2,500
149-2985MB 20x9 5x139.7 -12.00 4.53 87.10 2,500
149-2936MB 20x9 6x135 -12.00 4.53 87.10 2,500
149-2983MB 20x9 6x139.7 -12.00 4.53 106.10 2,500
149-2981MB 20x9 8x165.1 -12.00 4.53 125.20 3,800
149-2970MB 20x9 8x170 -12.00 4.53 125.20 3,800
149-2978MB 20x9 8x180 -12.00 4.53 124.10 3,800
149-2173MB 20x10 5x127 -24.00 4.56 78.10 2,500
149-2136MB 20x10 6x135 -24.00 4.56 87.10 2,500
149-2183MB 20x10 6x139.7 -24.00 4.56 106.10 2,500
149-2181MB 20x10 8x165.1 -24.00 4.56 125.20 3,800
149-2170MB 20x10 8x170 -24.00 4.56 125.20 3,800
149-2178MB 20x10 8x180 -24.00 4.56 124.10 3,800
