Product Description

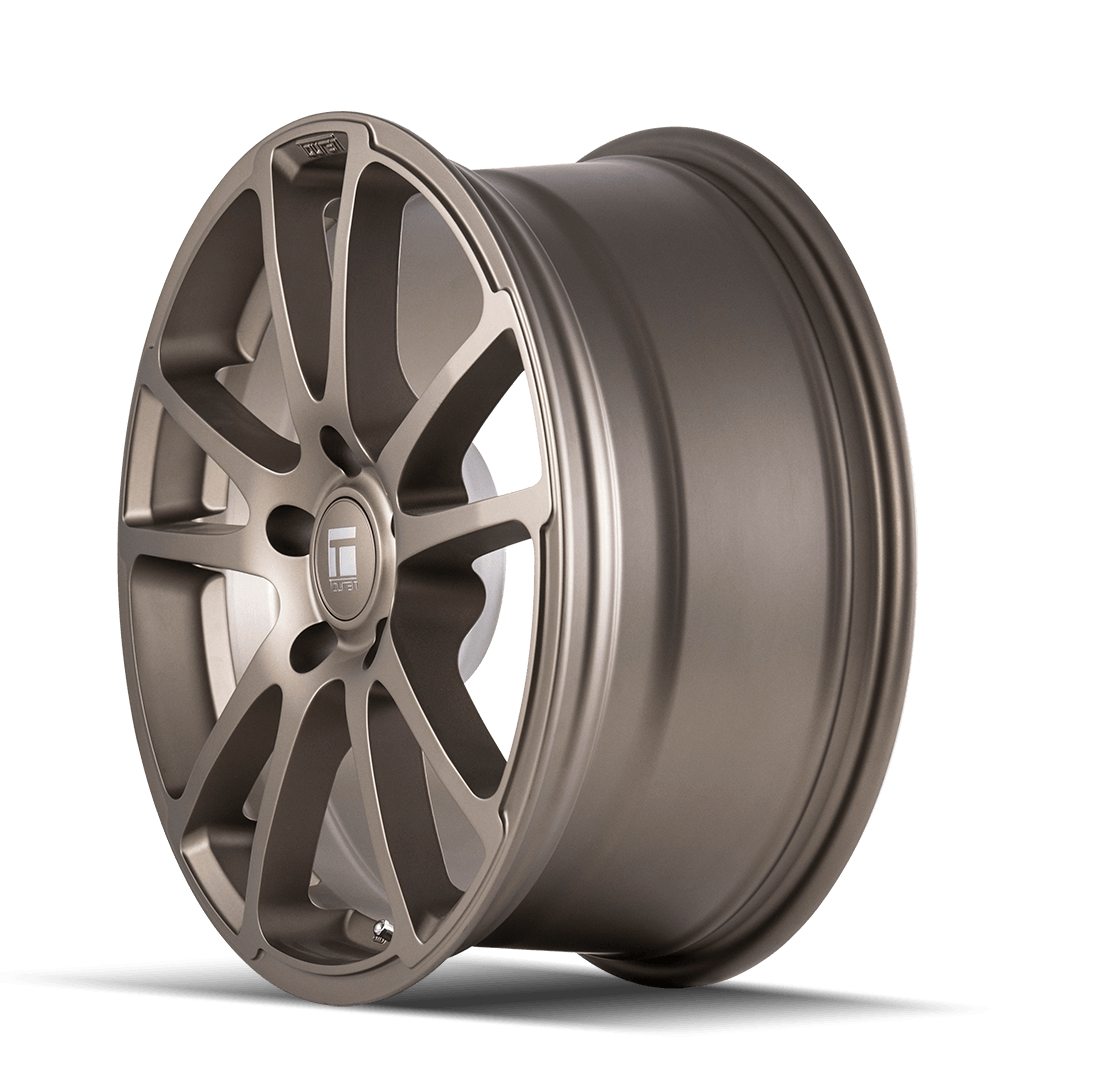

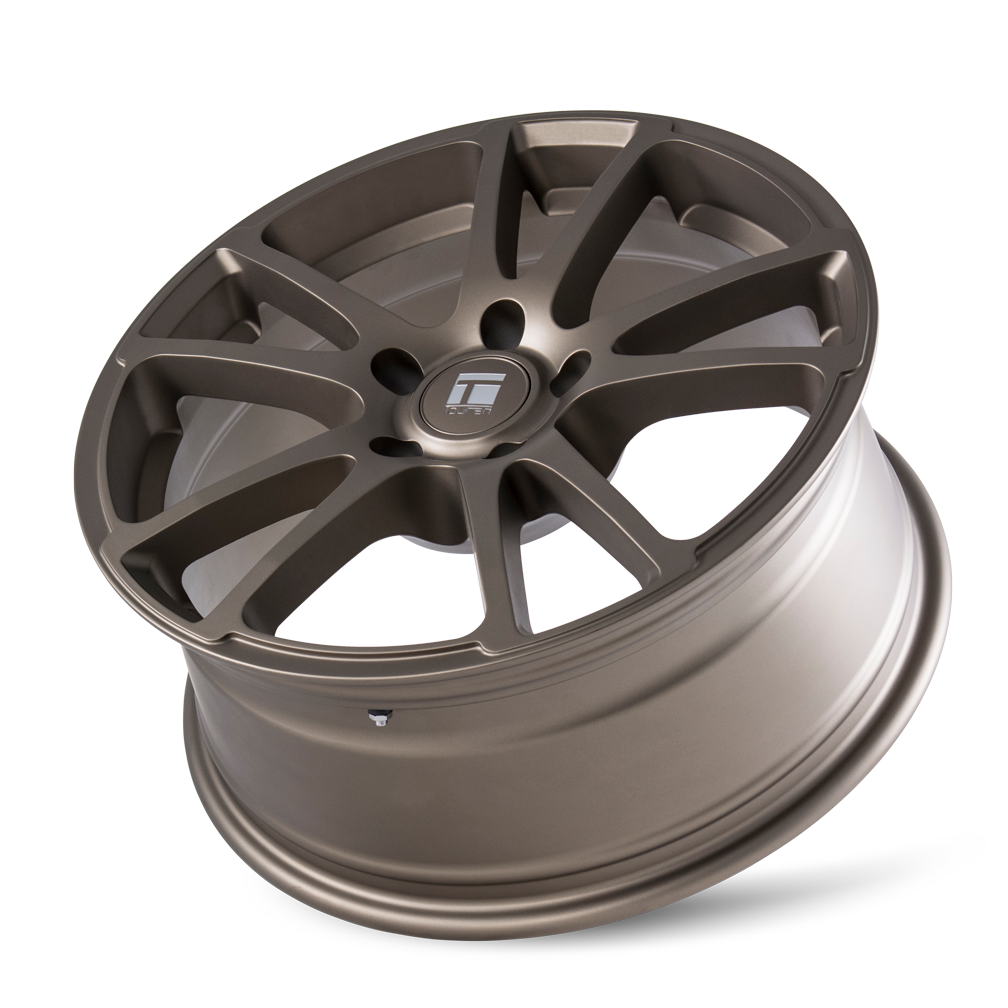

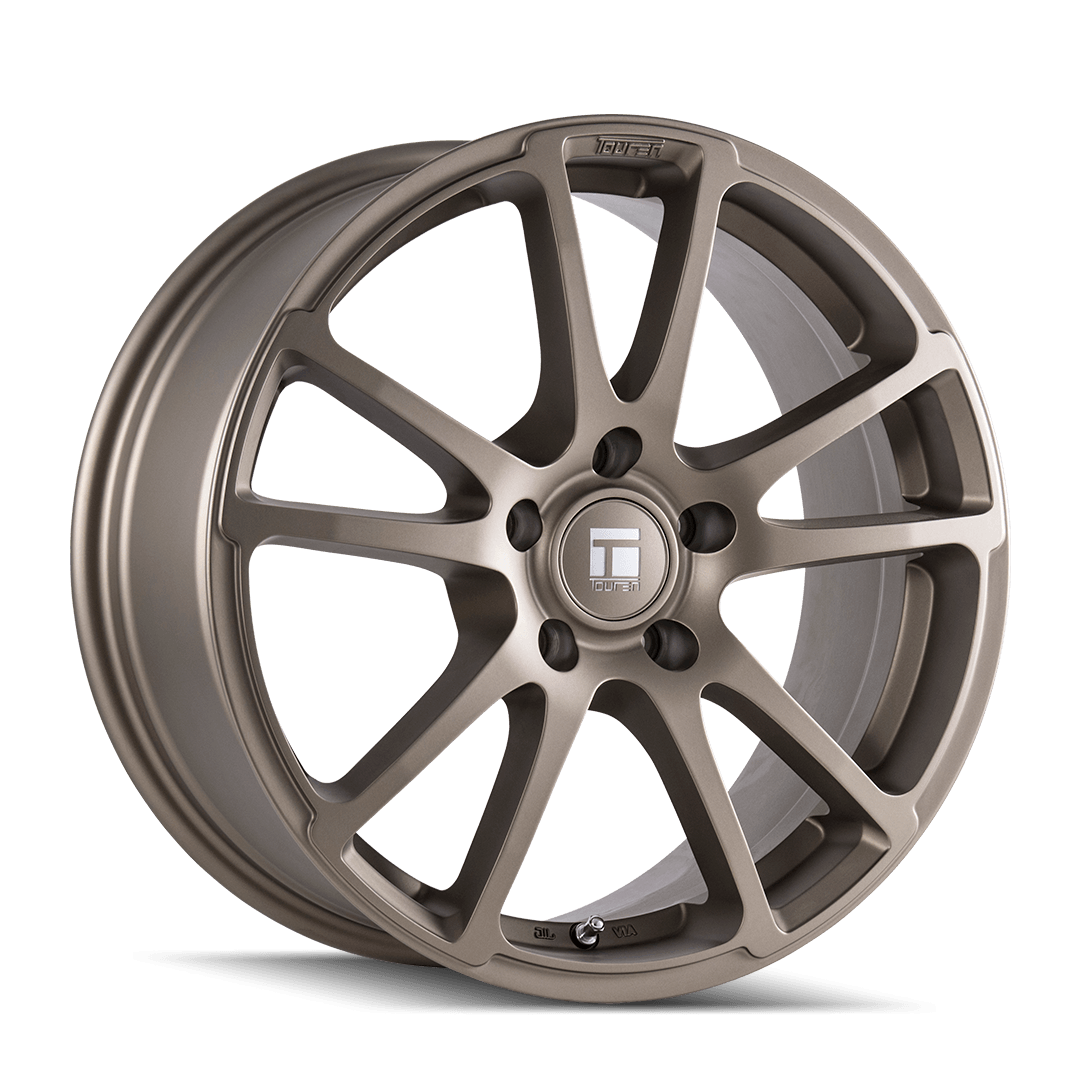

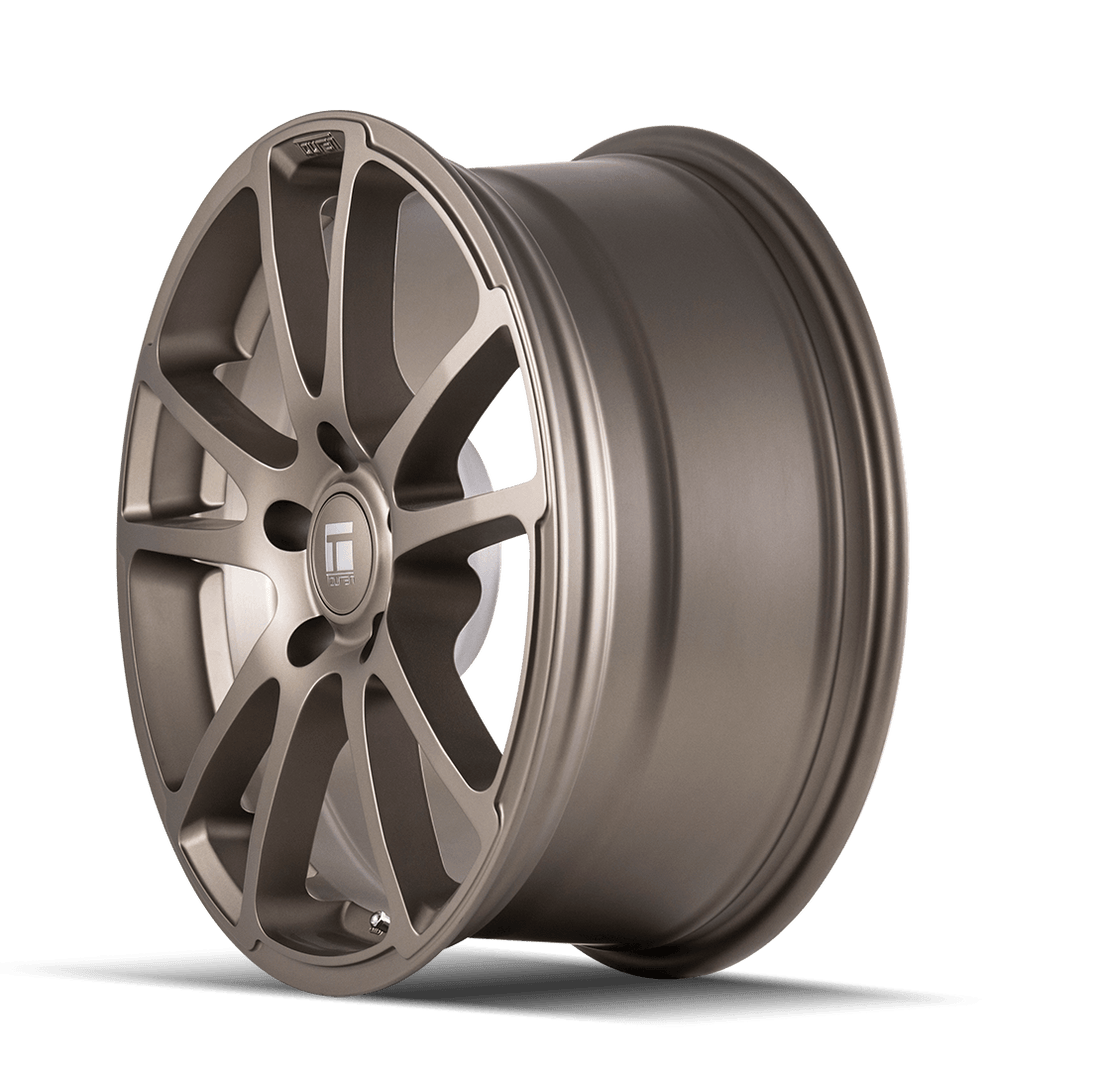

The Touren TF03 3503 wheel in the Matte Bronze finish is available in 17x7.5, 18x8, 20x10, 20x8.5 with 5 bolt patterns (5x120, 5x108, 5x100, 5x112, 5x114.3). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, Touren's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
3503-7712MBZ40 17x7.5 5x120 40 5.82 72.56 1725
3503-7731MBZ40 17x7.5 5x108 40 5.82 63.5 1725
3503-7744MBZ40 17x7.5 5x100 40 5.82 56.1 1725
3503-7745MBZ40 17x7.5 5x112 40 5.82 66.56 1725
3503-7765MBZ40 17x7.5 5x114.3 40 5.82 72.6 1725
3503-8812MBZ40 18x8 5x120 40 6.07 72.56 2000
3503-8831MBZ40 18x8 5x108 40 6.07 63.5 1725
3503-8844MBZ40 18x8 5x100 40 6.07 56.1 1725
3503-8845MBZ40 18x8 5x112 40 6.07 66.56 2000
3503-8865MBZ40 18x8 5x114.3 40 6.07 72.6 1725
3503-2165MBZ40 20x10 5x114.3 40 7.07 72.6 1725
3503-2812MBZ38 20x8.5 5x120 38 6.25 72.56 2000
3503-2845MBZ38 20x8.5 5x112 38 6.25 66.56 2000
3503-2865MBZ38 20x8.5 5x114.3 38 6.25 72.6 1725
