Product Description

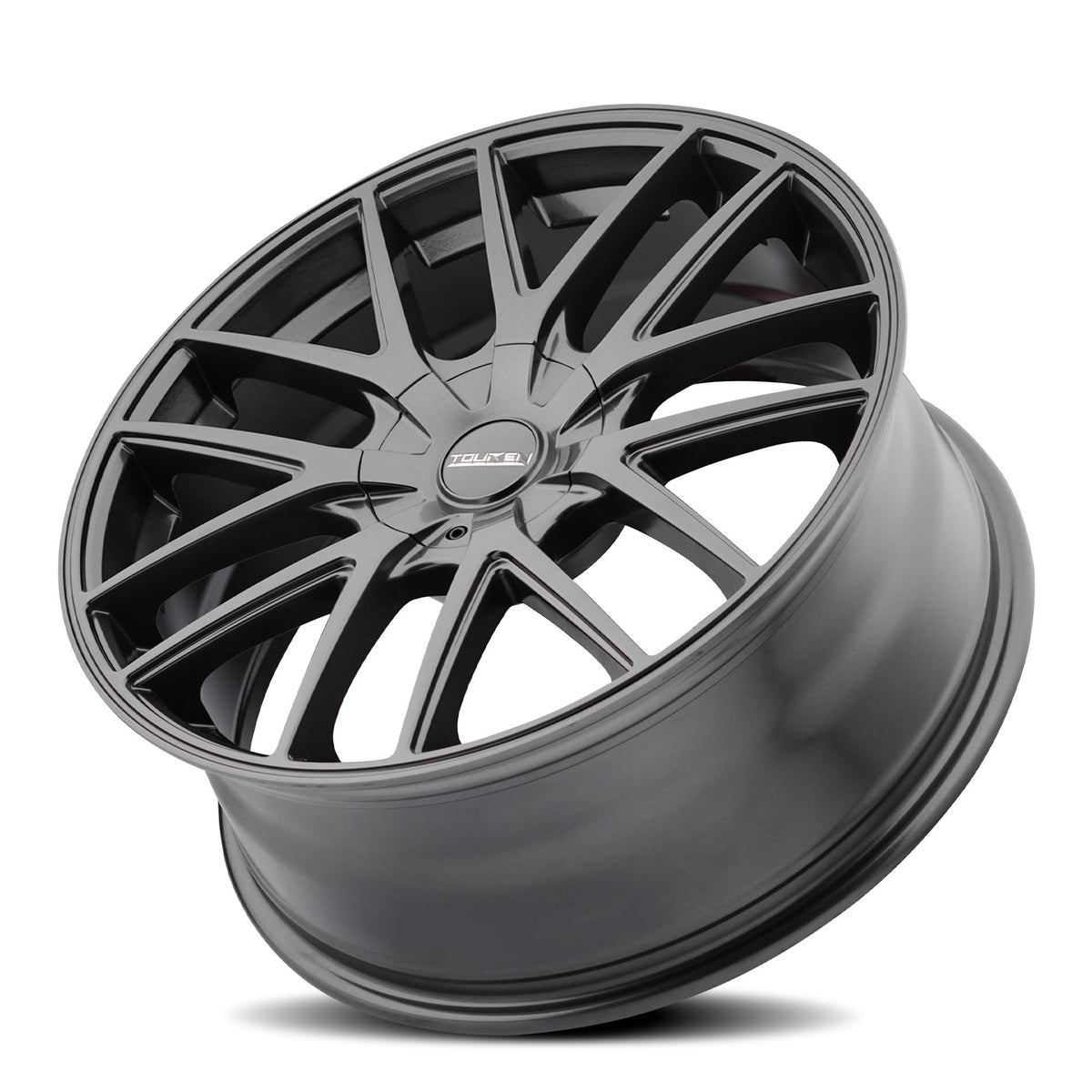

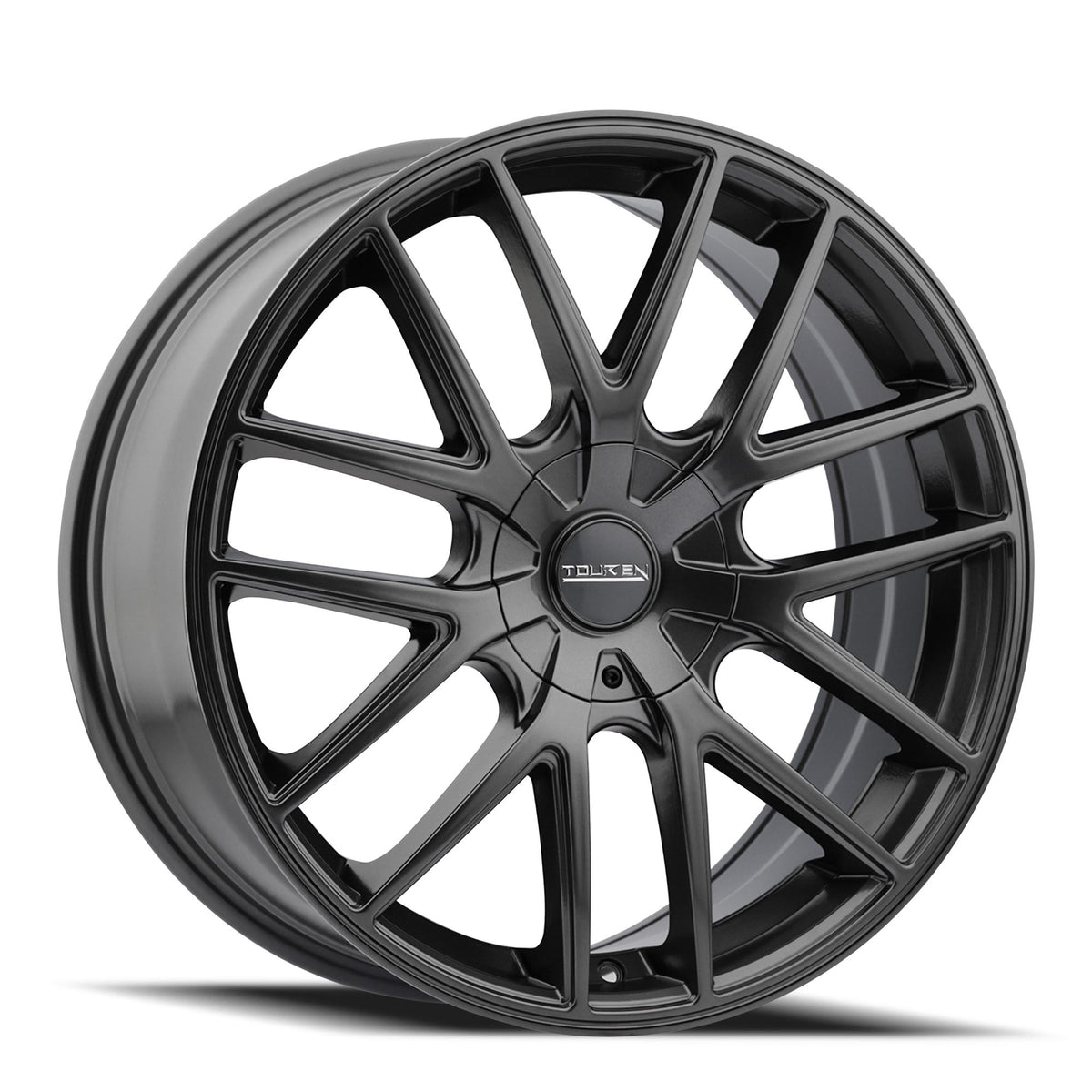

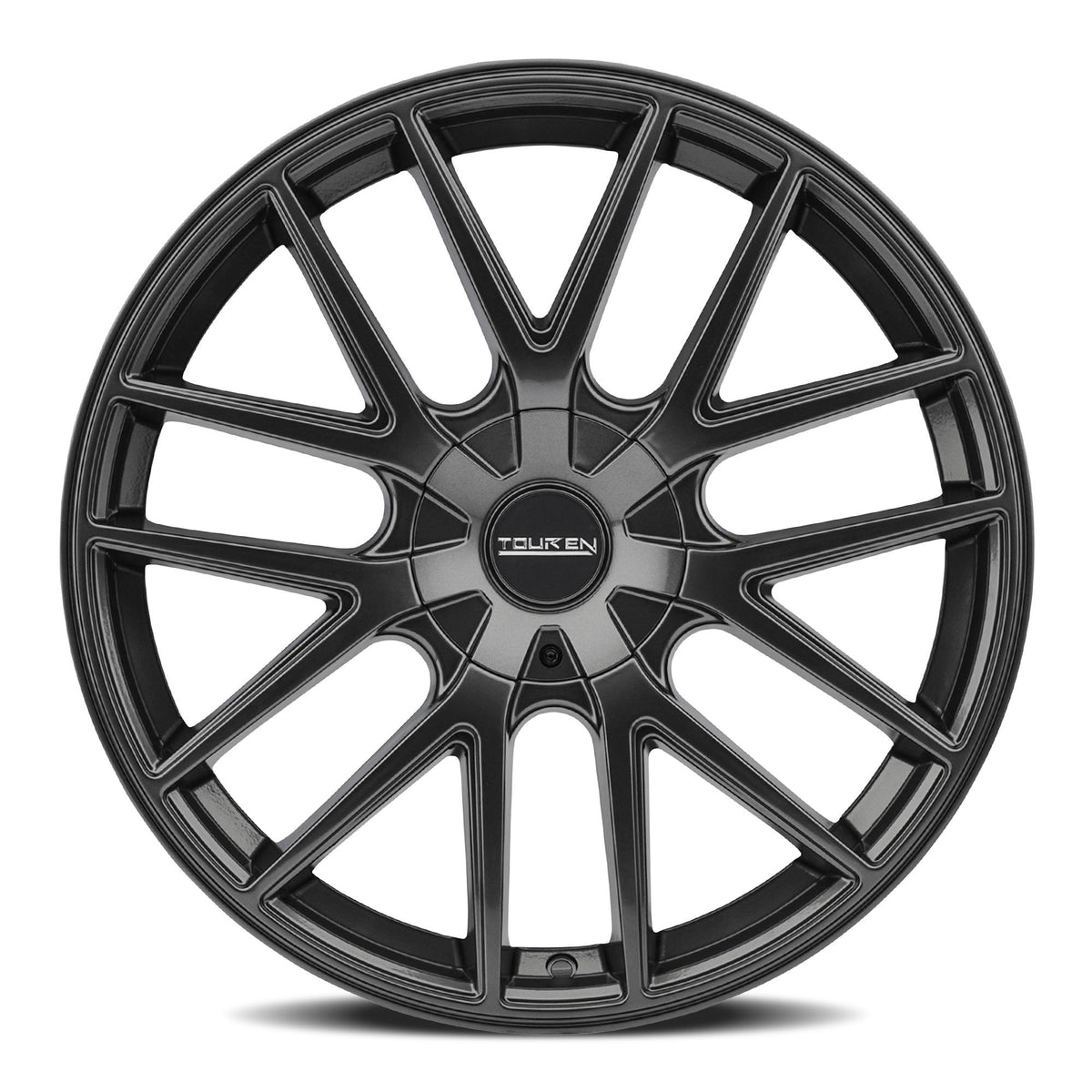

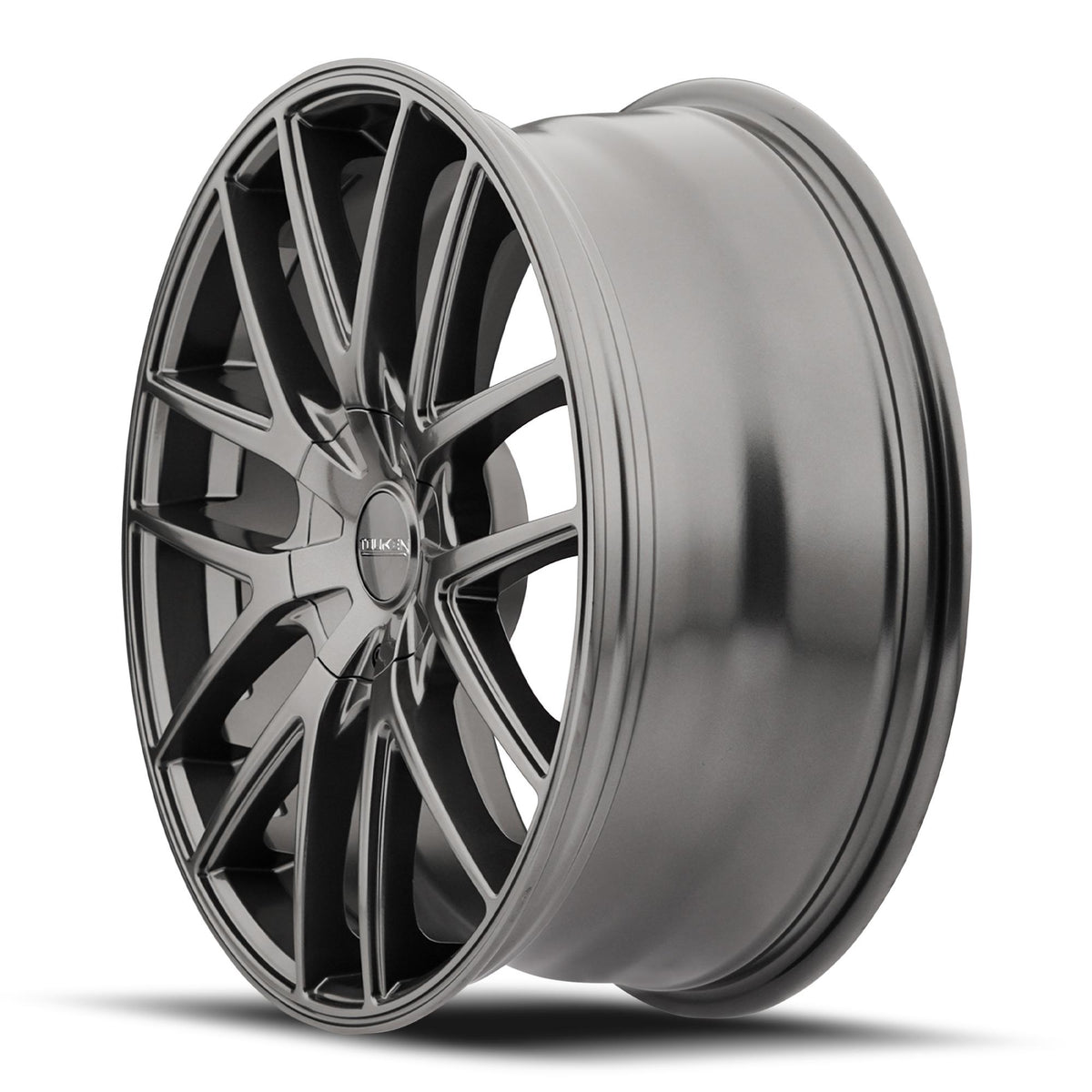

The Touren TR60 3260 wheel in the Gunmetal finish is available in 16x7, 17x7.5, 18x8, 19x8.5, 20x8.5 with 11 bolt patterns (4x100, 4x114.3, 5x100, 5x114.3, 5x112, 5x120, 5x110, 5x115, 4x108, 5x108, 5x127). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, Touren's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
3260-6701G 16x7 4x100 / 4x114.3 42 5.65 67.1 1600
3260-6703G 16x7 5x100 / 5x114.3 42 5.65 72.62 1600
3260-6709G 16x7 5x112 / 5x120 42 5.65 72.62 1600
3260-6711G 16x7 5x110 / 5x115 42 5.65 72.62 1600
3260-6720G 16x7 4x108 / 5x108 42 5.65 72.62 1600
3260-7701G 17x7.5 4x100 / 4x114.3 42 5.90 67.1 1600
3260-7703G 17x7.5 5x100 / 5x114.3 42 5.90 72.62 1600
3260-7709G 17x7.5 5x112 / 5x120 42 5.90 72.62 1600
3260-7711G 17x7.5 5x110 / 5x115 42 5.90 72.62 1600
3260-7711G20 17x7.5 5x110 / 5x115 20 5.04 72.62 1600
3260-7714G 17x7.5 5x108 / 5x114.3 42 5.90 72.62 1600
3260-7720G 17x7.5 4x108 / 5x108 42 5.90 72.62 1600
3260-7773G 17x7.5 5x127 42 5.90 71.5 1600
3260-8803G 18x8 5x100 / 5x114.3 40 6.07 72.62 1600
3260-8804G 18x8 5x114.3 / 5x120 20 5.29 74.1 1600
3260-8809G 18x8 5x112 / 5x120 40 6.07 74.1 1600
3260-8811G 18x8 5x110 / 5x115 40 6.07 72.62 1600
3260-8814G 18x8 5x108 / 5x114.3 40 6.07 72.62 1600
3260-8818G 18x8 5x115 / 5x120 20 5.29 74.1 1600
3260-8873G 18x8 5x127 40 6.07 71.5 1600
3260-9809G 19x8.5 5x112 / 5x120 40 6.32 74.1 1600
3260-9814G 19x8.5 5x108 / 5x114.3 40 6.32 74.1 1600
3260-9873G 19x8.5 5x127 40 6.32 71.5 1600
3260-2804G 20x8.5 5x114.3 / 5x120 20 5.54 74.1 1600
3260-2809G 20x8.5 5x112 / 5x120 40 6.32 72.62 1600
3260-2811G 20x8.5 5x110 / 5x115 40 6.32 72.62 1600
3260-2814G 20x8.5 5x108 / 5x114.3 40 6.32 72.62 1600
3260-2818G 20x8.5 5x115 / 5x120 20 5.54 74.1 1600
3260-2873G 20x8.5 5x127 40 6.32 71.5 1600
