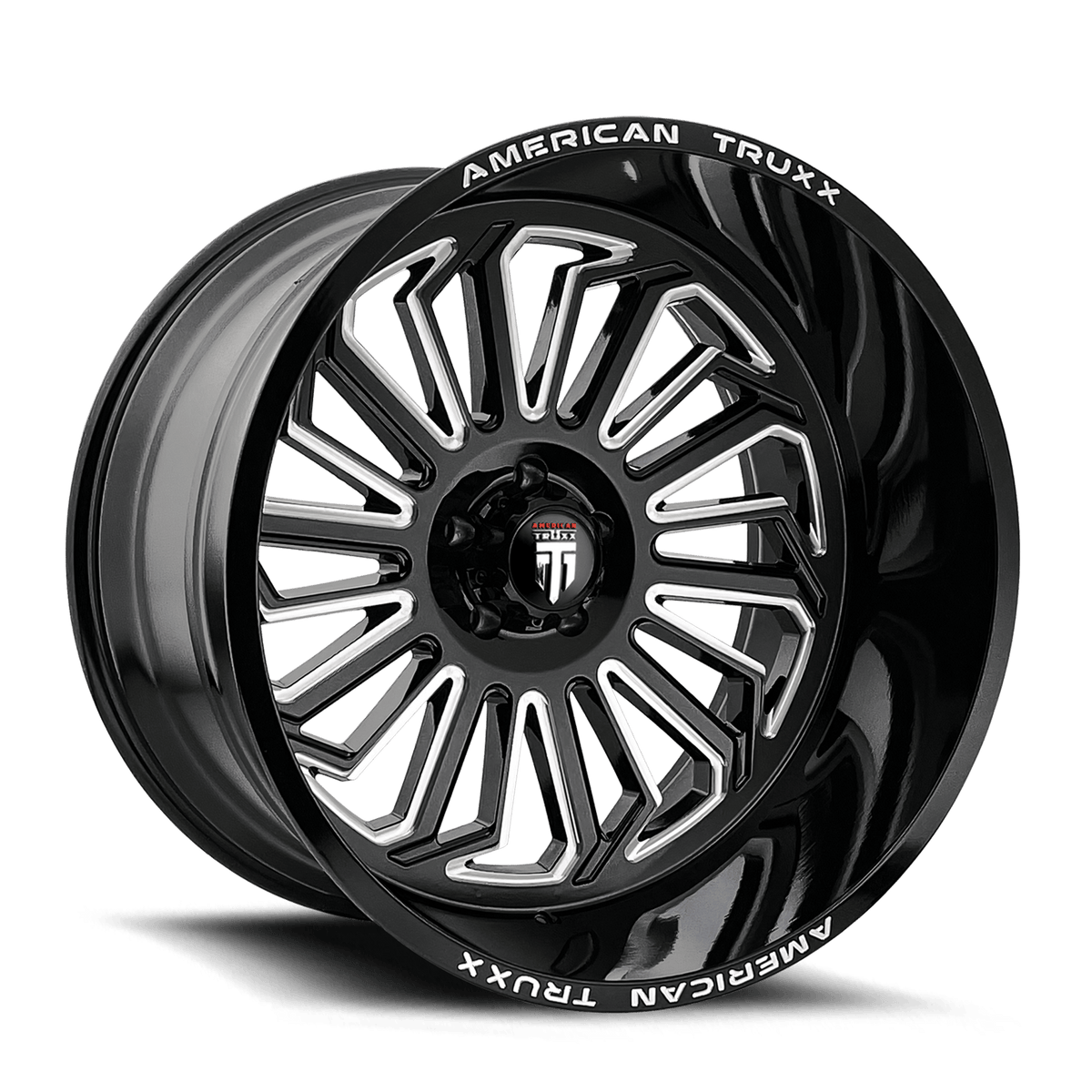

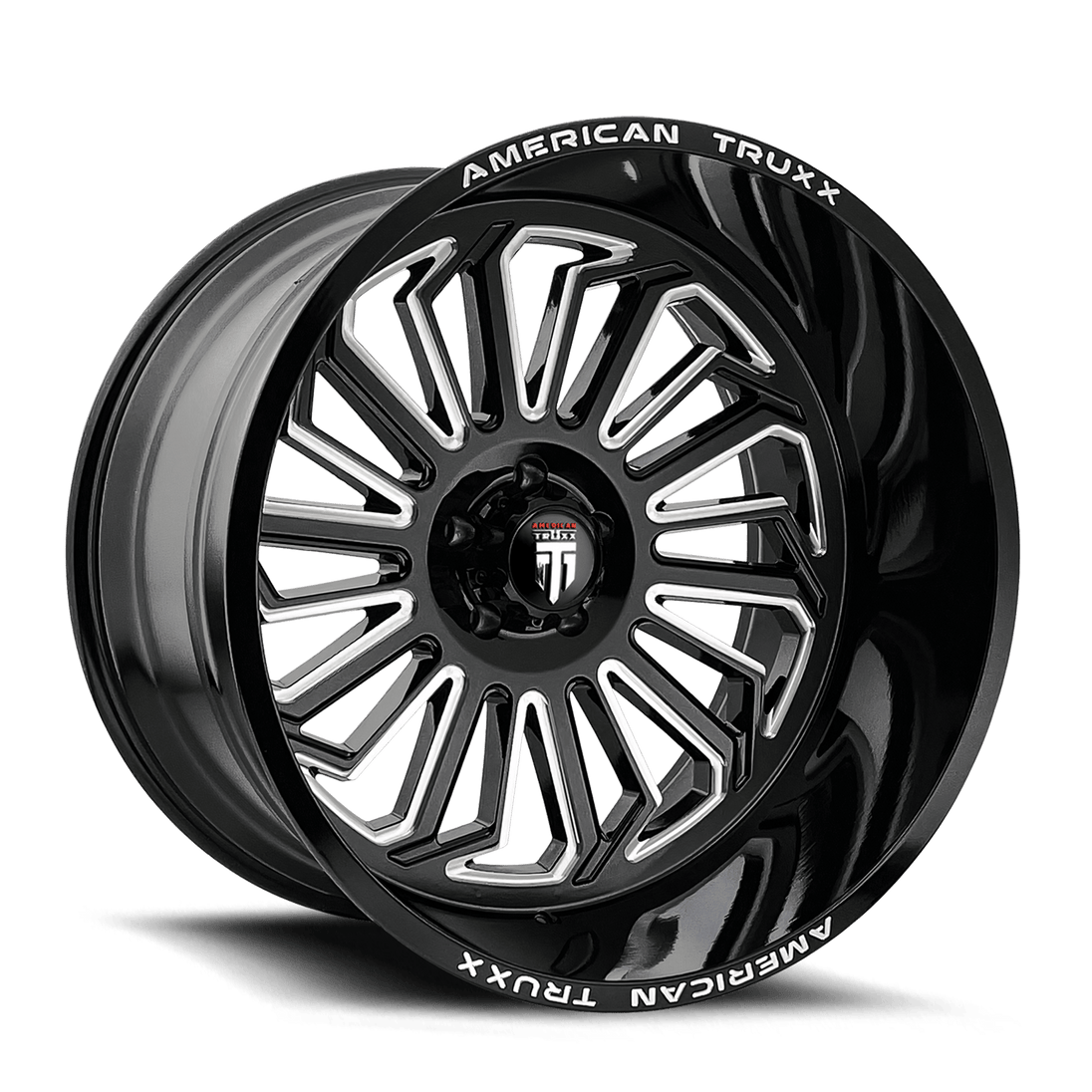

American Truxx Butcher AT1916 Wheel – Black w/ Milled Spokes

Product Description

The American Truxx Butcher AT1916 wheel in the Black w/ Milled Spokes finish is available in 20x9, 20x10, 20x12, 22x12, 24x14 with 7 bolt patterns (5x127, 5x139.7, 6x135, 6x139.7, 8x165.1, 8x170, 8x180). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, American Truxx's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
AT1916-2973M 20x9 5x127 -12.00 4.53 71.60 2,500
AT1916-2985M 20x9 5x139.7 -12.00 4.53 87.10 2,500
AT1916-2936M 20x9 6x135 -12.00 4.53 87.10 2,500
AT1916-2983M 20x9 6x139.7 -12.00 4.53 106.00 2,500
AT1916-2981M 20x9 8x165.1 -12.00 4.53 125.20 3,800
AT1916-2970M 20x9 8x170 -12.00 4.53 125.20 3,800
AT1916-2978M 20x9 8x180 -12.00 4.53 124.10 3,800
AT1916-2173M 20x10 5x127 -24.00 4.56 71.60 2,500
AT1916-2185M 20x10 5x139.7 -24.00 4.56 87.10 2,500
AT1916-2136M 20x10 6x135 -24.00 4.56 87.10 2,500
AT1916-2183M 20x10 6x139.7 -24.00 4.56 106.00 2,500
AT1916-2181M 20x10 8x165.1 -24.00 4.56 125.20 3,800
AT1916-2170M 20x10 8x170 -24.00 4.56 125.20 3,800
AT1916-2178M 20x10 8x180 -24.00 4.56 124.10 3,800
AT1916-2273M 20x12 5x127 -25.00 5.52 71.60 2,500
AT1916-2285M 20x12 5x139.7 -25.00 5.52 87.10 2,500
AT1916-2236M 20x12 6x135 -25.00 5.52 87.10 2,500
AT1916-2283M 20x12 6x139.7 -25.00 5.52 106.00 2,500
AT1916-2281M 20x12 8x165.1 -25.00 5.52 125.20 3,800
AT1916-2270M 20x12 8x170 -25.00 5.52 125.20 3,800
AT1916-22273M 22x12 5x127 -51.00 4.49 71.60 2,500
AT1916-22285M 22x12 5x139.7 -51.00 4.49 87.10 2,500
AT1916-22236M 22x12 6x135 -51.00 4.49 87.10 2,500
AT1916-22283M 22x12 6x139.7 -51.00 4.49 106.00 2,500
AT1916-22281M 22x12 8x165.1 -51.00 4.49 125.20 3,800
AT1916-22270M 22x12 8x170 -51.00 4.49 125.20 3,800
AT1916-24473M 24x14 5x127 -76.00 4.51 71.60 2,500
AT1916-24485M 24x14 5x139.7 -76.00 4.51 87.10 2,500
AT1916-24436M 24x14 6x135 -76.00 4.51 87.10 2,500
AT1916-24483M 24x14 6x139.7 -76.00 4.51 106.00 2,500
AT1916-24481M 24x14 8x165.1 -76.00 4.51 125.20 3,800
AT1916-24470M 24x14 8x170 -76.00 4.51 125.20 3,800
