Product Description

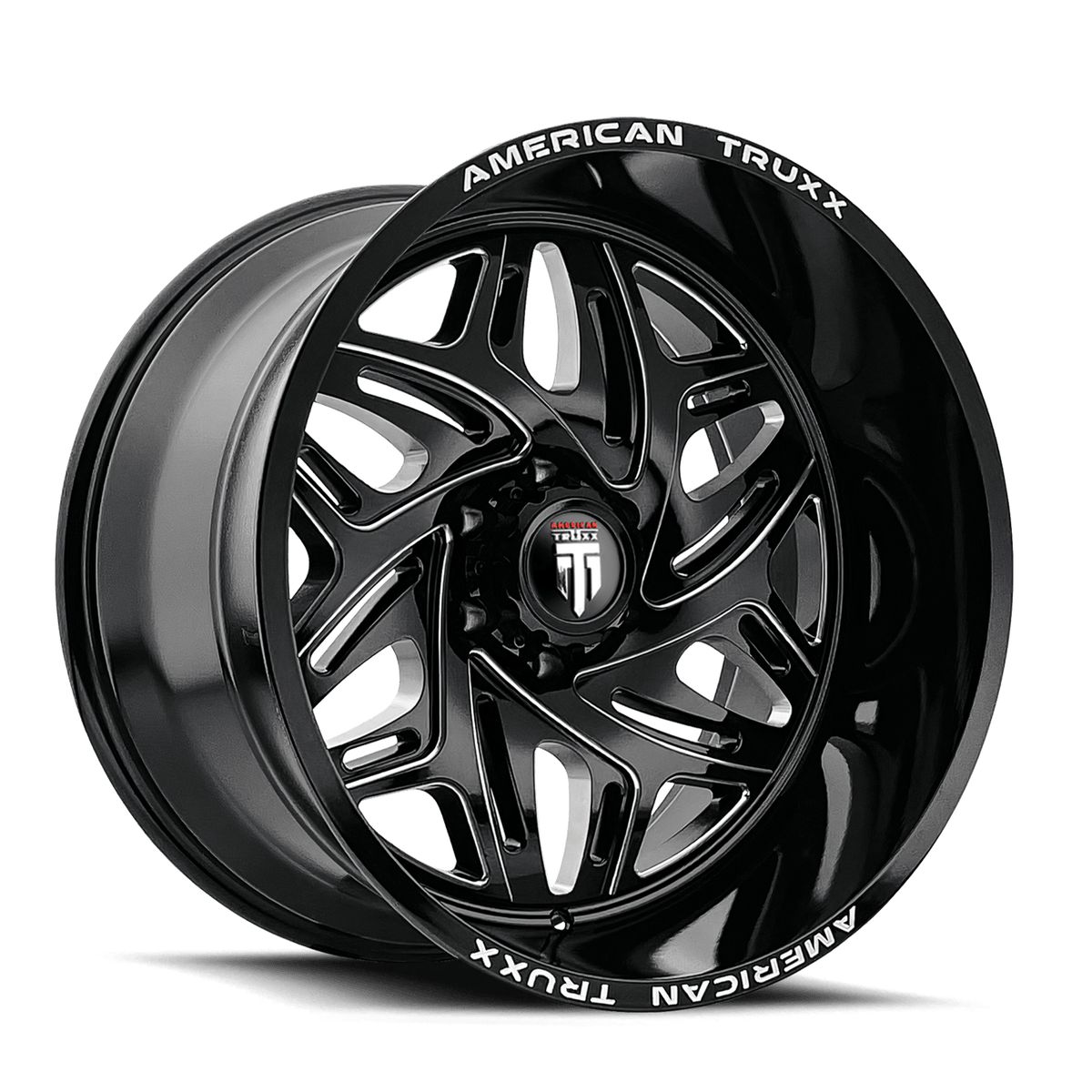

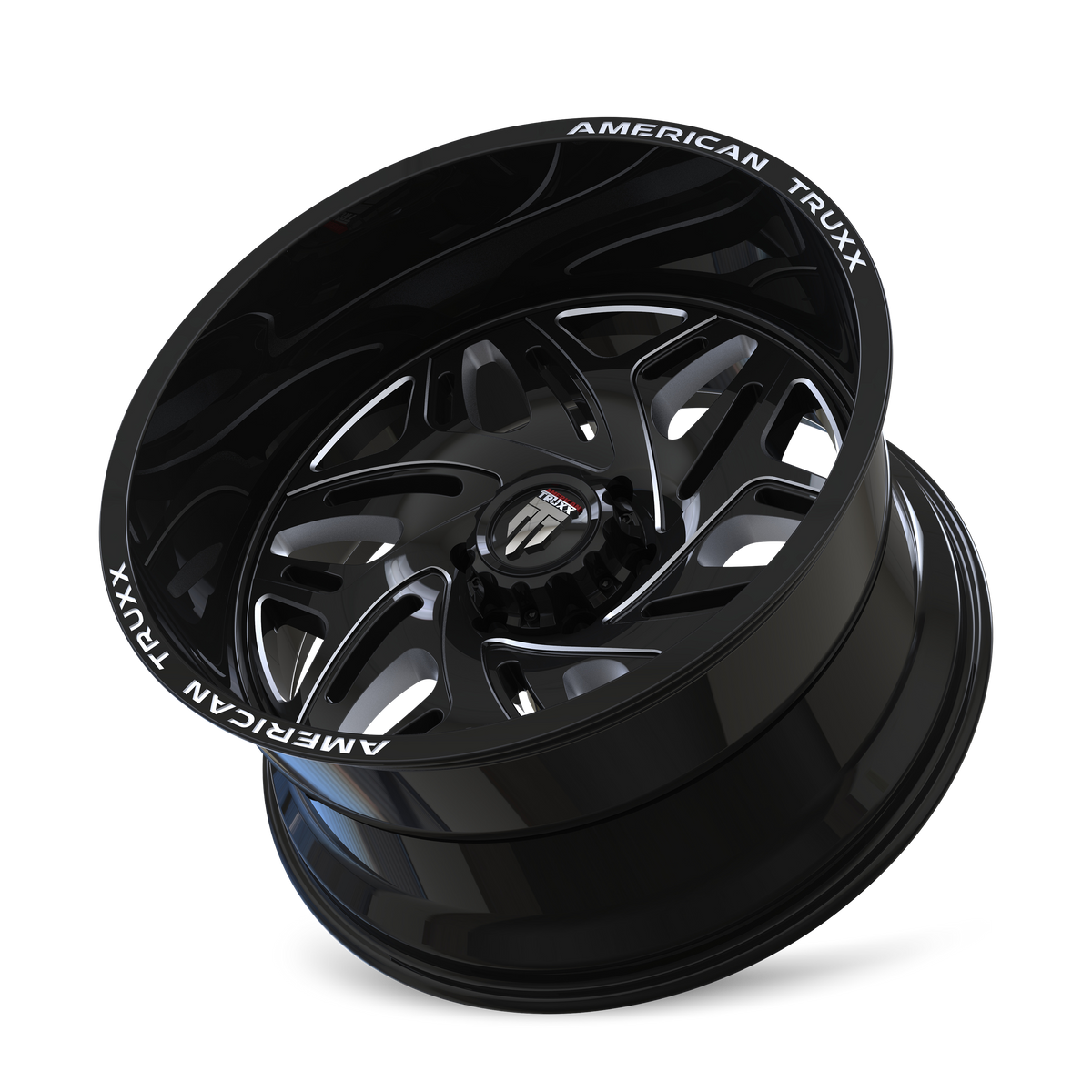

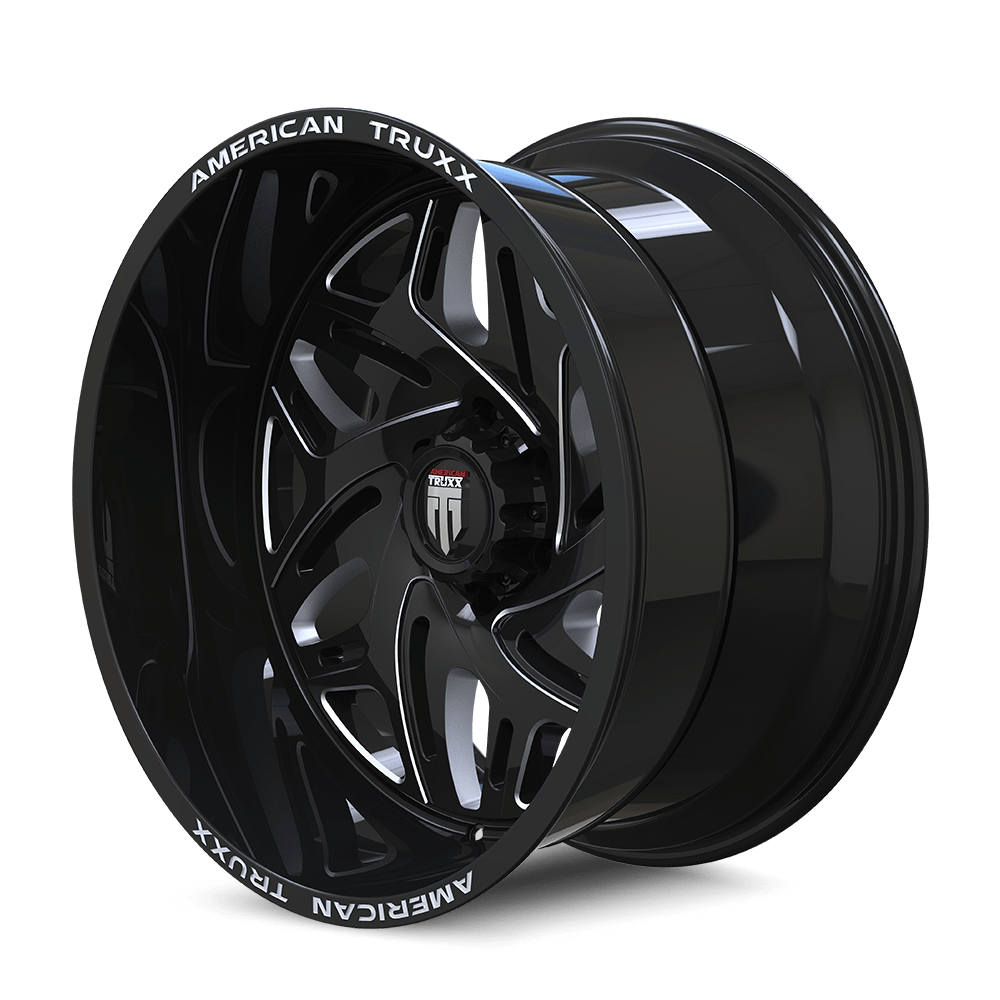

The American Truxx Euphoria AT1914 wheel in the Black w/ Milled Spokes finish is available in 20x9, 20x10, 22x12 with 8 bolt patterns (6x135, 5x150, 8x170, 5x127, 8x180, 8x165.1, 6x139.7, 5x139.7). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, American Truxx's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
AT1914-2936BM 20x9 6x135 0 5.00
AT1914-2950BM 20x9 5x150 0 5.00
AT1914-2970BM 20x9 8x170 0 5.00
AT1914-2973BM 20x9 5x127 0 5.00
AT1914-2978BM 20x9 8x180 0 5.00
AT1914-2981BM 20x9 8x165.1 0 5.00
AT1914-2983BM 20x9 6x139.7 0 5.00
AT1914-2985BM 20x9 5x139.7 0 5.00
AT1914-2136BM 20x10 6x135 -19 4.75
AT1914-2170BM 20x10 8x170 -19 4.75
AT1914-2173BM 20x10 5x127 -19 4.75
AT1914-2178BM 20x10 8x180 -19 4.75
AT1914-2181BM 20x10 8x165.1 -19 4.75
AT1914-2183BM 20x10 6x139.7 -19 4.75
AT1914-222236BM 22x12 6x135 -44 4.77
AT1914-222270BM 22x12 8x170 -44 4.77
AT1914-222273BM 22x12 5x127 -44 4.77
AT1914-222281BM 22x12 8x165.1 -44 4.77
AT1914-222283BM 22x12 6x139.7 -44 4.77
