Product Description

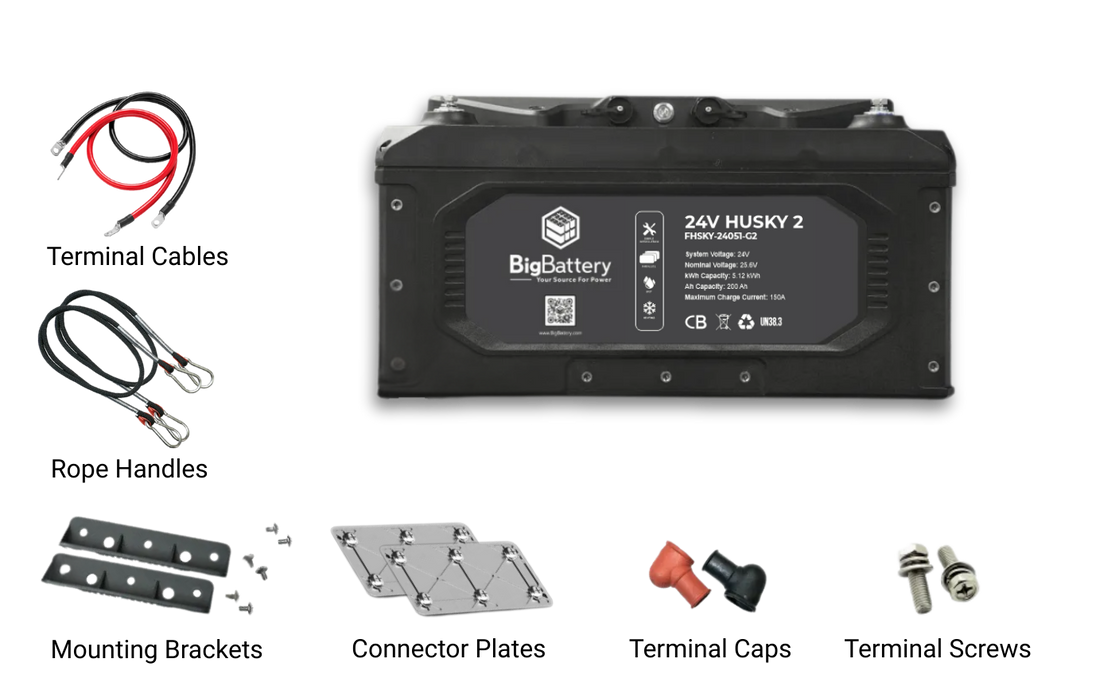

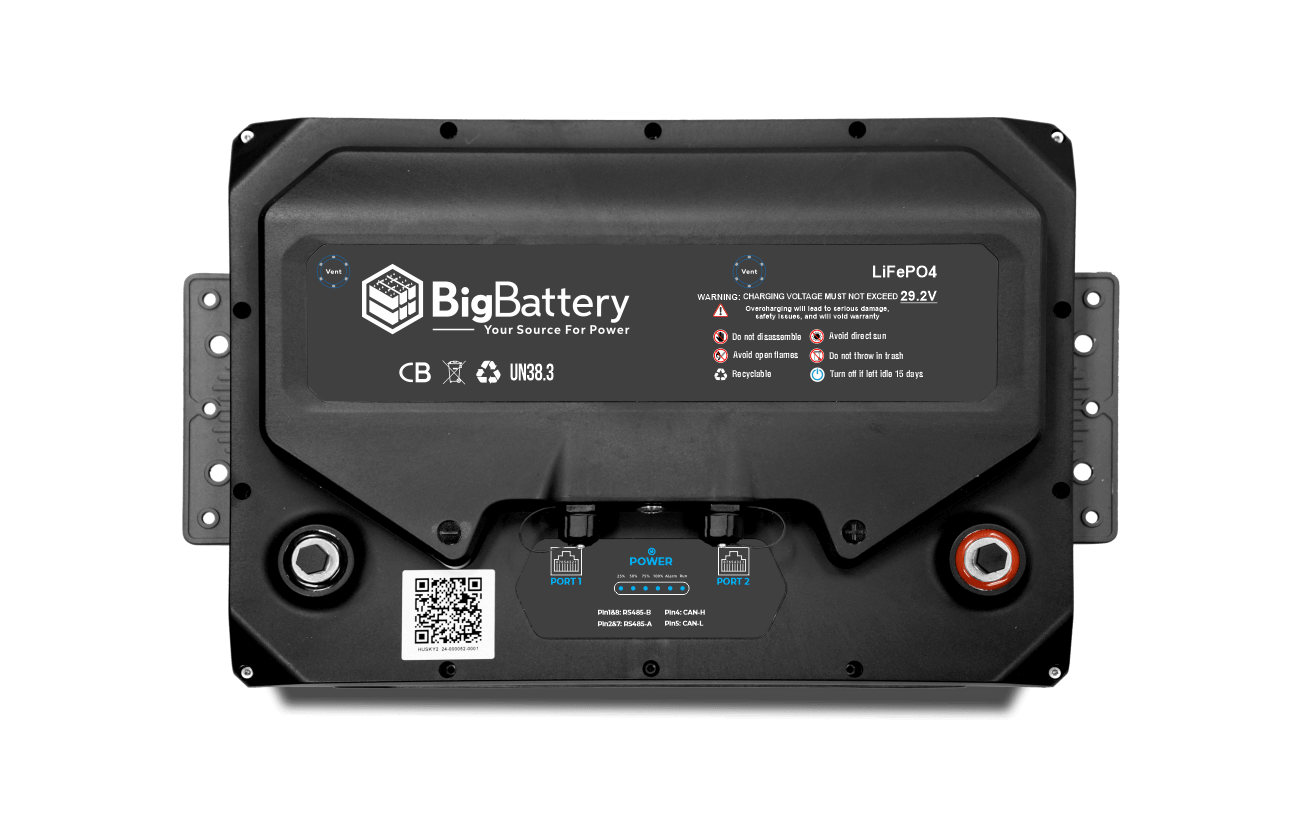

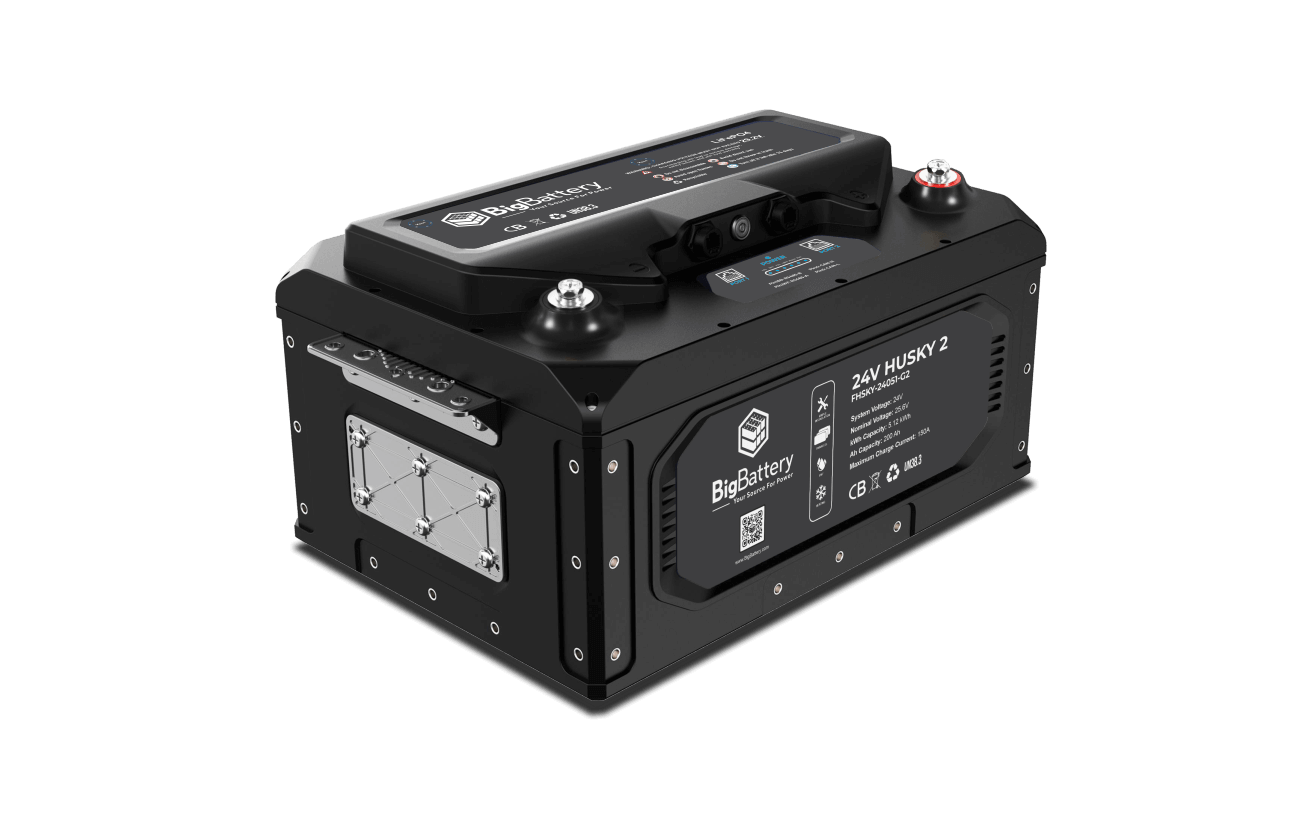

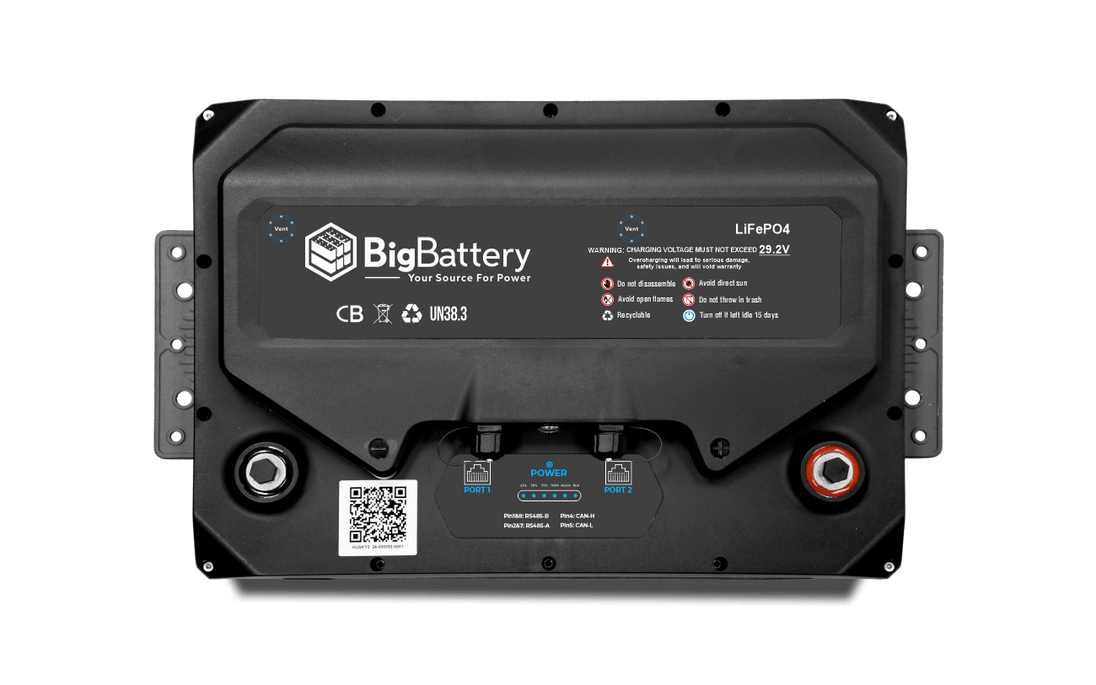

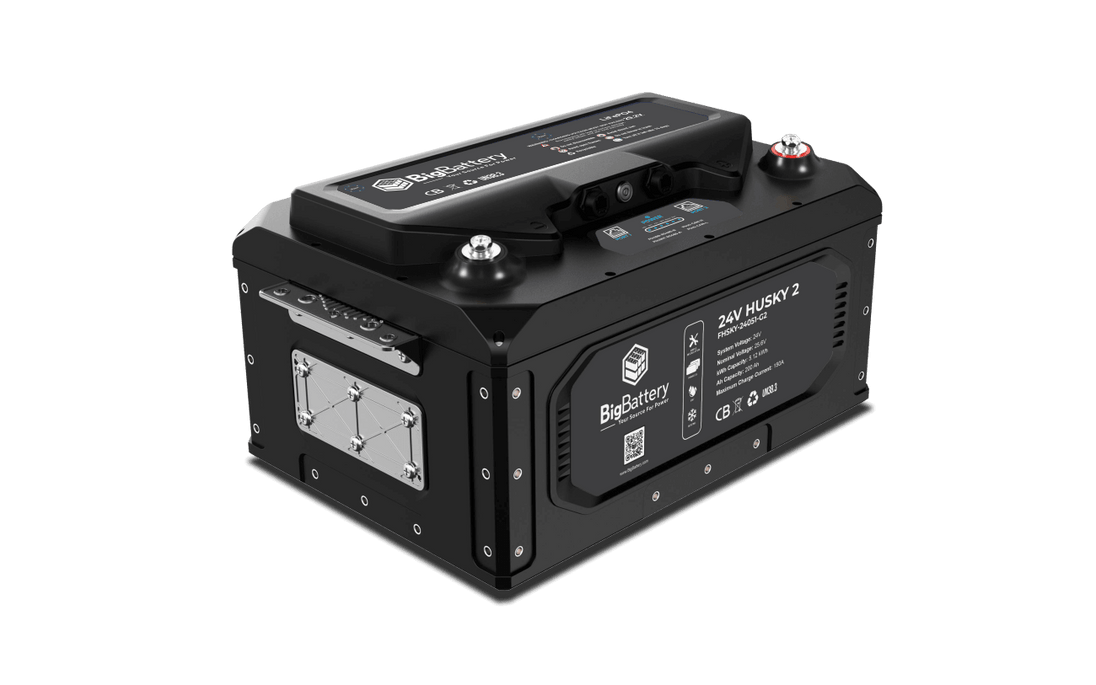

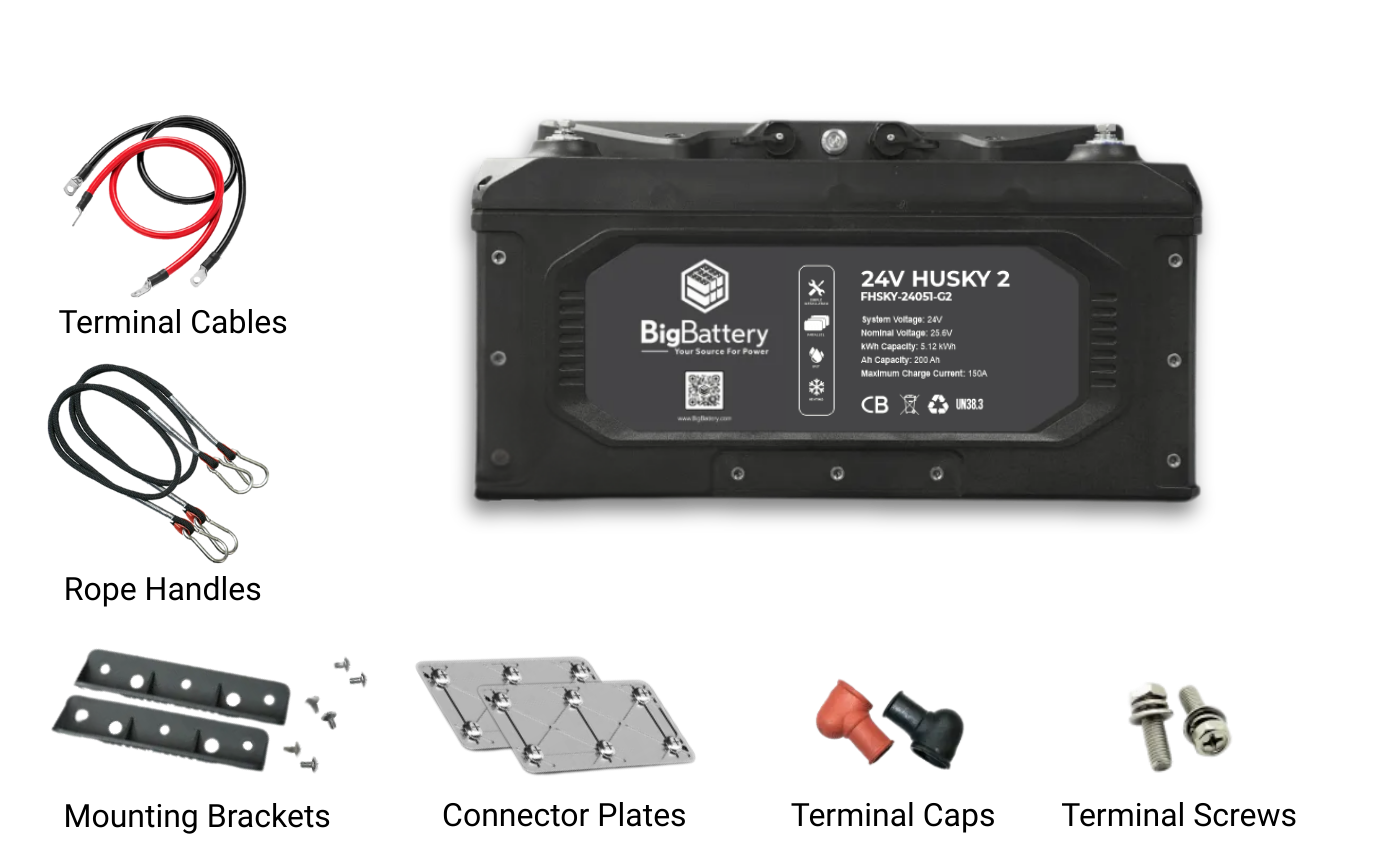

The BigBattery 24V HUSKY 2 INV delivers 5.12 kWh of LiFePO4 storage — 200Ah at 24V — in a single battery built for RV, off-grid, and marine systems. The INV designation is BigBattery's inverter-communications version: CANBus/RS485 ports let the battery share data with compatible inverter systems for coordinated charging and monitoring. OffGrid Horizon is a family-owned authorized BigBattery partner serving customers across the US.

Who This Is For

A 24V bank moves the same power as 12V at half the current, which means thinner cabling and less voltage drop. That makes this battery a fit for larger RVs (BigBattery lists Class A, B, and C RVs), boats, and small off-grid homes running 24V electrical systems — or builders stepping up from 12V to support a larger inverter. Per BigBattery, the INV communications are designed for 24V Victron inverter systems; in other 24V setups it operates as a standard high-capacity LiFePO4 battery.

Key Features

  • 5.12 kWh / 200Ah at 24V — whole-system capacity from one battery
  • Inverter communications (INV) — CANBus/RS485 ports for integration with compatible 24V Victron systems, per BigBattery
  • 200A max continuous discharge (5,120W) and 500A peak discharge (5 seconds max), per BigBattery's published ratings
  • Self-heating function for cold-climate use, with a published charge temperature range of -4°F to 113°F
  • IP65 / NEMA 4X protection rating per BigBattery
  • Parallel expansion — up to 16 batteries, per BigBattery
  • CE and UN38.3 certificates published by BigBattery

Why BigBattery

BigBattery is a US-based company building LiFePO4 battery systems for RV, off-grid, and marine applications, and it backs the HUSKY 2 line with a 12-Year Warranty and Lifetime USA-Based Tech Support, as published on bigbattery.com. Buying through OffGrid Horizon, an authorized partner, keeps that factory warranty intact.

Specifications

Nominal voltage 25.6V (24V system)
Capacity 200Ah / 5.12 kWh
Chemistry LiFePO4 (lithium iron phosphate)
Max continuous discharge 200A
Max continuous power 5,120W
Peak discharge 500A (5 seconds max)
Max charge current 150A
Charge temperature -4°F to 113°F
Discharge temperature -4°F to 131°F
Self-heating Yes
Communication CANBus / RS485
Parallel capability Up to 16 units

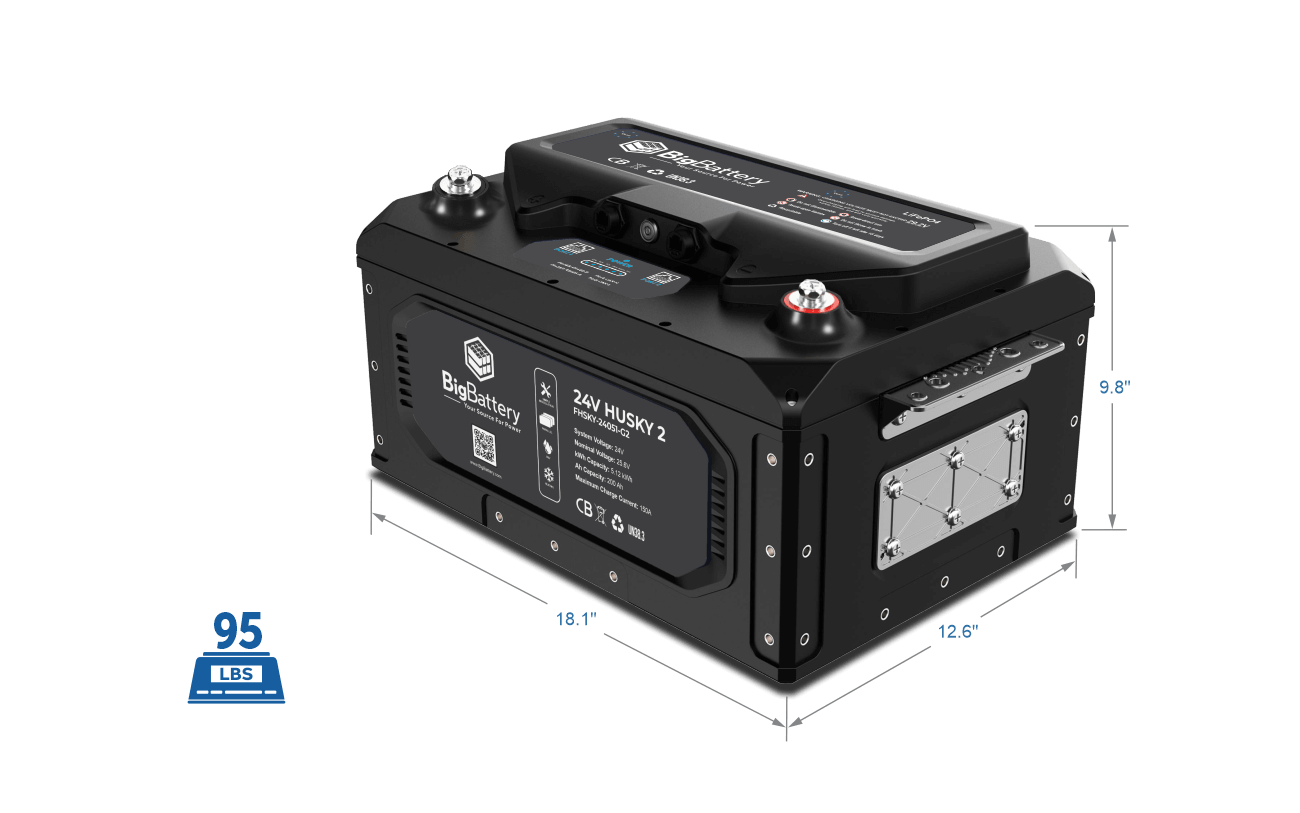

Dimensions 18.1 in W x 12.6 in D x 9.8 in H
Weight 95 lb
Protection rating IP65 / NEMA 4X
Certifications CE, UN38.3 (certificates published by BigBattery)
Warranty 12-Year Warranty, as published by BigBattery
SKU FHSKY-24051-G2-INV

All specifications per BigBattery's published product page and spec sheet.

12V vs 24V vs 48V — Picking the Right HUSKY

All three HUSKY 2 INV models store the same 5.12 kWh; the difference is system voltage. Choose this 24V model when your electrical system and charge sources are already 24V, or when you want lower current than 12V without rebuilding around a 48V inverter. If your appliances and chargers are 12V, the 12V HUSKY 2 INV (400Ah) is the simpler drop-in; if you are designing around a modern 48V off-grid inverter, look at the 48V HUSKY 2 INV (100Ah).

Installation

Mount the battery in a dry, ventilated compartment, with cabling and fusing rated for up to 200A of continuous draw. Set chargers and solar controllers to a LiFePO4 profile, and follow BigBattery's manual for communication wiring to a compatible inverter. For marine installations and RV chassis wiring, we recommend a qualified installer working to applicable standards such as ABYC.

Warranty & Support

Per BigBattery, the HUSKY 2 INV carries a 12-Year Warranty with Lifetime USA-Based Tech Support. As a family-owned authorized BigBattery partner, OffGrid Horizon can help with registration, troubleshooting, and claims. Returns require a Return Merchandise Authorization (RMA) — contact us before shipping anything back. Call (302) 496-3554.

Shipping

Ships within the United States. At 95 lb, this battery travels in protective packaging; please inspect the carton on delivery, note any damage with the carrier, and contact us right away so we can make it right.

Frequently Asked Questions

What does INV mean?

It is BigBattery's inverter-communications version of the HUSKY 2. CANBus/RS485 ports let the battery report data to compatible inverter systems for closed-loop charging and monitoring.

Which inverters does it communicate with?

BigBattery lists compatibility with 24V Victron inverter systems via communication protocols. With other equipment it works as a standard 24V LiFePO4 battery, without communications.

Why choose 24V over 12V?

The same wattage at half the current: smaller-gauge cable, less resistive loss, and a better match for mid-size inverters. If your existing loads are 12V, staying at 12V avoids converters.

Can it charge below freezing?

Per BigBattery, the battery includes a self-heating function and publishes a charge range of -4°F to 113°F. Follow the manual's cold-weather guidance.

How large an inverter can I pair with it?

Per BigBattery, max continuous power is 5,120W (200A continuous). Size the inverter so its battery-side draw stays within that rating, and confirm against your inverter's specifications.

Can I add more batteries later?

Yes — per BigBattery, up to 16 HUSKY 2 units can be connected in parallel.

Is it suitable for boats?

BigBattery positions the HUSKY 2 for marine systems and rates the enclosure IP65 / NEMA 4X. It is not intended for submersion; have marine wiring performed by a qualified installer.

Weighing 12V against 24V for your build? Call OffGrid Horizon at (302) 496-3554 — we are a family-owned shop and glad to talk through your system — or browse the full BigBattery collection.
