Product Description

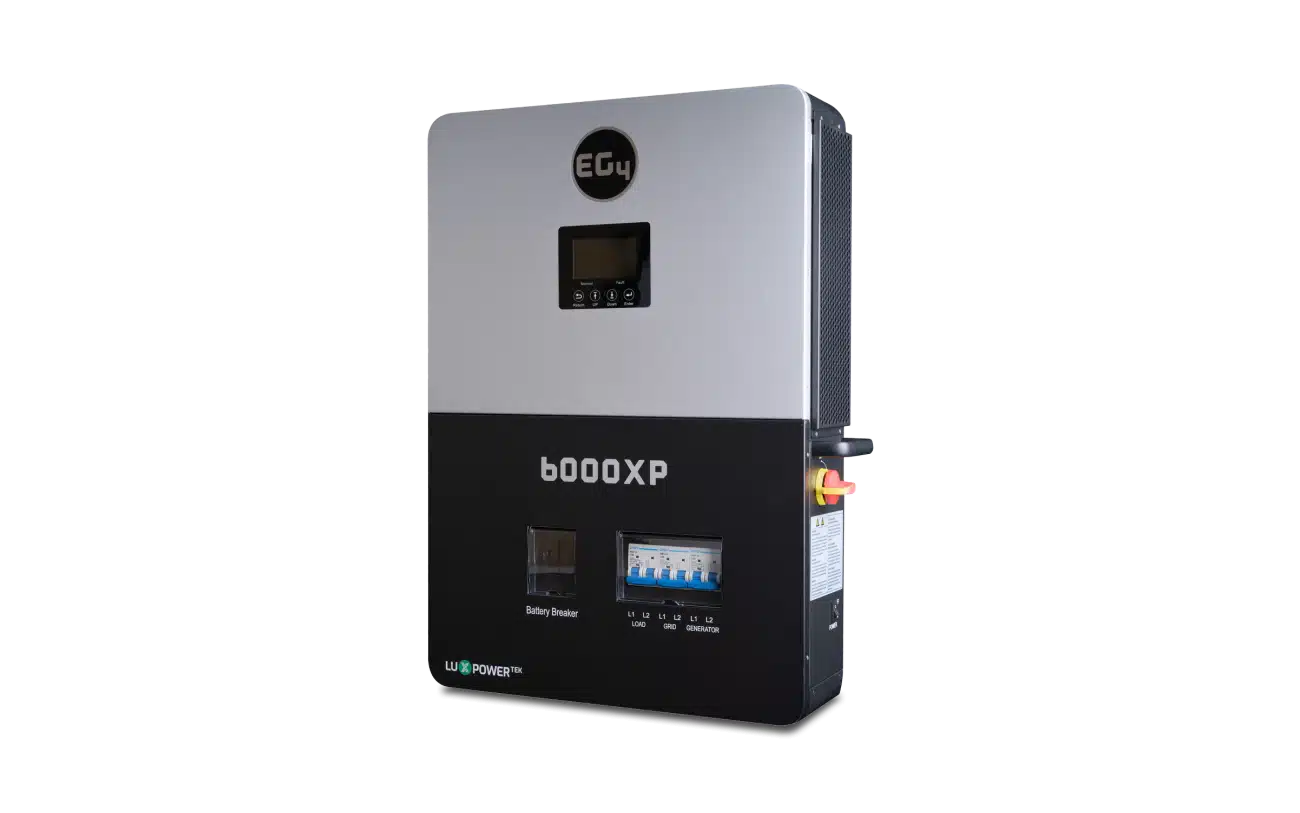

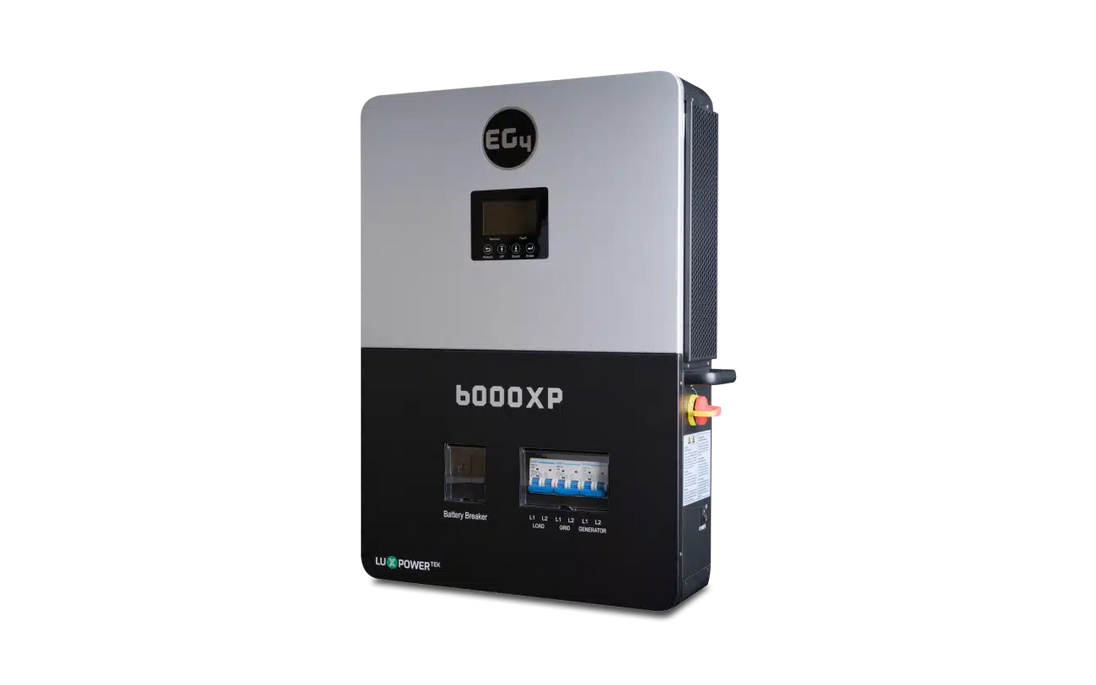

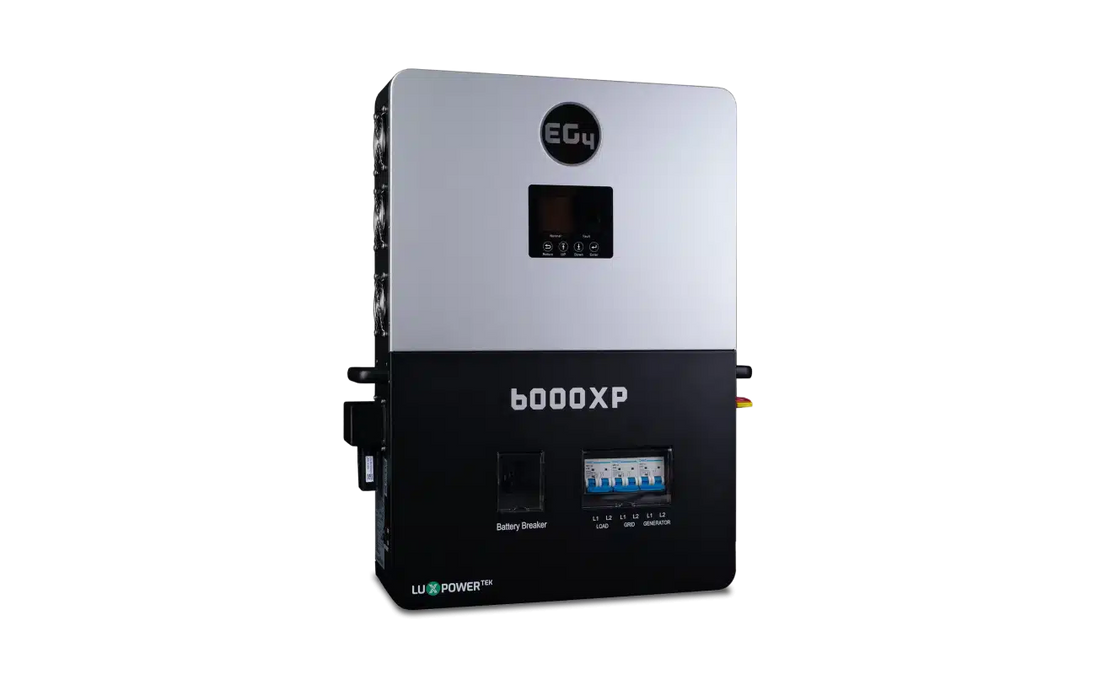

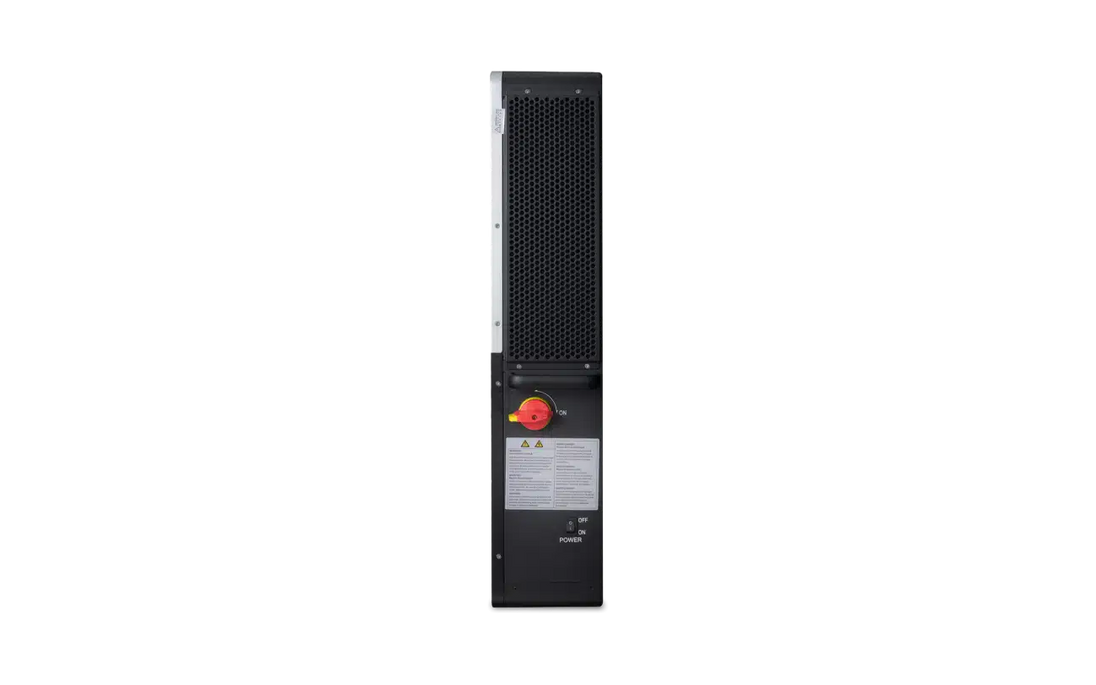

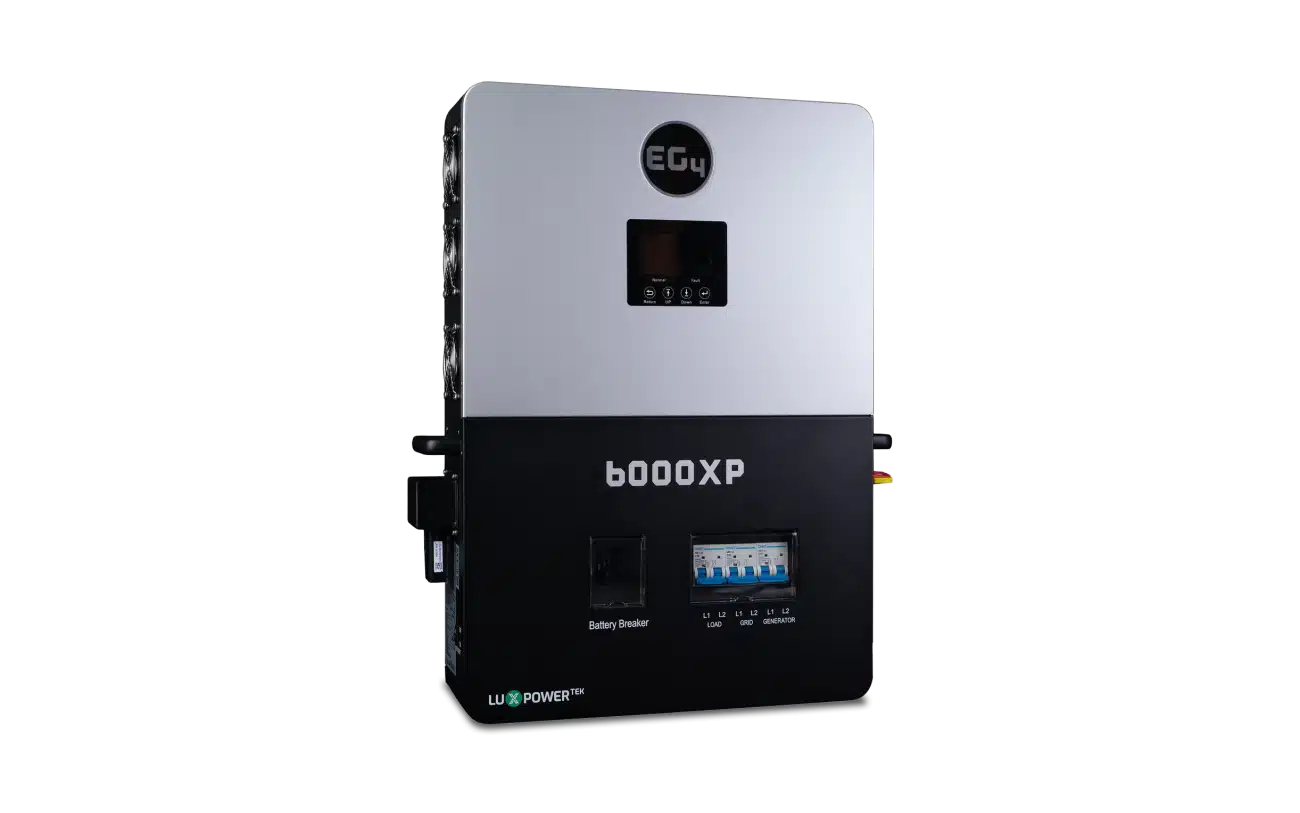

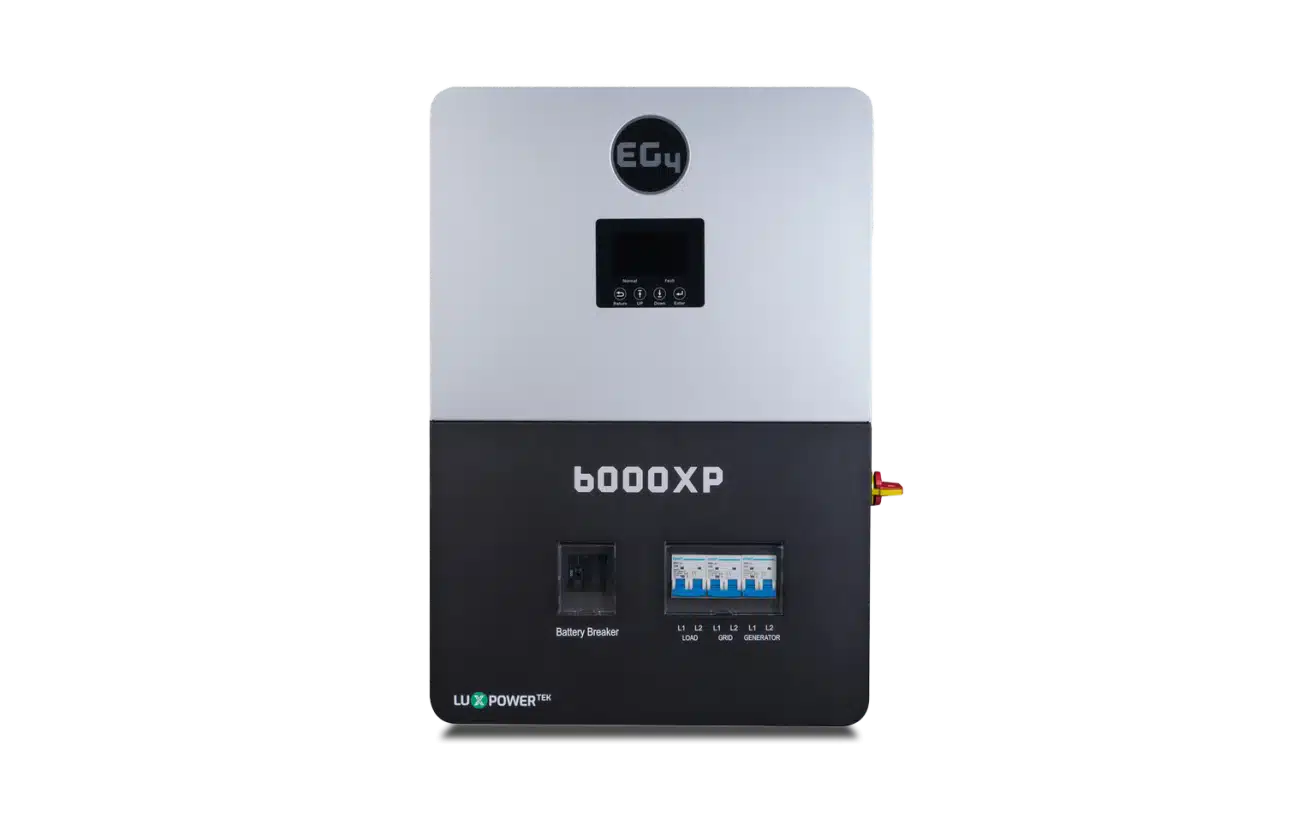

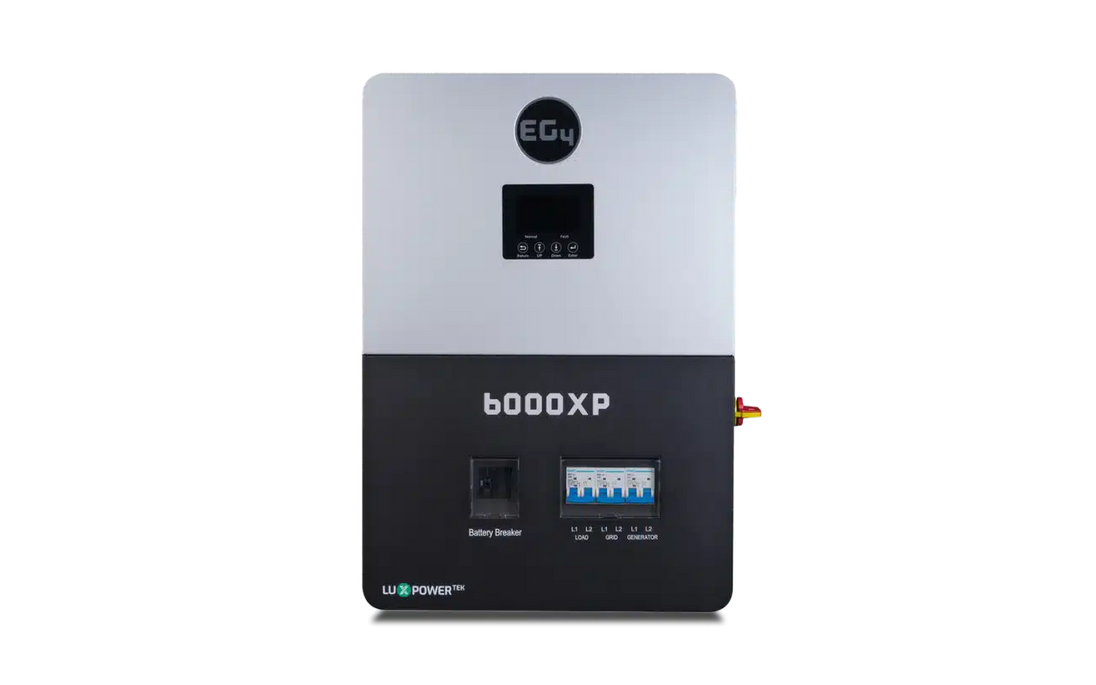

The EG4 6000XP is an all-in-one off-grid inverter that combines a 6,000W split-phase 120/240V inverter, dual MPPT solar charge controllers, and a battery charger in a single wall-mounted unit. Per EG4, it accepts up to 8,000W of solar input (4,000W per MPPT) and charges a 48V battery bank at up to 125A from solar, with an AC input for charging from a generator or the grid where available. There is no separate charge controller to buy, wire, or configure.

Who This Is For

Cabins, tiny homes, homesteads, well houses, and workshops running essential-to-moderate loads without a utility connection — or properties that want battery-based power independent of the grid. It delivers true 120/240V split-phase output, so standard North American panels and 240V equipment such as well pumps work without an autotransformer. If your property runs heavy simultaneous loads like central air plus shop equipment, look at the EG4 12000XP V2 instead.

Key Features

  • 6,000W continuous split-phase 120/240V output, with surge capacity of 12,000W for roughly 3.5 seconds per EG4's spec sheet — headroom for motor starts
  • 8,000W PV input across two MPPTs (17A rated / 25A Isc each, 120–385 VDC MPPT range, 480 VDC max input)
  • 48V battery charging up to 125A from solar and up to 115A from the AC input, with closed-loop communications for compatible lithium batteries
  • Parallel up to 16 units per EG4 for larger systems as your loads grow
  • Fast internal transfer between AC input and inverter output — under 15 ms for a single unit per EG4
  • EG4 Connect monitoring over Wi-Fi, with RS485 and CAN communication ports
  • UL 1741 listed and FCC Part 15 Class B per EG4's published spec sheet

Why EG4

EG4 Electronics is a US-based manufacturer that publishes full spec sheets, manuals, and wiring diagrams for its equipment and maintains US-based technical support. Its inverters and batteries are designed to work together with closed-loop communications, so the inverter charges based on data reported by the battery rather than voltage assumptions.

Specifications

Specifications below are per EG4's published 6000XP spec sheet.

Continuous output 6,000W, split-phase 120/240VAC, 60 Hz
Surge capacity 12,000W (~3.5 s) / 11,000W (~5 s)
Max continuous output current 37.5A @ 240VAC
PV input 8,000W max utilized (4,000W per MPPT), 2 MPPTs
MPPT voltage range 120–385 VDC (startup 100 VDC ± 10; max input 480 VDC)
PV current per MPPT 17A rated / 25A short-circuit (Isc)
Battery voltage 48V nominal; 46.4–60 VDC lithium (38.4–60 VDC lead-acid)
Max charge current 125A solar / 115A AC; 140A max discharge
AC input 120/240VAC (L1/L2/N), up to 9,000W — grid or generator
Transfer time <15 ms single / <30 ms parallel
Idle consumption <30W with PV; ~50W on battery
MPPT efficiency 99% (93% battery charge/discharge efficiency)
Parallel capability Up to 16 units
Certifications UL 1741; FCC Part 15 Class B
Enclosure / environment IP20 (indoor); 32–113 °F operating
Dimensions / weight 18 x 25.5 x 5.25 in; 52.9 lb
Communications / monitoring RS485, Wi-Fi, CAN; EG4 Connect app
Warranty 5 years per EG4 (registration required within first year)
SKU INV026

Off-Grid by Design

The 6000XP is an off-grid inverter: it does not export power to the utility grid or participate in net metering. Practically, that means no utility interconnection agreement is required for the inverter's grid-export function — the AC input is used only to charge batteries and pass power through to your loads from a generator or the grid. Solar you produce is used to charge batteries and run loads; excess production beyond that is curtailed rather than sold back. If selling power to your utility matters to you, consider a hybrid model such as the EG4 FlexBOSS18 or 18kPV. Note that connecting any inverter to premises wiring still involves local permitting and code compliance.

Battery Compatibility

The 6000XP is designed for 48V battery banks and supports closed-loop communications with EG4 batteries, so state of charge comes from the battery's BMS rather than voltage estimates. The EG4 WallMount 280Ah all-weather battery (14.3 kWh) and the EG4 WallMount 314Ah all-weather battery (16 kWh) are natural pairings; both are 48V wall-mounted LiFePO4 units. Lead-acid banks are also supported within the published voltage range.

Installation

The 6000XP is wall-mounted and rated IP20, so it belongs indoors or in a protected, dry space. Tying its 120/240V output into a load panel — grounding, bonding, overcurrent protection, and code compliance — should be performed by a licensed electrician, and most jurisdictions require a permit for this work even off-grid. Plan conductor sizing around the full 37.5A output and the battery cabling around 140A discharge.

Warranty & Support

Per EG4, the 6000XP carries a 5-year parts-or-product replacement warranty; EG4 requires registration within the first year of purchase or proof of purchase from an authorized distributor. OffGrid Horizon is a family-owned authorized EG4 dealer — if you ever need warranty help, call us at (302) 496-3554 and we will work the process with you and EG4.

Shipping

Ships within the contiguous United States. At 52.9 lb boxed, the 6000XP typically ships by ground carrier. Inspect the carton on arrival and note any visible damage with the carrier before signing; contact us right away if anything looks wrong and we will make it right.

Frequently Asked Questions

Does it need solar panels to work?

No. It runs as an inverter/charger from the battery bank alone and can charge from the AC input (generator or grid) when available. Panels are sold separately.

Can it sell power back to the grid?

No. The 6000XP is off-grid by design and does not export to the utility. See the EG4 hybrid models if grid export — subject to utility approval — is a goal.

Will it start a well pump?

Per EG4's spec sheet it surges to 12,000W for about 3.5 seconds, which covers many residential pump and motor starts. Check your pump's locked-rotor amps to confirm.

How many can I parallel?

Per EG4, up to 16 units can be paralleled for larger systems.

Can it charge from a generator?

Yes — the AC input accepts 120/240V generator power for battery charging and pass-through, up to 9,000W per the spec sheet.

Does it work with batteries other than EG4?

It supports 48V lithium and lead-acid banks within the published voltage range; closed-loop communication is available with compatible batteries. EG4 WallMount batteries keep everything in one supported ecosystem.

Can it be installed outdoors?

The enclosure is rated IP20, so it needs an indoor or weather-protected location.

Sizing a cabin or homestead system? Call OffGrid Horizon at (302) 496-3554 — we are a family-owned authorized EG4 dealer and can help you match the 6000XP with the right battery bank and array. Browse the full EG4 collection for more options.
