Product Description

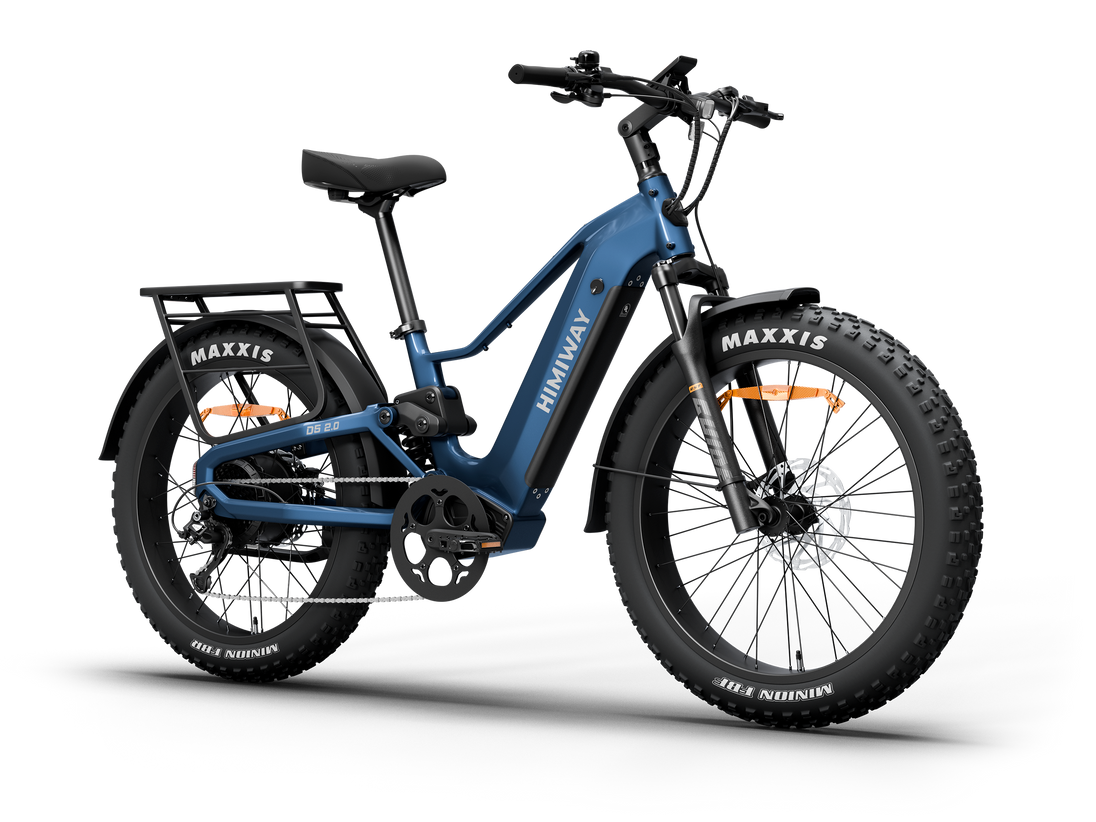

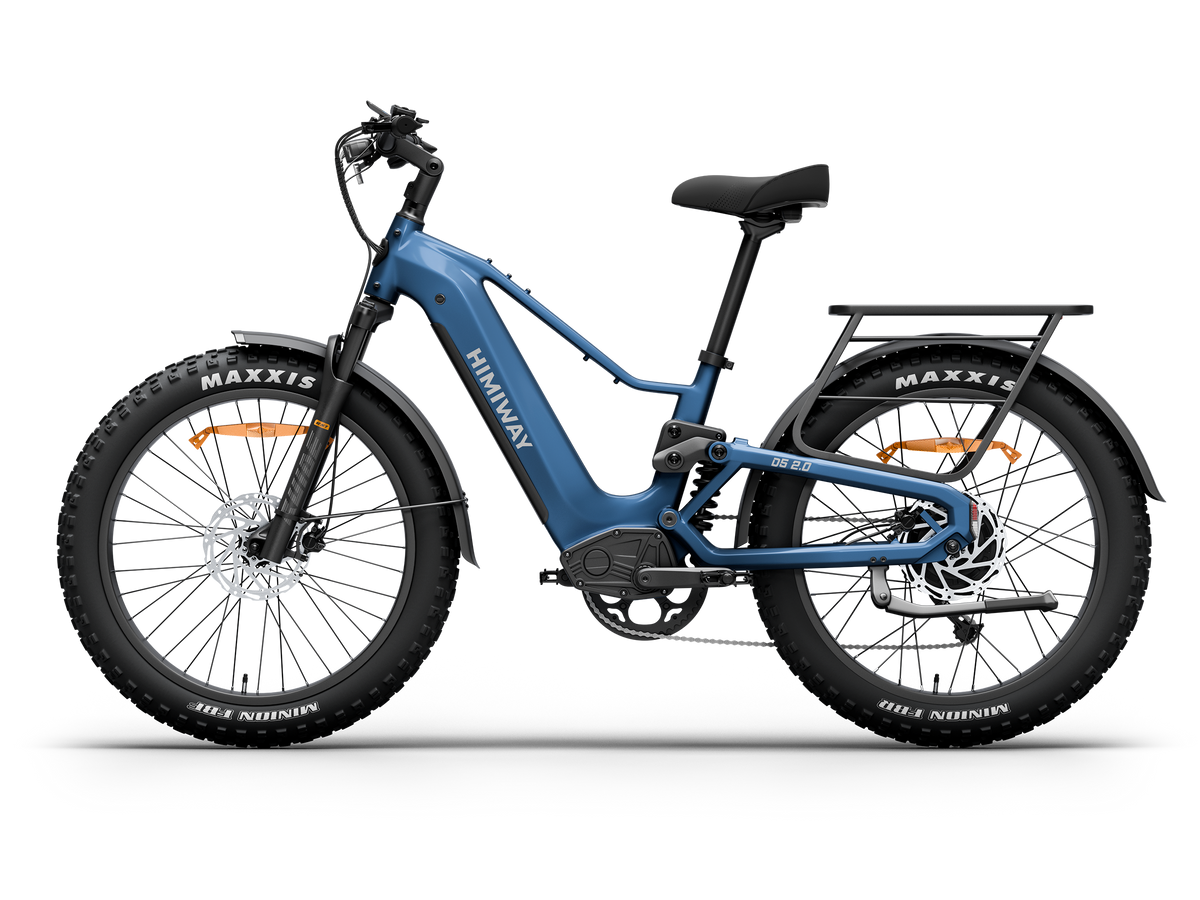

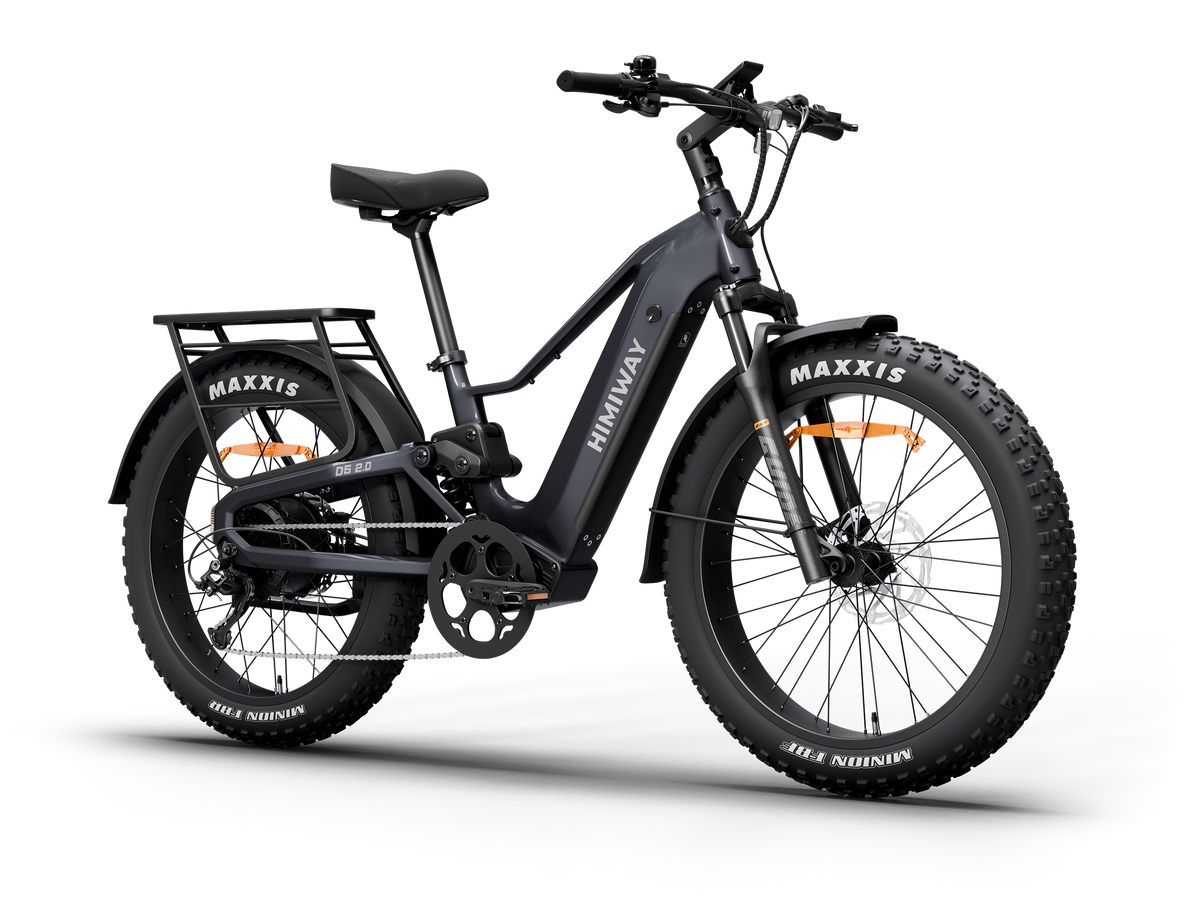

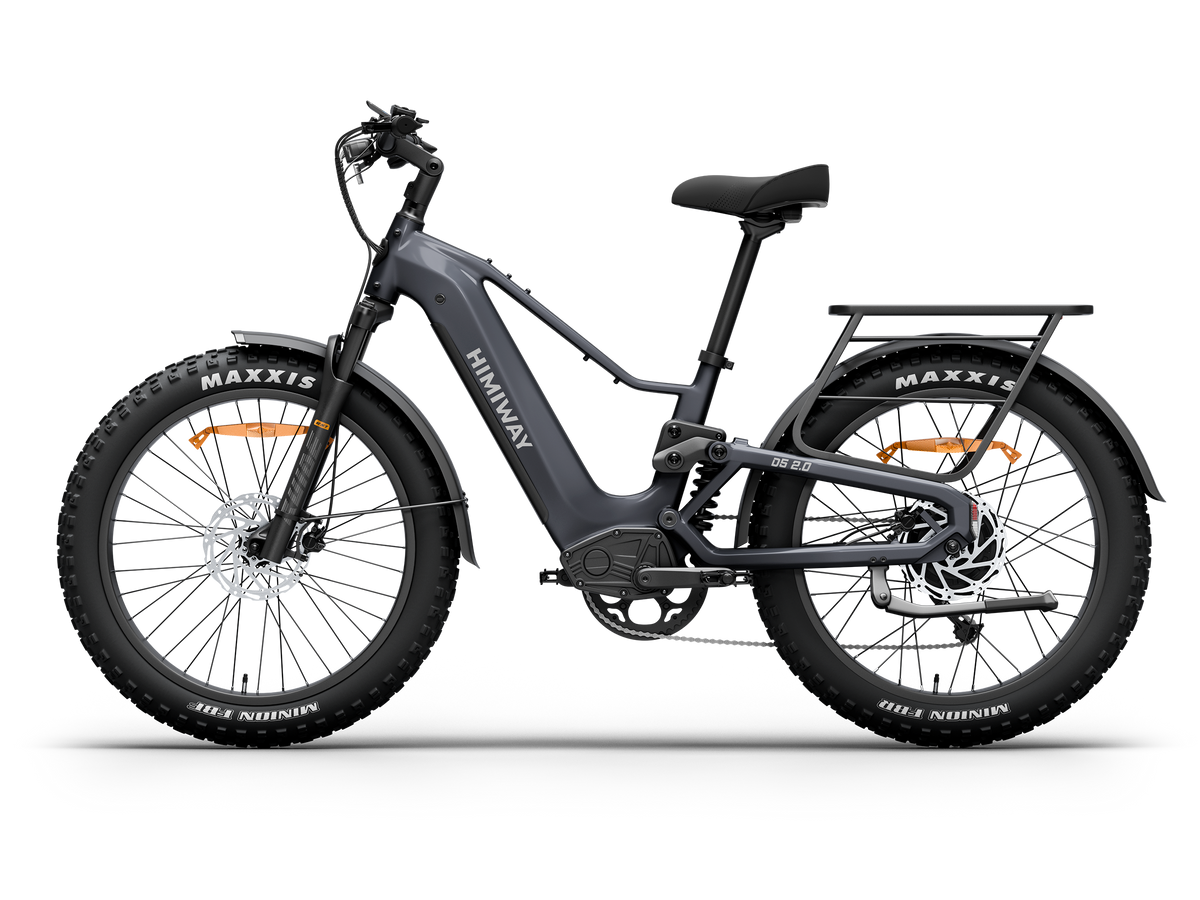

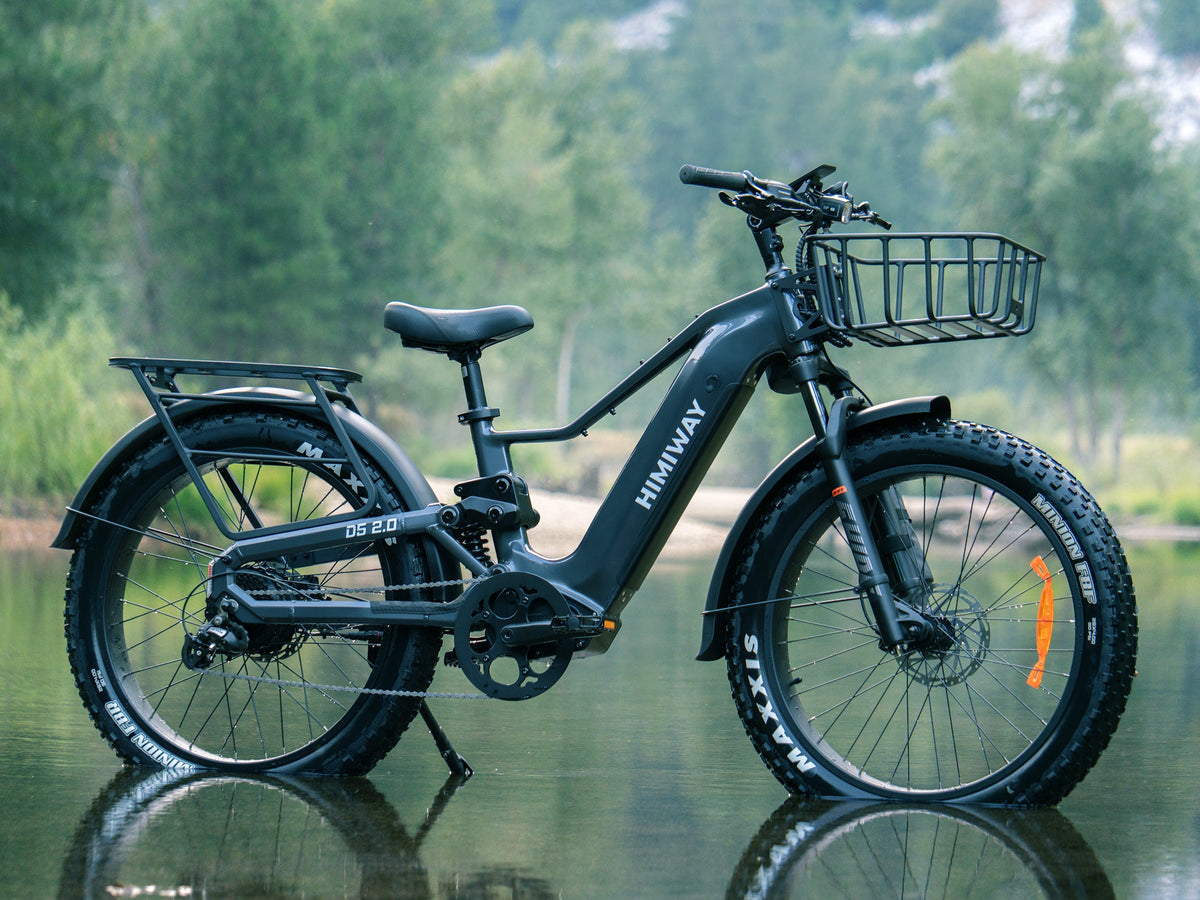

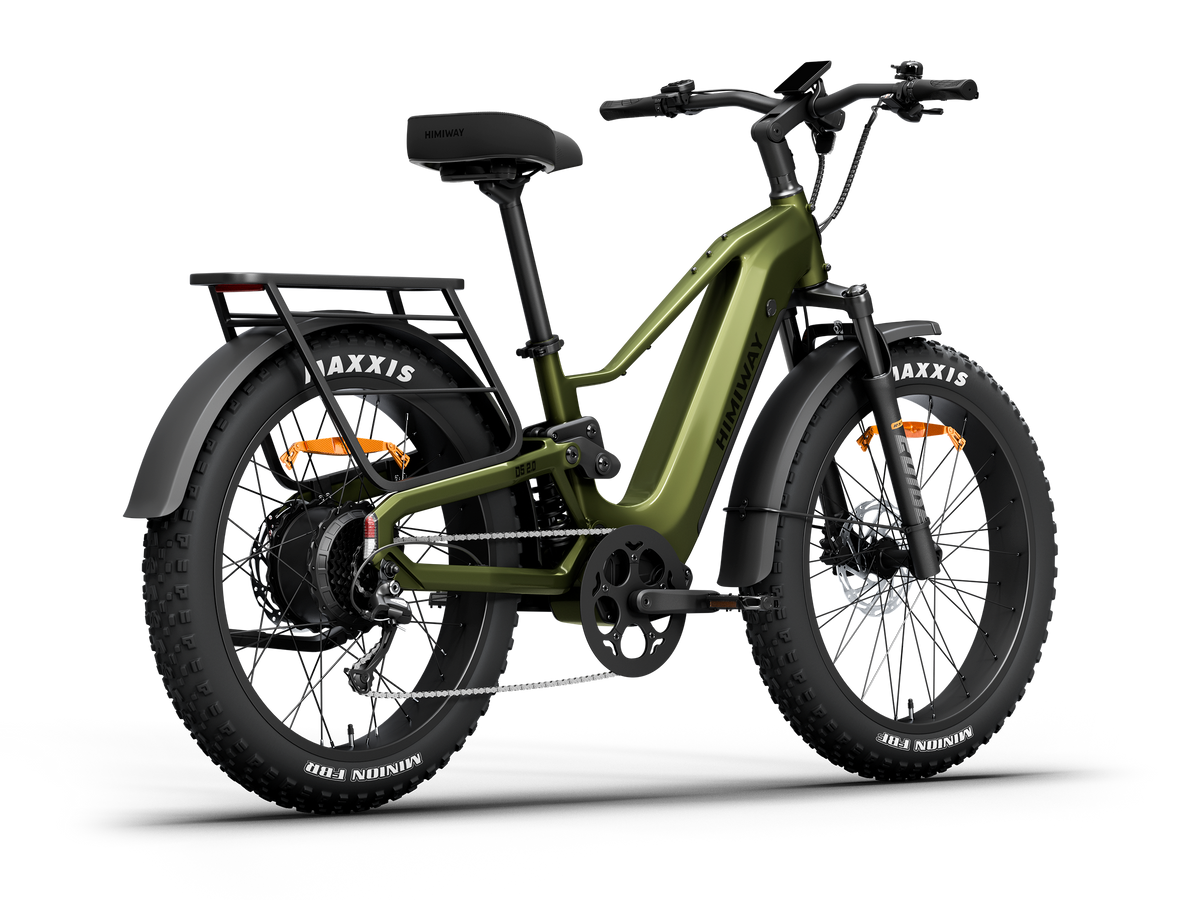

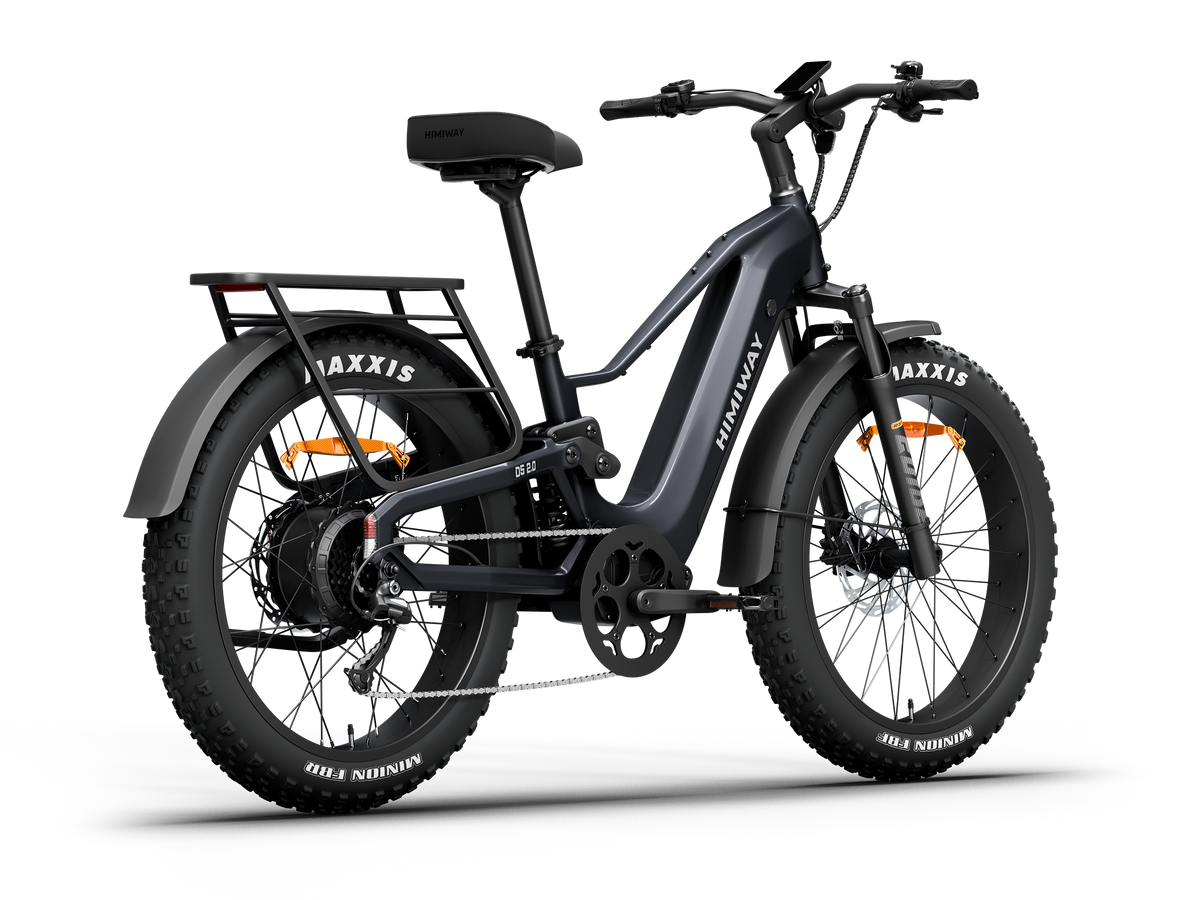

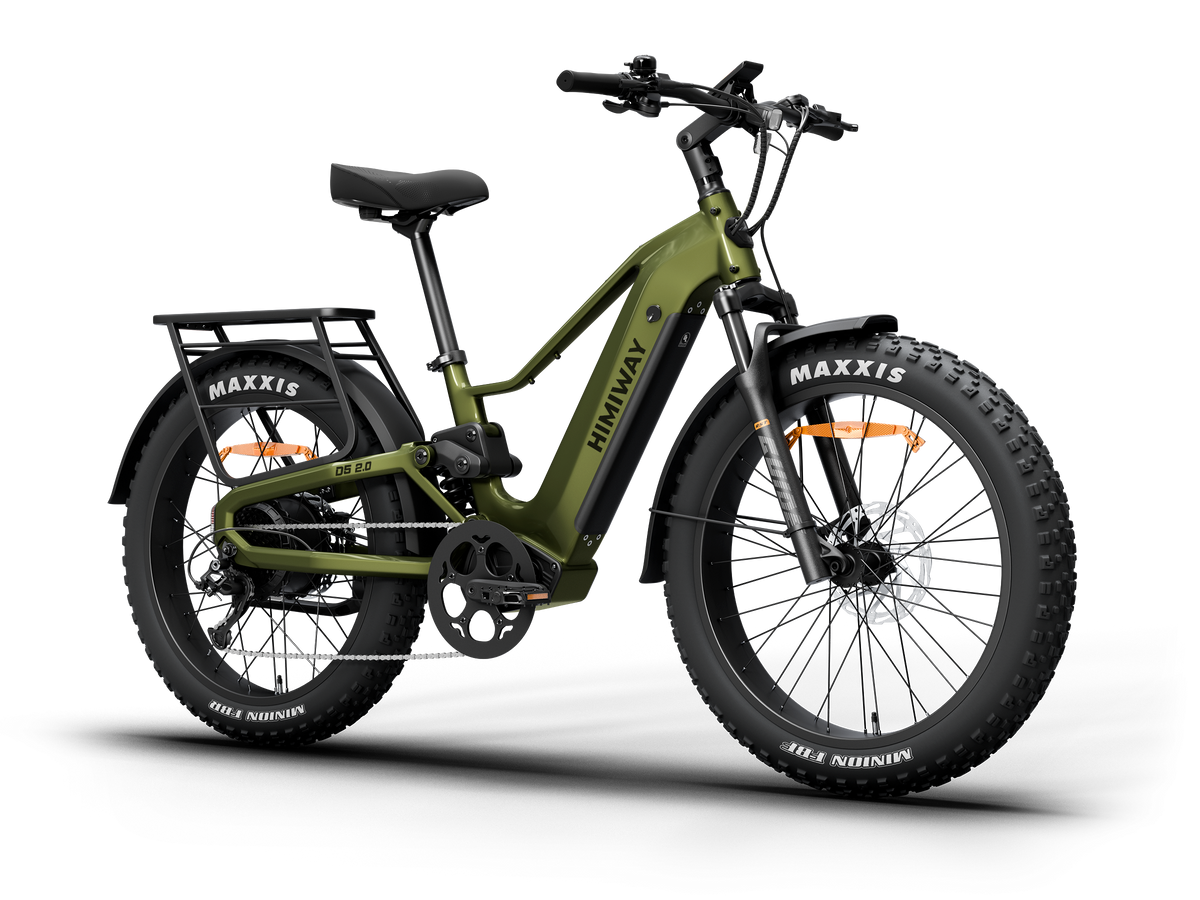

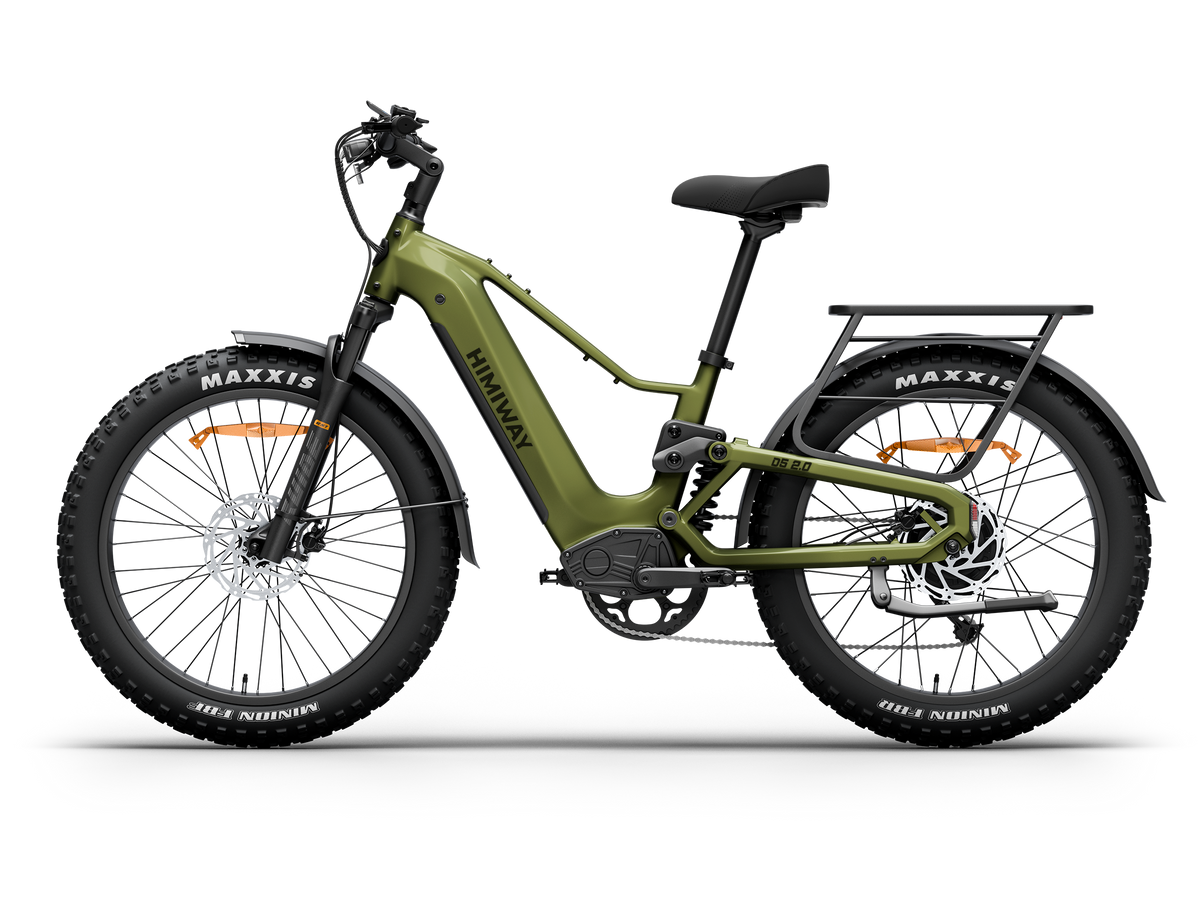

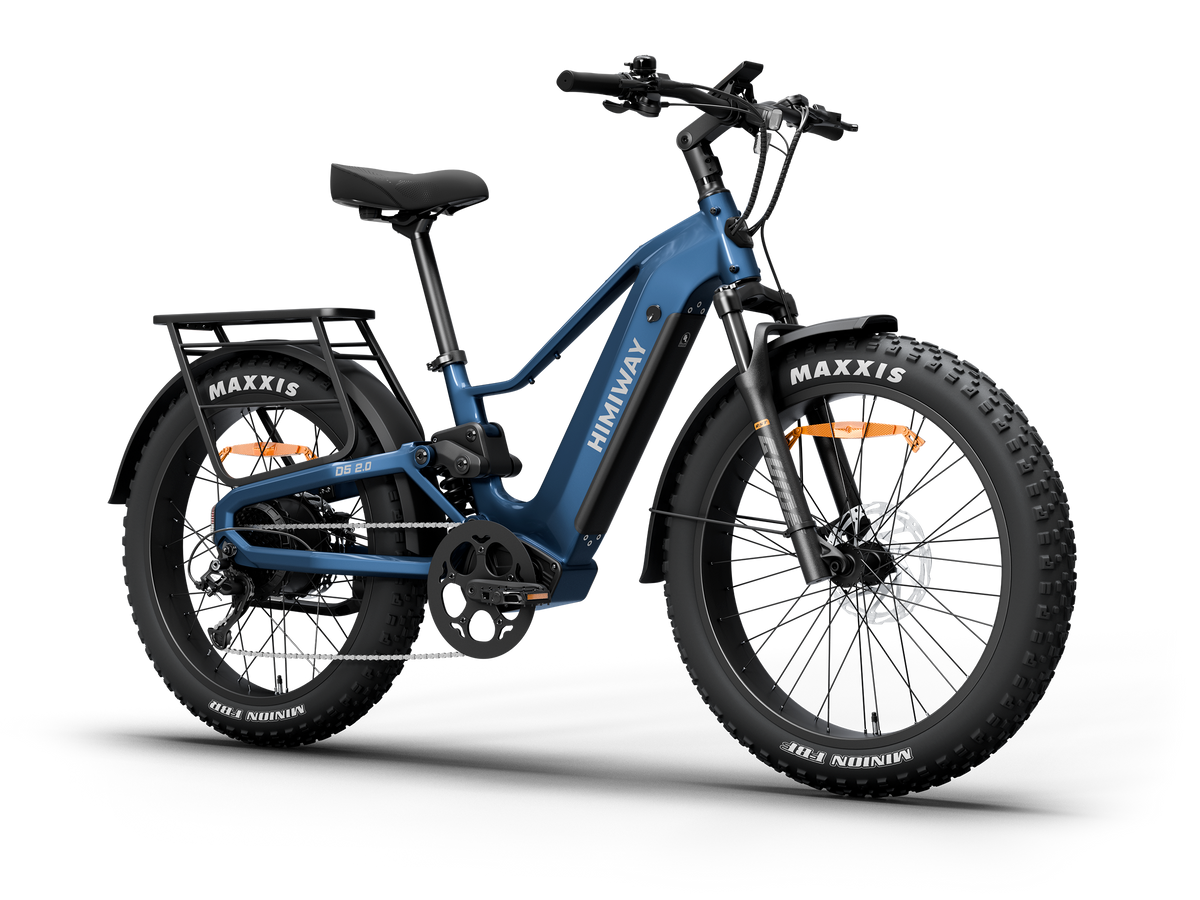

The Himiway D5 2.0 is a full-suspension fat tire e-bike with a classic step-over frame, built for riders who want a stable, planted feel on dirt roads, gravel, sand and rough pavement. It combines a 750W motor, a 720Wh battery and 26 x 4.0-inch Maxxis tires with 100 mm of front and 130 mm of rear suspension travel.

Key features

  • Step-over full-suspension frame – RST hydraulic fork with 100 mm of travel, lockout and rebound adjustment, plus 130 mm of rear travel.
  • 750W rear hub motor – 1,300W peak and 90 Nm of torque.
  • 48V 15Ah (720Wh) battery – Samsung/LG 21700 cells, IPX6 rated.
  • Torque or cadence sensing – auto mode plus 5 assist levels, a thumb throttle and walk mode.
  • Maxxis Minion FBF/FBR 26 x 4.0" tires – tubeless-ready fat tires for loose and soft surfaces.
  • Tektro hydraulic disc brakes – 203 mm front and 180 mm rear rotors with motor cut-off levers.
  • Integrated lighting – 120 lux LED headlight and a rear light with brake indicator and turn signals.
  • Rear rack rated for 120 lb – and a 400 lb total payload.

Good fit for

  • Dirt roads, gravel, sand and mixed trails where e-bikes are allowed
  • Taller riders and anyone who prefers a traditional step-over frame
  • Camping, property use and weekend exploring

Specifications

Motor 750W rated / 1,300W peak rear hub, 90 Nm max torque
Battery 48V 15Ah (720Wh), Samsung/LG 21700 cells, IPX6
Charger 48V 3.0A
Estimated range Up to 70 miles pedal assist / up to 40 miles throttle only*
Speed 20 mph default; adjustable 4–28 mph
E-bike class Switchable Class 1 / 2 / 3
Pedal assist Auto mode + 5 levels, torque/cadence switchable, thumb throttle, walk mode
Drivetrain Shimano 8-speed, 13–32T, 52T chainring, 170 mm aluminum cranks
Brakes Tektro hydraulic disc, 203 mm front / 180 mm rear
Suspension RST hydraulic fork, 100 mm, lockout + rebound; 130 mm rear travel
Tires Maxxis Minion FBF/FBR 26 x 4.0", tubeless-ready
Frame Aluminum alloy, step-over
Standover height 27.6 in
Seat height 32 in minimum, 8 in of adjustment
Rider height 5'1" – 6'5"
Bike weight 92 lb
Max payload 400 lb total; rear rack 120 lb
Display 3.5" full-color, Bluetooth, angle-adjustable
Water resistance IPX5 bike / IPX6 battery

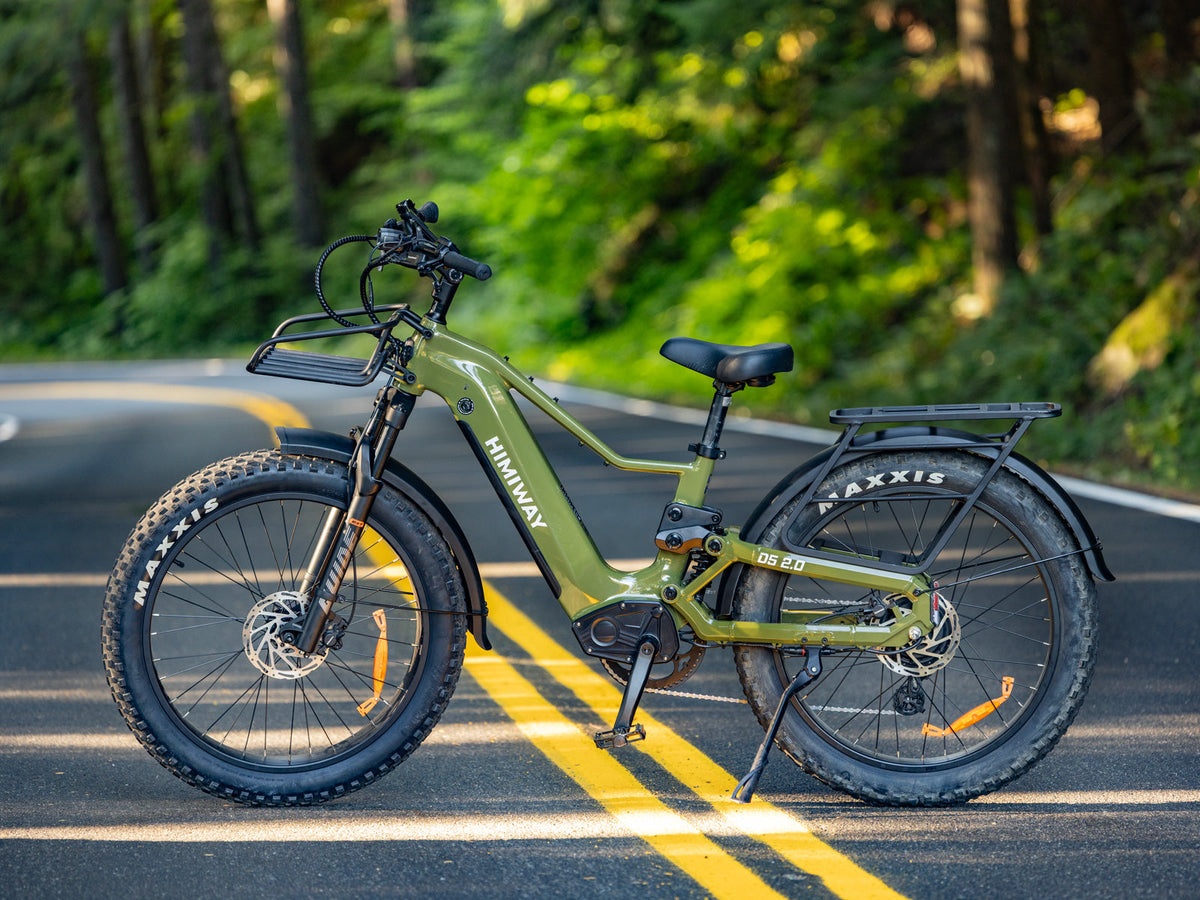

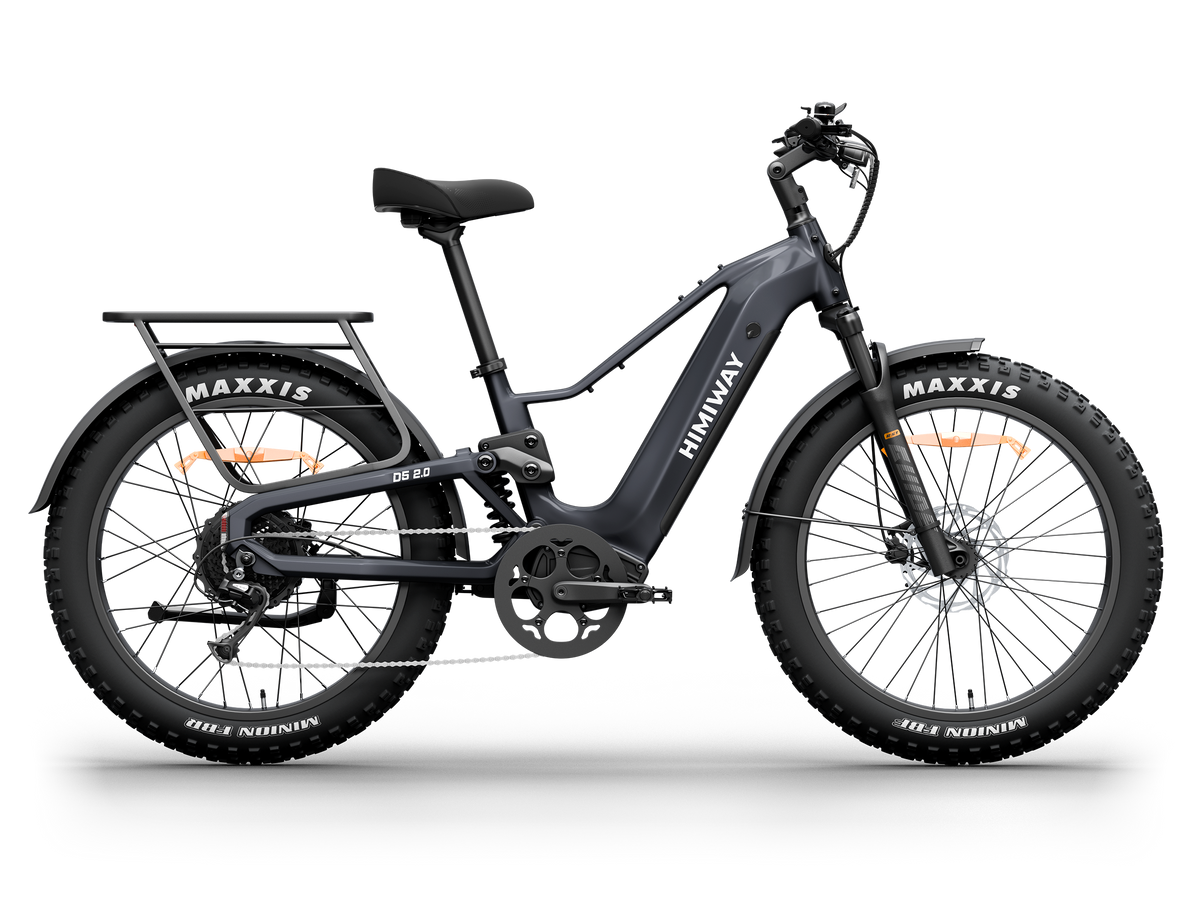

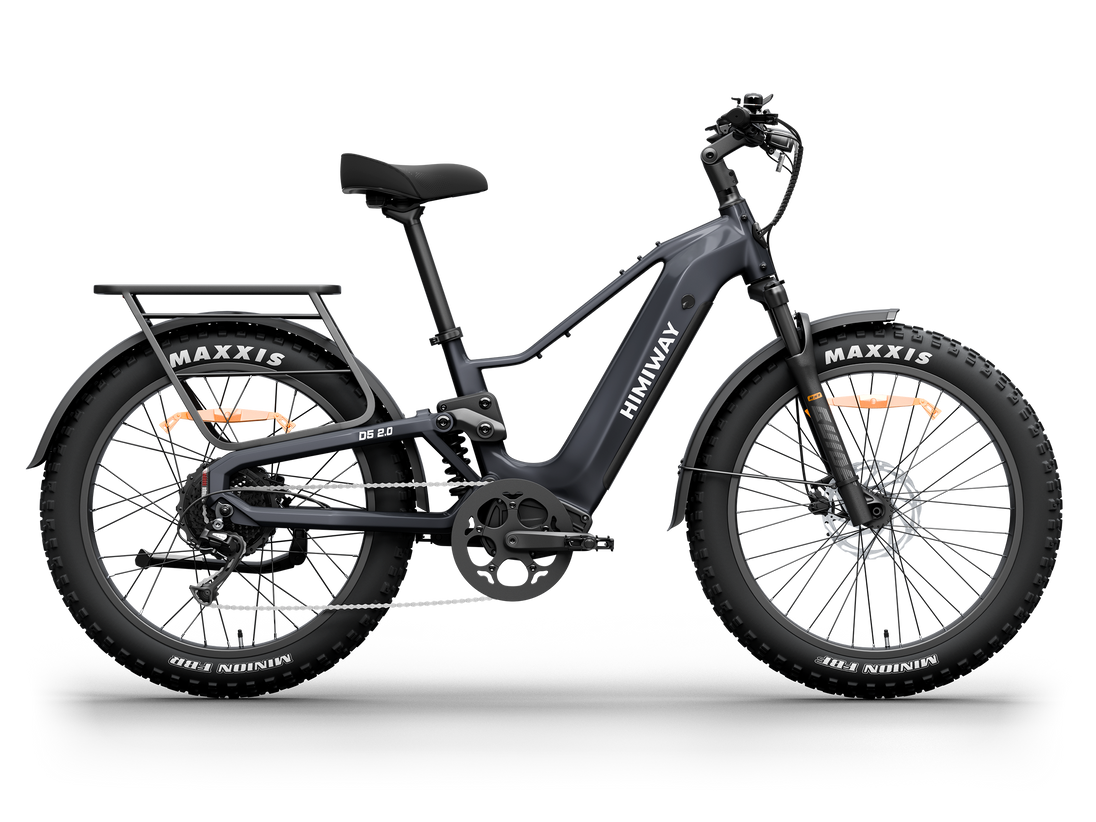

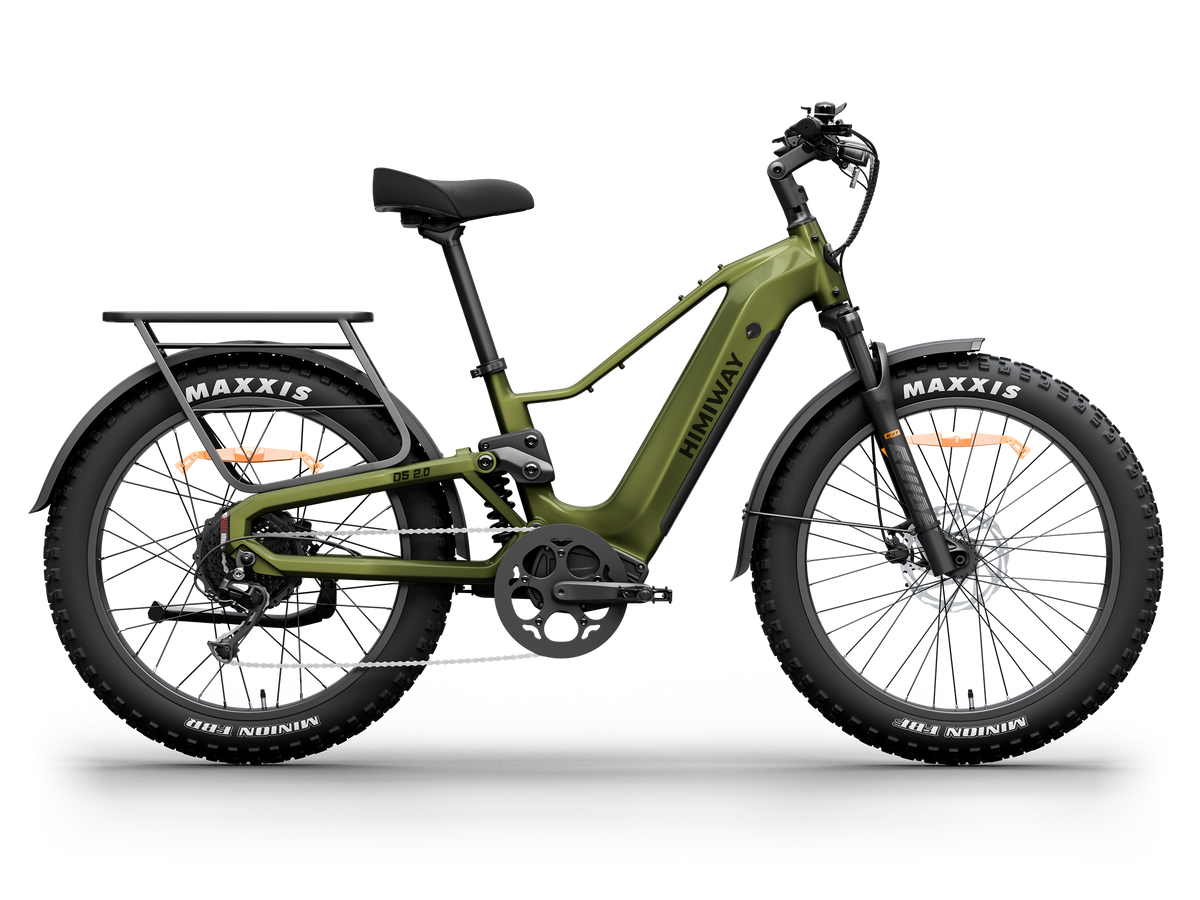

Colors Space Grey, Midnight Blue, Olive Green

*Range is a manufacturer estimate. Real-world range depends on rider weight, cargo, terrain, wind, temperature, tire pressure and assist level.

What's in the box

  • Himiway D5 2.0 e-bike with battery
  • 48V 3.0A charger
  • Pedals and kickstand
  • Owner's manual

Manufacturer warranty

Himiway covers the complete e-bike, including the motor, battery and controller, with a 2-year warranty against defects in materials and workmanship. Accessories and replacement parts are covered for 1 year (brake pads excluded).

Before you ride

E-bike class rules, speed limits and trail access vary by state and city. Check your local regulations, wear a helmet, and follow the owner's manual for final setup and a pre-ride check of the brakes and bolts.
