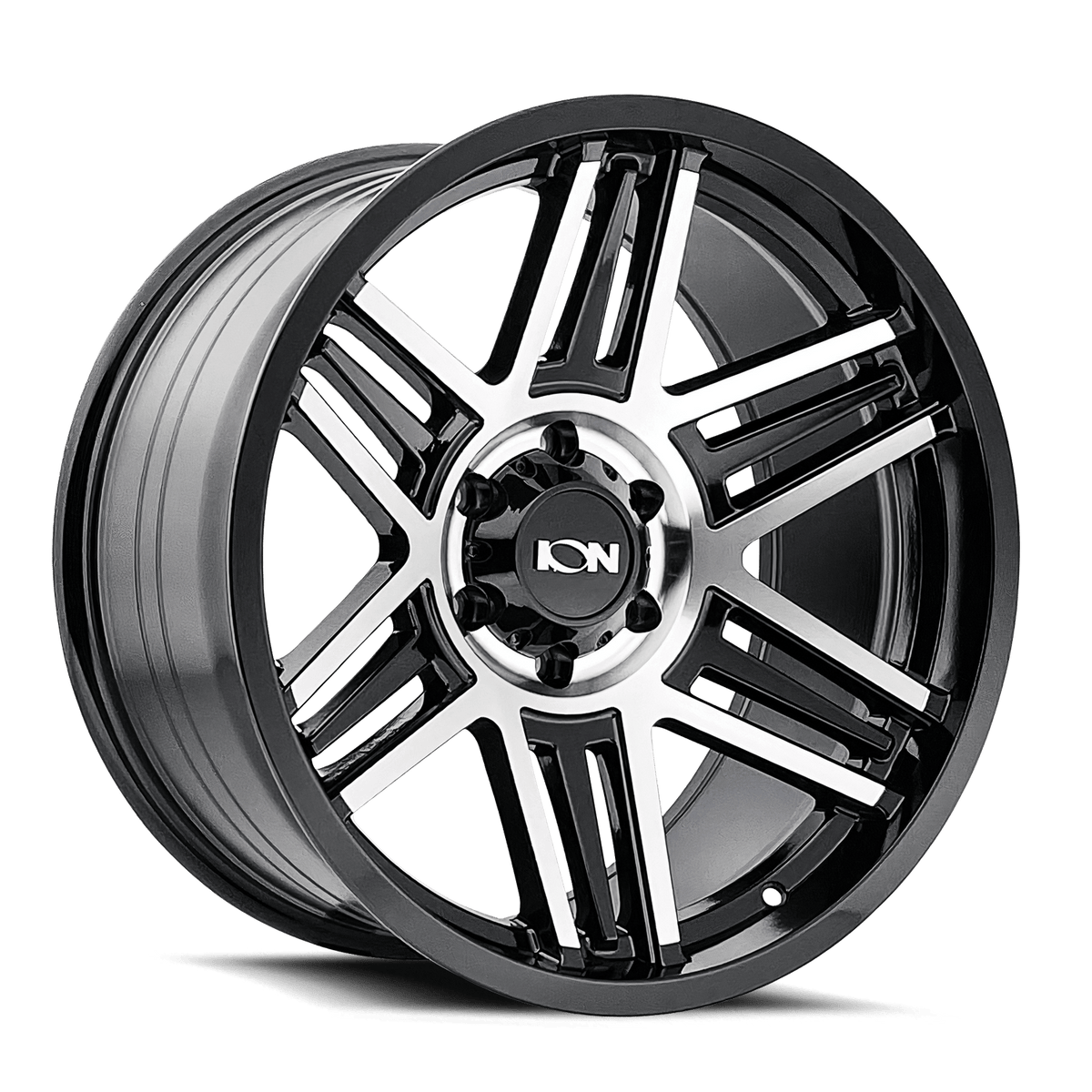

ION Style 147 Wheel – Gloss Black Machined

Product Description

The ION Style 147 wheel in the Gloss Black Machined finish is available in 17x9, 20x9, 20x10 with 7 bolt patterns (6x135, 6x139.7, 5x127, 8x170, 8x180, 8x165.1, 5x150). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, ION's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
147-7936BM0 17x9 6x135 0 5.00 87.00 2,500
147-7983BM0 17x9 6x139.7 0 5.00 106.00 2,500
147-7973BM0 17x9 5x127 0 5.00 78.10 2,500
147-7970BM0 17x9 8x170 0 5.00 125.20 3,800
147-7978BM0 17x9 8x180 0 5.00 124.10 3,800
147-7981BM0 17x9 8x165.1 0 5.00 125.20 3,800
147-2936BM0 20x9 6x135 0 5.00 87.00 2,500
147-2983BM0 20x9 6x139.7 0 5.00 106.00 2,500
147-2970BM0 20x9 8x170 0 5.00 125.20 3,800
147-2978BM0 20x9 8x180 0 5.00 124.10 3,800
147-2981BM0 20x9 8x165.1 0 5.00 125.20 3,800
147-2936BM18 20x9 6x135 18 5.71 87.00 2,500
147-2983BM18 20x9 6x139.7 18 5.71 106.00 2,500
147-2950BM18 20x9 5x150 18 5.71 110.00 2,500
147-2978BM18 20x9 8x180 18 5.71 124.10 3,800
147-2970BM18 20x9 8x170 18 5.71 125.20 3,800
147-2981BM18 20x9 8x165.1 18 5.71 125.20 3,800
147-2136BM19 20x10 6x135 -19 4.75 87.00 2,500
147-2183BM19 20x10 6x139.7 -19 4.75 106.00 2,500
147-2170BM19 20x10 8x170 -19 4.75 125.20 3,800
147-2181BM19 20x10 8x165.1 -19 4.75 125.20 3,800
