Product Description

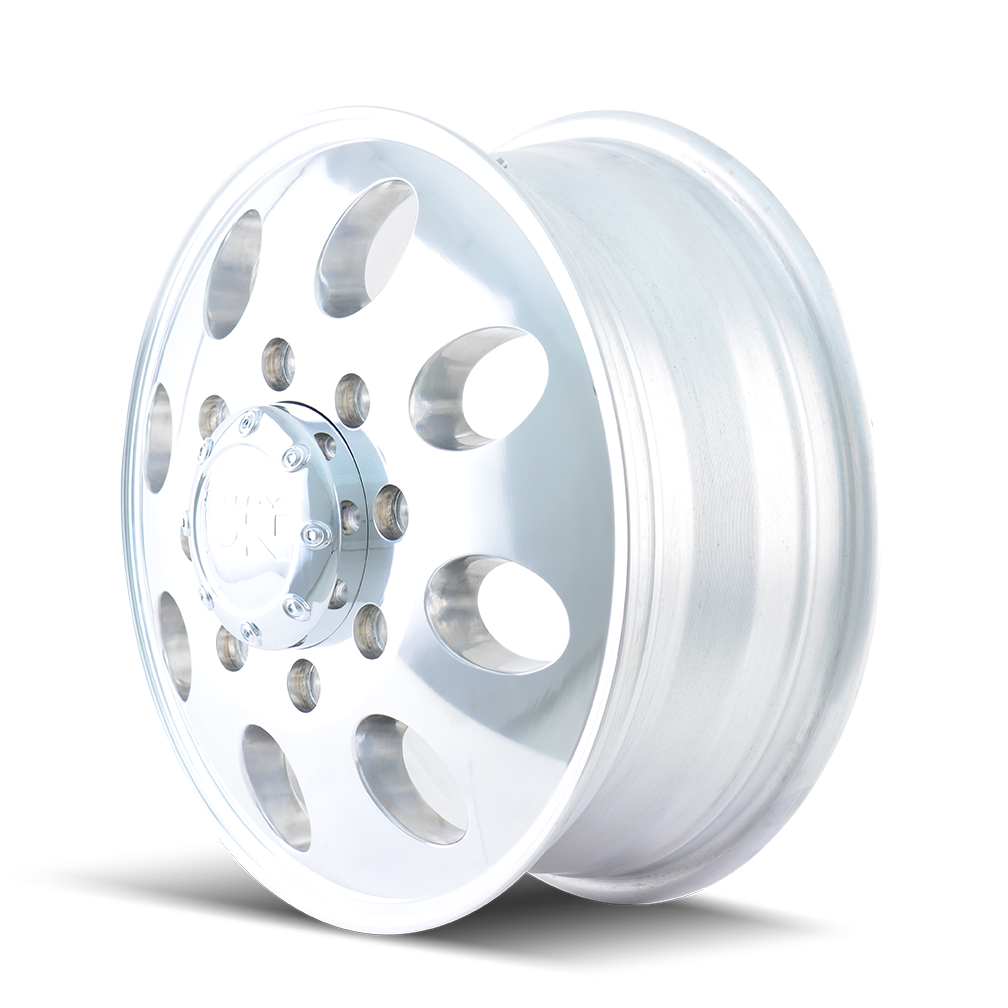

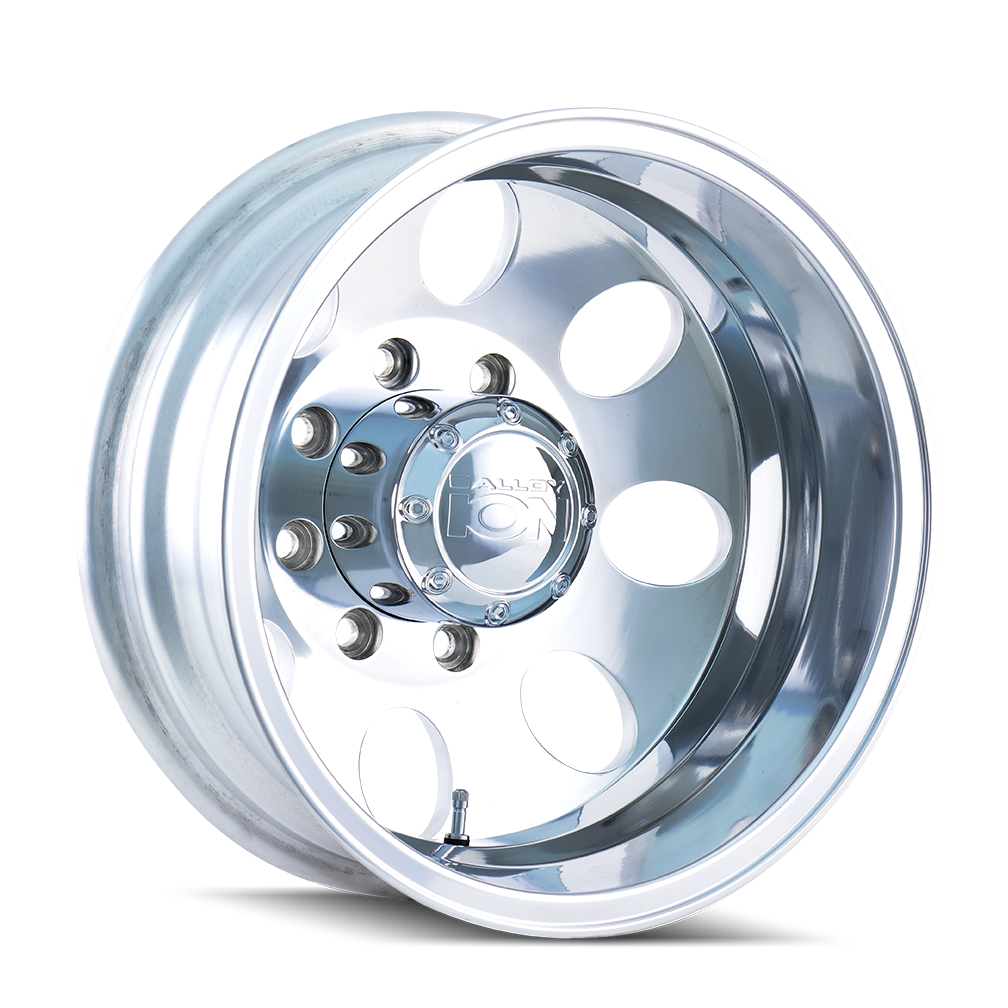

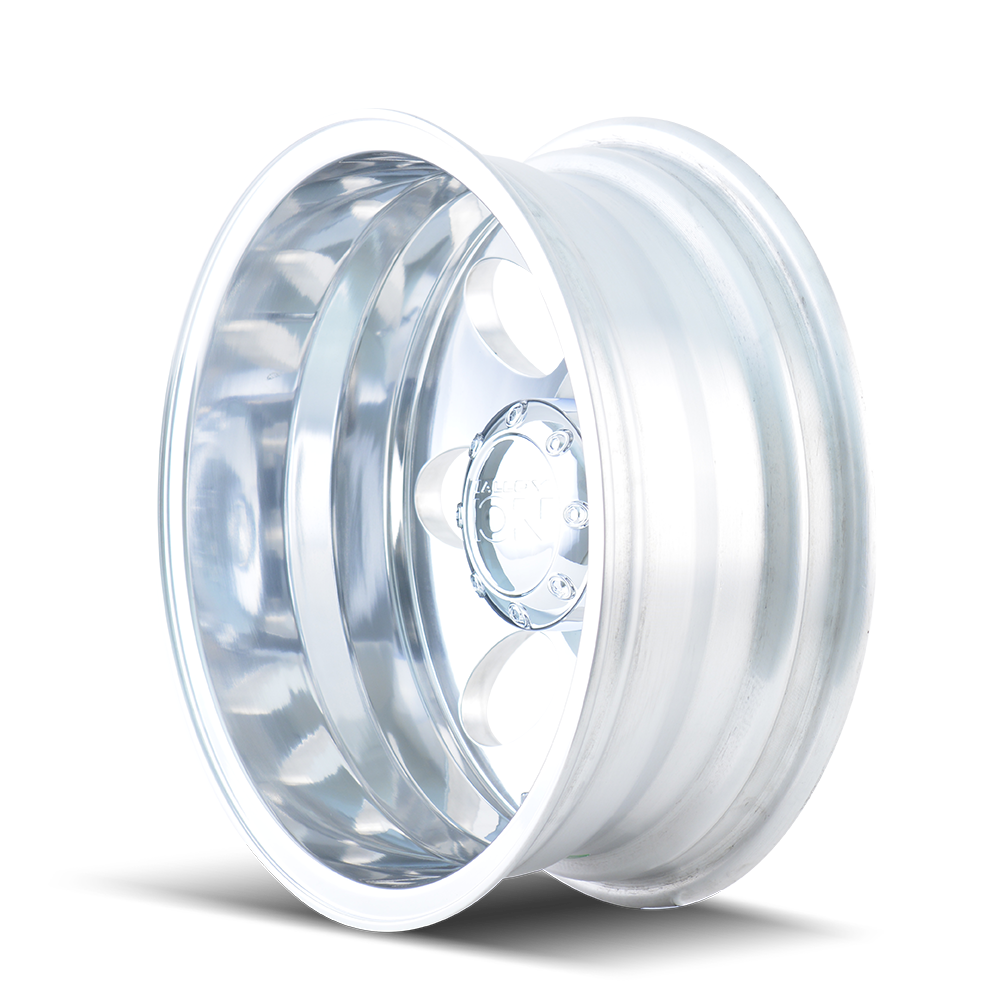

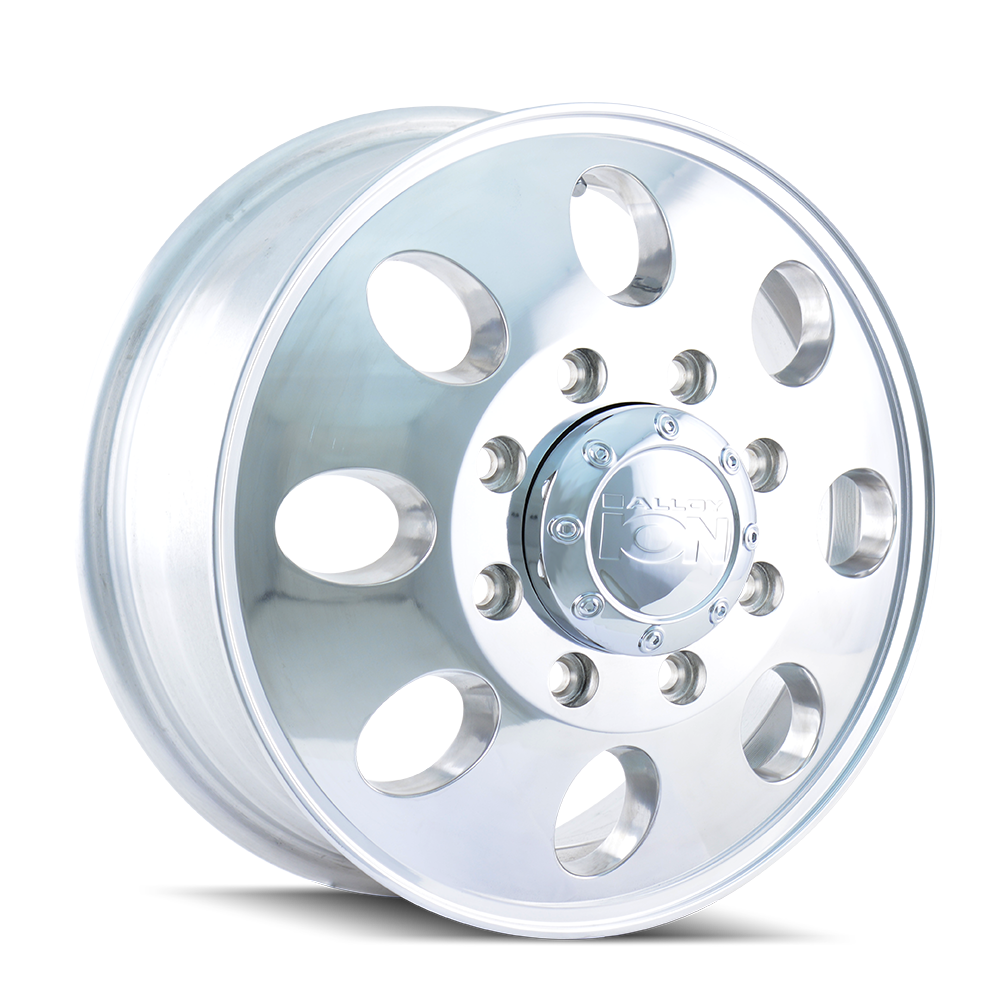

The ION Style 167 wheel in the Polished finish is available in 16x6, 17x6.50, 20x8.25 with 4 bolt patterns (8x170, 8x165.1, 8x200, 8x210). Each size, bolt pattern and offset combination below is its own part number from The Wheel Group, ION's U.S. distributor.

Before you order: match the bolt pattern, center bore, offset and load rating to your vehicle. Load rating is per wheel. If you are not sure which fitment you need, email sales@offgridhorizon.com or call (302) 496-3554 with your year, make, model and tire size and we will confirm it with you.

Specifications

Part # Size (in) Bolt pattern Offset (mm) Backspace (in) Center bore (mm) Load rating (lbs) Weight (lbs)
167-6670FP 16x6 8x170 102.00 7.52 130.18 3200
167-6670RP 16x6 8x170 -125.00 -1.42 130.18 3200
167-6681FP 16x6 8x165.1 102.00 7.52 130.18 3200
167-6681RP 16x6 8x165.1 -125.00 -1.42 130.18 3200
167-7677FP 17x6.50 8x200 125.30 8.70 142.20 3000
167-7677RP 17x6.50 8x200 -142.00 1.84 142.20 3000
167-7679FP 17x6.50 8x210 125.30 8.70 154.20 3000
167-7679RP 17x6.50 8x210 -142.00 1.84 154.20 3000
167-7681FP 17x6.50 8x165.1 125.30 8.70 130.18 3000
167-7681RP 17x6.50 8x165.1 -142.00 1.84 130.18 3000
167-2877PF115 20x8.25 8x200 115.00 9.15 142.00 3,000
167-2877PR192 20x8.25 8x200 -192.00 -2.93 142.00 3,000
167-2881PF115 20x8.25 8x165.1 115.00 9.15 121.30 3,000
167-2881PR192 20x8.25 8x165.1 -192.00 -2.93 121.30 3,000
