Product Description

This package pairs the MyGrid 10K Gen 2 whole-home system with Nature's Generator 440W rigid bifacial solar panels, so the battery is recharged by the sun rather than only by the grid. The 10,000W inverter and 10,496Wh LiFePO4 battery wire into your electrical panel and carry both 120V and 240V circuits.

Key features

  • Complete solar package – inverter, battery and rigid bifacial panels supplied together, so the array is matched to the system.
  • 10,000W continuous output – enough headroom for HVAC, well pumps and other 240V appliances.
  • 440W bifacial panels – bifacial cells also collect light reflected onto the rear of the panel.
  • Up to 12,000W solar input – room to add panels later without changing the system.
  • Multiple charge sources – solar, grid AC, a 350W wind turbine or an external fuel generator.
  • Expandable – 20,000W output with a second unit; battery capacity to 73,472Wh.

Choosing your configuration

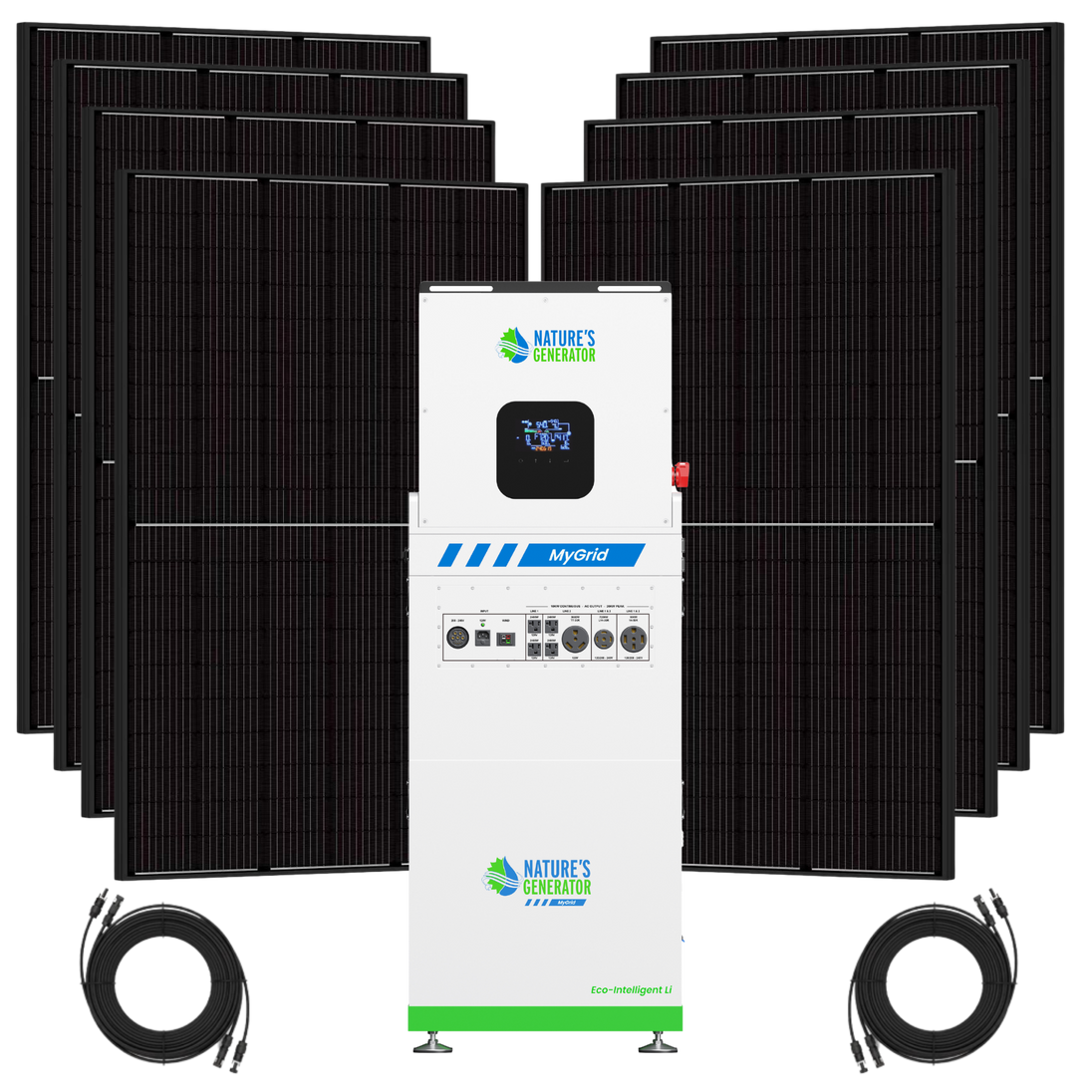

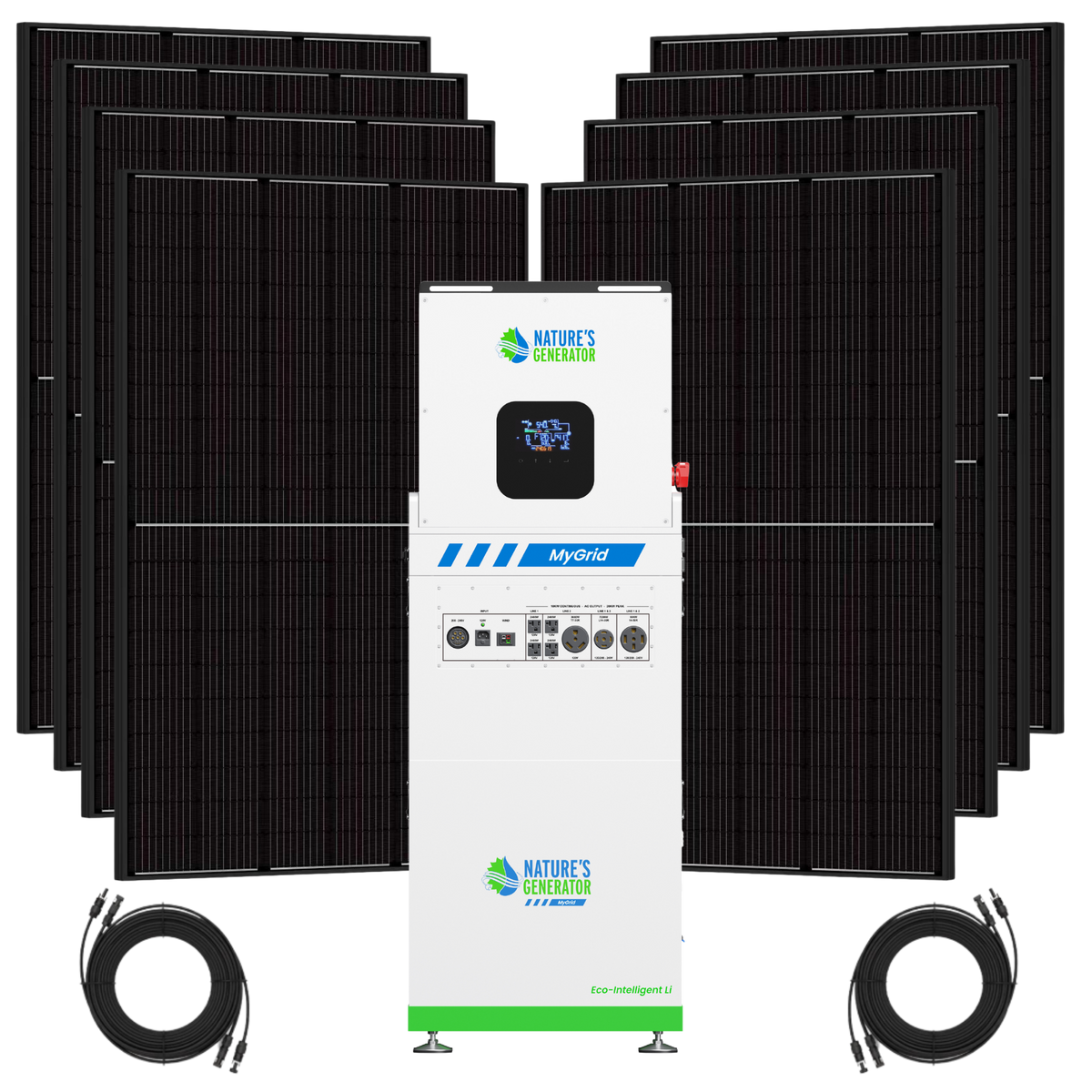

  • MyGrid 10K Gen 2 + 8x 440W Rigid Bifacial Panel (SKU NGMGTNAUA) – 3,520W of solar with the standard 10,496Wh battery.
  • MyGrid 10K Gen 2 + Solar Battery + 12x 440W Rigid Bifacial Panel (SKU NGMGTNPTA) – 5,280W of solar plus the second battery module for longer autonomy.

What to plan for

The system ties into your electrical panel and should be installed by a licensed electrician in line with local code. Panels need a suitable roof or ground mounting location; mounting hardware is sold separately. Shipped by freight carrier.

Specifications

Continuous output 10,000W
Battery capacity 10,496Wh, expandable to 73,472Wh
Battery chemistry LiFePO4
Solar included 8 x 440W (3,520W) or 12 x 440W (5,280W) rigid bifacial
Maximum solar input 12,000W
Service supported 120V, 120/240V, 120/208V
Certifications (per manufacturer) UL 1741 inverter; UL 1973 battery
SKUs NGMGTNAUA, NGMGTNPTA

Manufacturer warranty

Nature's Generator covers the MyGrid 10K system for 60 months on a tiered basis (shipping, parts and labor in months 1–12; parts and labor in months 13–24; parts only in months 25–36; major component parts in months 37–60). Solar panels carry a 12-month shipping, parts and labor warranty. Warranty service is handled by Nature's Generator.
