Product Description

Renogy 200 Watt 12 Volt Flexible Monocrystalline Solar Panel

The Renogy 200 Watt 12 Volt Flexible Monocrystalline Solar Panel is designed for off-grid solar power systems that need a lightweight, bendable panel for curved or limited installation spaces. With 200W maximum power, monocrystalline solar cells, and a flexible design that bends up to 240°, it is suitable for RVs, boats, and other mobile or off-grid applications.

Built with an ETFE surface, 9 busbar cells, bypass diodes, and half-cut technology, this flexible solar panel helps improve sunlight transmittance, conductivity, and performance during accidental shading. Its thin 0.1" profile and 10.8 lb weight make it easier to carry and install compared to rigid panels.

Key Features

  • 200W maximum power at STC
  • 12V flexible monocrystalline solar panel
  • Bendable up to 240°
  • Average daily electricity output of 1000Wh based on 5–6 hours of direct sunlight
  • Maintains over 90% output efficiency for 5 years
  • ETFE surface
  • 9 busbar cells
  • Bypass diodes and half-cut technology
  • Improved resistance to hotspots and accidental shading
  • 16.7% module efficiency
  • Open circuit voltage: 23.9V
  • Short circuit current: 10.74A
  • Optimum operating voltage: 20.1V
  • Optimum operating current: 10.02A
  • Maximum system voltage: 600V DC
  • Maximum series fuse rating: 15A
  • Operating temperature: -40°F to 176°F / -40°C to 80°C
  • IP68 junction box
  • IP67 solar connectors
  • CE and ISO9001 certified
  • Weight: 10.8 lbs / 4.9 kg

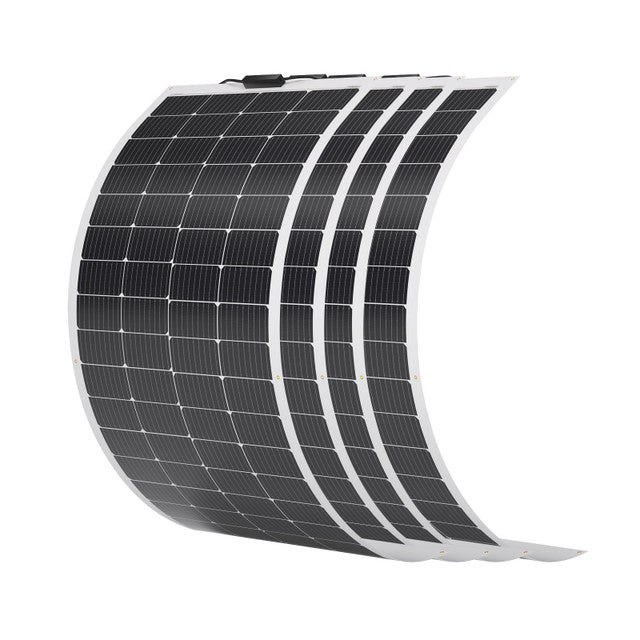

Renogy 200 Watt 12 Volt flexible monocrystalline solar panel product image
Renogy 200W flexible solar panel feature image
Renogy flexible monocrystalline solar panel installation image
Renogy flexible solar panel detail image
Renogy 200W flexible solar panel application image

Specifications

  • Type: Flexible Monocrystalline Solar Panel
  • Maximum Power at STC: 200W
  • Voltage: 12V
  • Module Efficiency: 16.7%
  • Material: Monocrystalline solar cells with ETFE surface
  • Busbar Design: 9 busbar cells
  • Open Circuit Voltage: 23.9V
  • Short Circuit Current: 10.74A
  • Optimum Operating Voltage: 20.1V
  • Optimum Operating Current: 10.02A
  • Maximum System Voltage: 600V DC
  • Maximum Series Fuse Rating: 15A
  • Operating Temperature: -40°F to 176°F / -40°C to 80°C
  • Junction Box: IP68
  • Solar Connectors: IP67
  • Certification: CE and ISO9001 certified
  • Weight: 10.8 lbs / 4.9 kg
  • Dimensions: 63.2" x 29.4" x 0.1" / 1605 x 748 x 3 mm
  • Care Instructions: Do not walk on the solar panel. Clean with a microfiber cloth, glass cleaner, and water.
  • Use: RVs, boats, mobile solar setups, and off-grid power systems

Resources

200 Watt 12 Volt Flexible Monocrystalline Solar Panel Datasheet

S200 Watt 12 Volt Flexible Monocrystalline Solar Panel Warranty
