Product Description

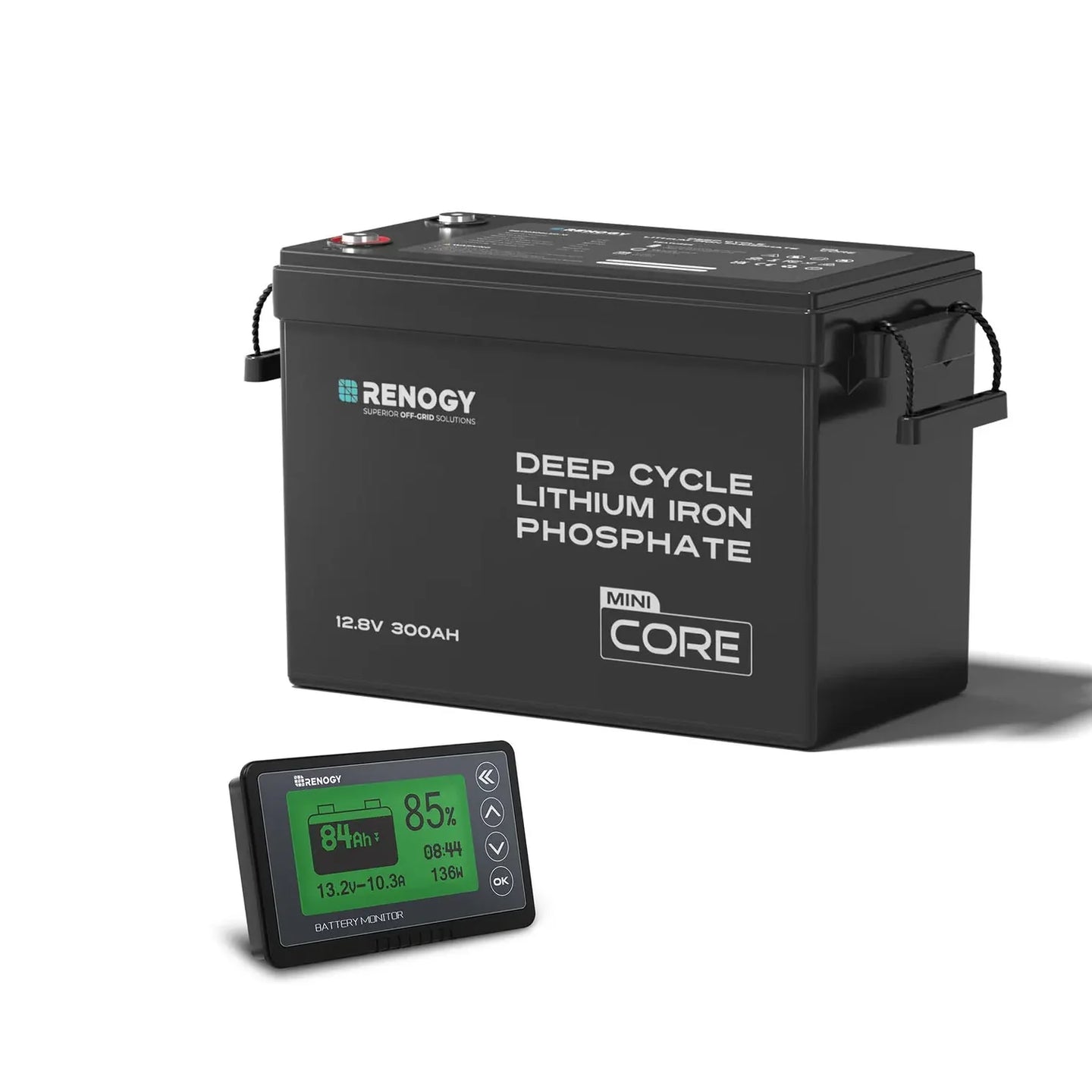

Renogy Mini Size 12V 300Ah LiFePO4 Battery with Low-Temperature Protection

The Renogy Mini Size 12V 300Ah LiFePO4 Battery with Low-Temperature Protection is designed for reliable power storage in RV, van, camper, home, and marine power setups. Built with lithium iron phosphate battery technology, it delivers 12V power, 300Ah rated capacity, and 3840Wh capacity in a compact design that is 31% smaller than other 12V 300Ah LFP batteries.

This battery features Grade-A prismatic LiFePO4 cells, 5000 cycles at 80% depth of discharge, low-temperature protection, IP65 protection, and series and parallel connection support up to 4S4P. Its compact size and 55.1 lb weight help make handling and installation more manageable for off-grid and mobile power systems.

Key Features

  • 12V lithium iron phosphate battery
  • 300Ah rated capacity
  • 3840Wh capacity
  • Grade-A prismatic LiFePO4 cells
  • 5000 cycles at 80% depth of discharge
  • Low-temperature protection
  • 200A maximum discharge current
  • 150A maximum charge current
  • 380A peak discharge current at 10 seconds
  • Series and parallel connection support up to 4S4P
  • Expandable up to 61.44kWh
  • IP65 protection rating
  • Compact design, 31% smaller than other 12V 300Ah LFP batteries
  • 55.1 lb battery weight
Renogy 12V 300Ah LiFePO4 battery key feature image
Renogy lightweight lithium battery feature image
Renogy space-saving battery design image
Renogy battery charging protection image
Renogy battery for RV power setup image
Renogy battery for outdoor and mobile power use image
Renogy Mini Size 12V 300Ah LiFePO4 Battery product image

Specifications

  • Type: Lithium Iron Phosphate Battery
  • Material: Lithium Iron Phosphate
  • Rated Voltage: 12V
  • Rated Capacity: 300Ah
  • Energy Capacity: 3840Wh
  • Maximum Discharge Current: 200A
  • Maximum Charge Current: 150A
  • Peak Discharge Current: 380A at 10 seconds
  • Cycle Life: 5000 cycles at 80% depth of discharge
  • Protection Rating: IP65
  • Dimensions: 15.12" x 7.64" x 9.96" / 384 x 194 x 253 mm
  • Weight: 55.1 lb
  • Connection Support: Series and parallel connection up to 4S4P
  • Expandable Capacity: Up to 61.44kWh
  • Use: RV, van, camper, home, and marine power setups
