Product Description

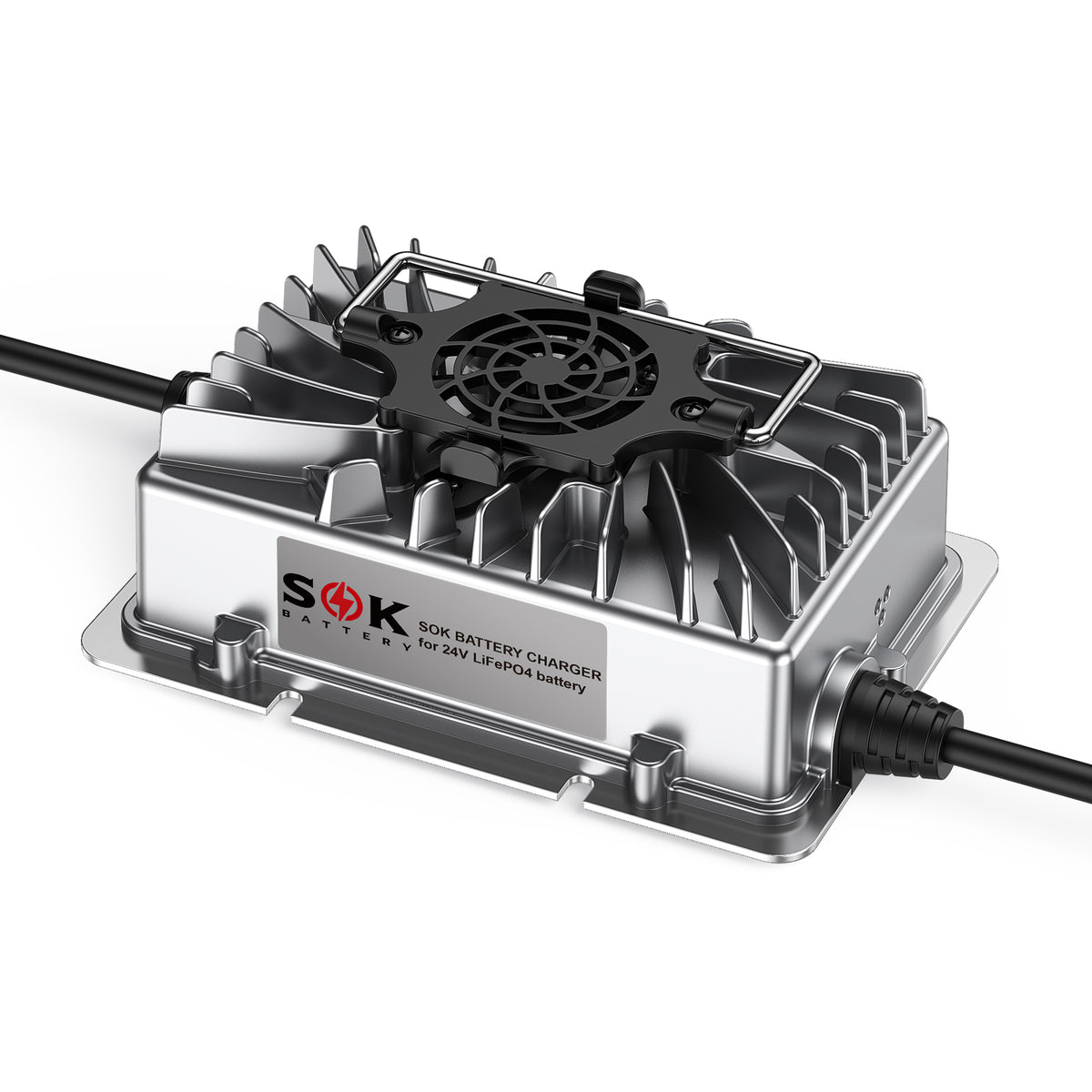

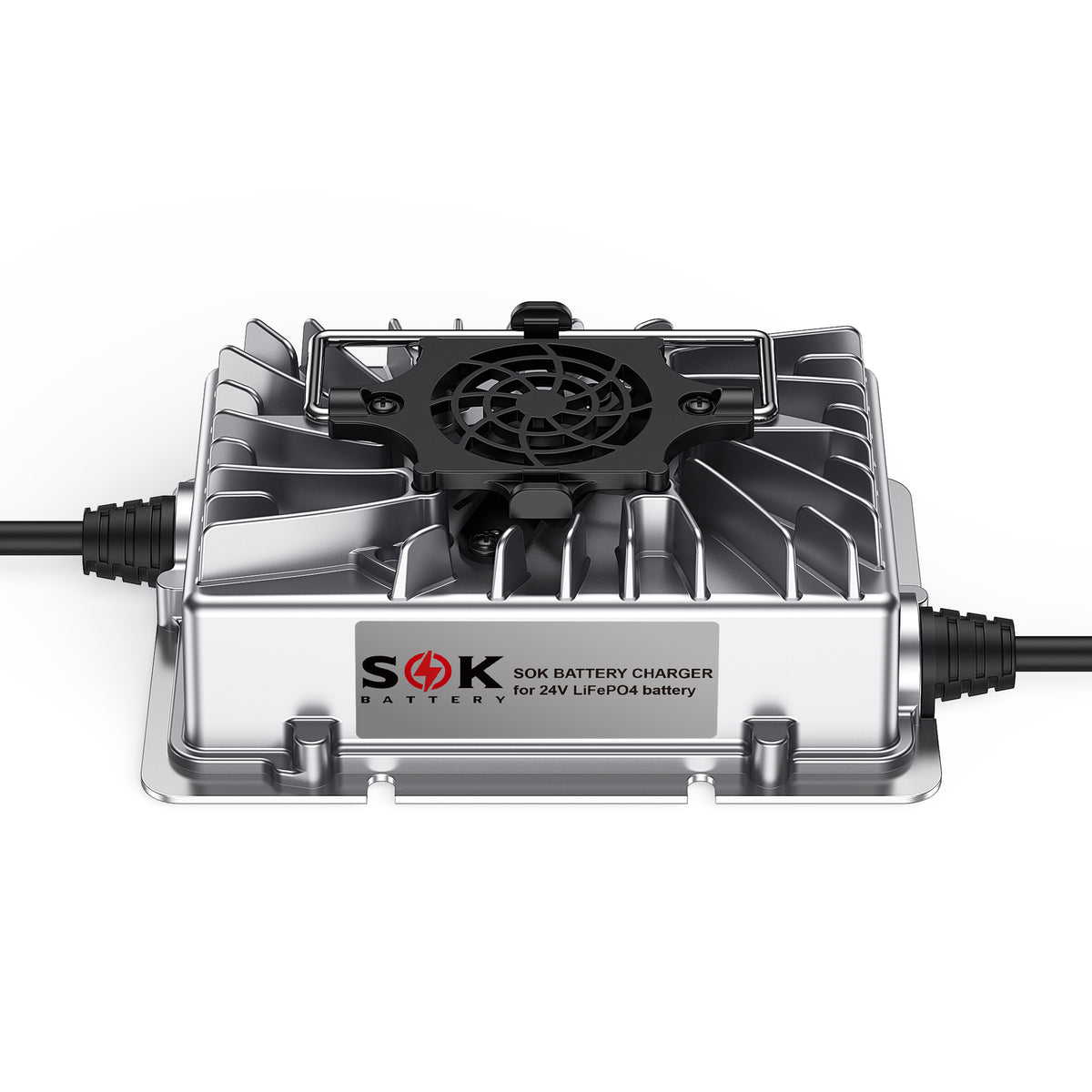

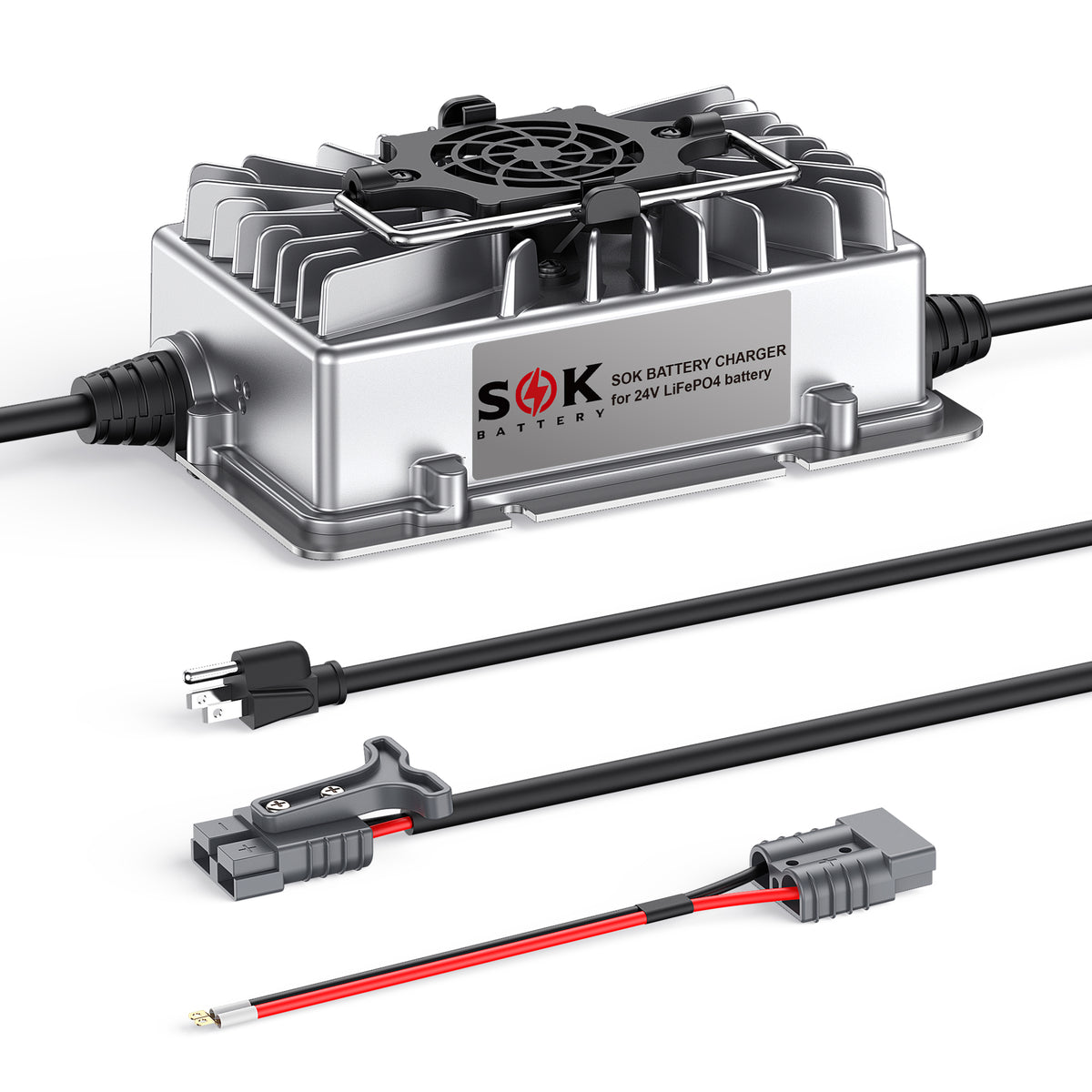

This is SOK's own charger for their 24V LiFePO4 batteries. A lithium pack needs a charger set to the right constant voltage for LiFePO4 — a lead-acid or AGM charger will not bring a 24V lithium bank to a proper full charge, and may sit on it at a voltage the cells don't want. The SK24V10A holds 29.2V and delivers about 10A, which is the profile SOK specifies for their 24V packs.

Key features

  • Correct LiFePO4 profile – 29.2V ±0.2V constant-voltage output, as SOK specifies for their 24V batteries.
  • 9–11A output – a steady, unhurried charge rate that is easy on the cells.
  • Universal AC input – 90–264VAC, 47–63Hz, so it runs on shore power, a generator or an inverter.
  • 280W supply rated for the long haul – ≥15,000 hours at full load, with ≥89% maximum efficiency.
  • Wide operating range – rated from −20°C to +45°C.

Compatibility

For SOK 24V LiFePO4 batteries, including the SOK 24V 100Ah and the SOK 24V 150Ah with Victron communication. For SOK 12V batteries use the SK12V20A charger instead. Not for lead-acid or AGM batteries.

Specifications

Model SK24V10A
Output voltage 29.2V ±0.2V constant voltage
Output current 9A–11A
Input voltage 90–264VAC, single phase
Input frequency 47Hz–63Hz
Rated power 280W
Maximum efficiency ≥89%
Rated life ≥15,000 hours at full load
Operating temperature −20°C to +45°C
Storage temperature −25°C to +85°C
Battery chemistry LiFePO4 only
SKU SK24V10A

Manufacturer warranty

Covered by SOK's manufacturer warranty. We handle the claim for you — contact us and we will open it with SOK.
